Roof Mounting System

Pitched Roof Solar PV Mounting Bracket System Structure

Pitched Roof Bracket Material: Aluminum Alloy Slope: Any Wind Load: 60m/s 10years, 25years Service Life Customized Design Service

Request A Quote Email Us

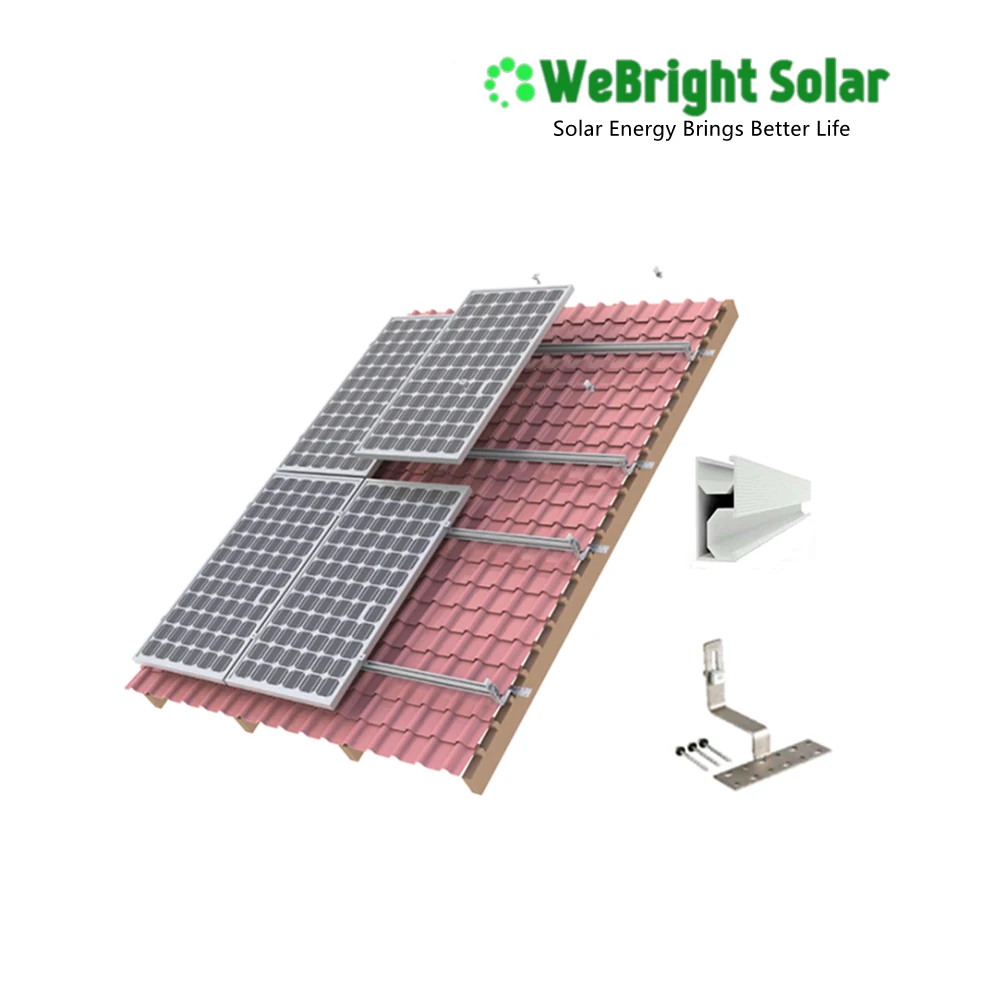

3D rendering of solar panels on a red tile roof with mounting brackets

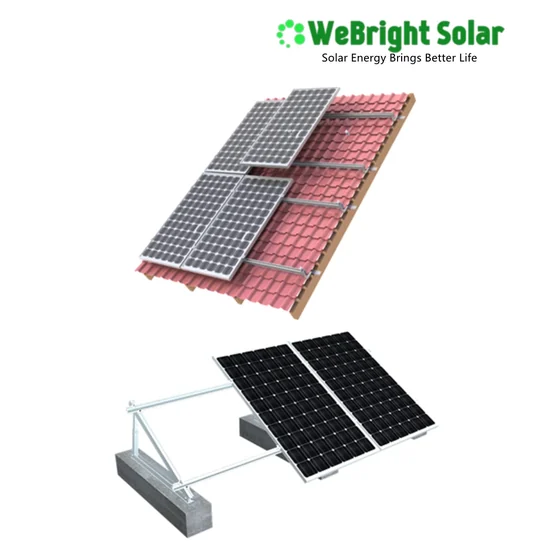

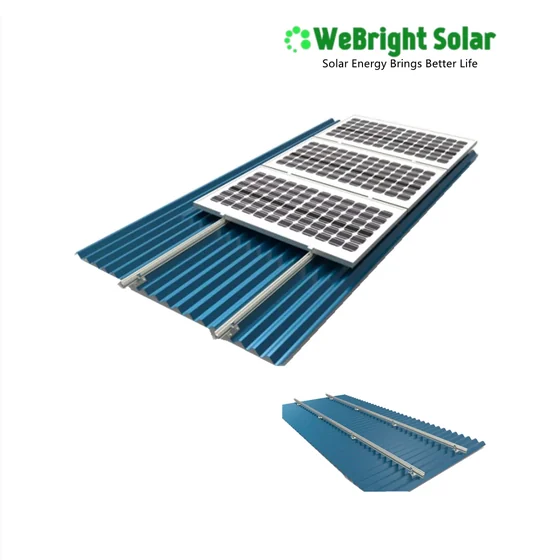

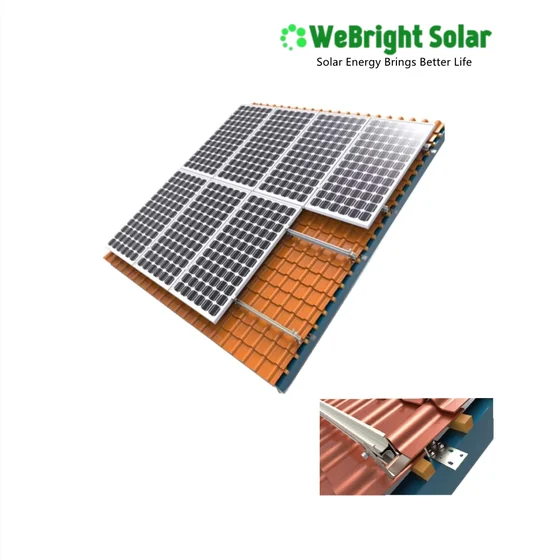

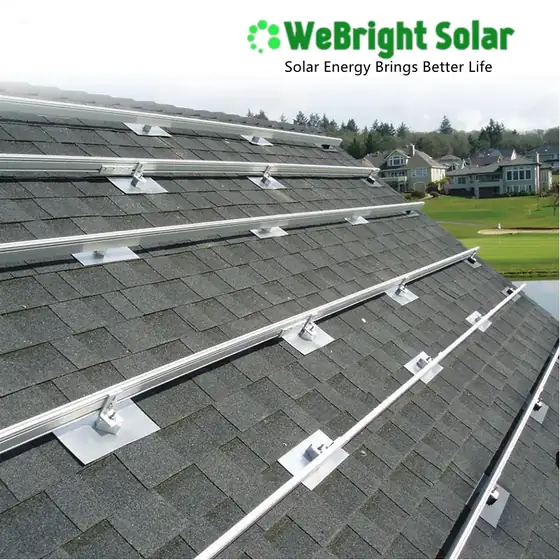

3D renderings of solar panel mounting systems for tiled roofs and concrete foundations.Diagram of a solar panel mounting system on a tiled roof with a close-up inset of the mounting clamps.3D render of solar panels mounted on a blue corrugated metal roof with mounting railsSilver metal solar panel mounting rails and flashing installed on a shingled roofDigital rendering of two solar panels standing vertically against a white background.
Product Overview

What This Product Is

A mounting system for solar panels on pitched roofs, made from AL6063-T5 aluminium alloy and SUS304 stainless steel. Designed for Z-shape installation with pre-assembled components, it ensures a firm, leak-proof fit and reduces on-site labour. The system supports both framed and frameless modules, is compatible with standard roof slopes, and is built to withstand wind speeds up to 60m/s and snow loads up to 1.2KN/m². It comes with anodized surface treatment and a 10-year warranty with a 20-year service life.

Key Benefits

What You Get

  • Z-shape design fits standard pitched roof profiles with minimal roof penetration
  • Pre-assembled parts reduce on-site installation time and labour cost
  • Anodized surface treatment provides anti-corrosion protection for long-term use
  • Leak-proof mounting brackets prevent roof damage during installation
  • Suitable for both framed and frameless solar modules installed flush to the roof
  • High wind resistance up to 60m/s and snow load capacity up to 1.2KN/m²
Who It Is For

Buyers and Sites

  • Solar installers working on pitched roof residential and commercial projects
  • EPC contractors managing rooftop solar installations with tight timelines
  • Electrical wholesalers supplying mounting hardware to regional installers
  • Homeowners and building managers seeking a durable, leak-proof mounting system
  • Importers sourcing reliable mounting structures for off-grid or hybrid systems
Application Scenarios

Where It Is Installed

  • Residential homes with pitched tile or metal roofs requiring solar panel installation
  • Commercial buildings with sloped roofs needing a low-profile, secure mounting solution
  • Projects in high-wind or snowy regions where structural integrity is critical
  • Installations where roof leakage prevention is a priority during mounting
  • Sites where fast on-site assembly and minimal labour are required
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • Designed for pitched roof installation with parallel alignment to roof slope
  • Z-shape configuration for secure attachment to roof rafters and purlins
  • Wind speed resistance up to 60m/s, snow load capacity up to 1.2KN/m²
  • Build height up to 20m above ground level
  • Anodized surface treatment for corrosion resistance and long-term durability
  • Supports both framed and frameless solar modules installed flush to the roof
  • Pre-assembled components reduce on-site assembly complexity
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Installation SitePitched roof
Installation AngleParallel to the roof
Wind Speed60m/s
Snow Load1.2KN/m²
Build Height20m
MaterialAL6063-T5 & SUS304
Surface TreatmentAnodizing
Warranty10-year
Service Life20-year
Mounting TypeZ-shape
CompatibilityFramed and frameless modules
Roof TypeTile, metal, or other pitched roof
Materials

What It Is Made Of

  • AL6063-T5 aluminium alloy for main structural components
  • SUS304 stainless steel for fasteners and corrosion-resistant parts
  • Anodized surface finish for enhanced weather and corrosion resistance
  • Pre-assembled brackets and rails with factory-tight tolerances
Manufacturing and Preparation

Before It Ships

  • Receive panel dimensions, quantity, and site conditions from the buyer
  • Design the mounting system using CAD drawings for custom configurations
  • Manufacture brackets and rails from AL6063-T5 and SUS304 materials
  • Apply anodizing surface treatment to all exposed metal parts
  • Pre-assemble components to reduce on-site work
  • Package the system with mounting hardware, bolts, and installation guide
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Custom design available with CAD drawings for specific roof slope and panel layout
  • Adjustment of mounting height and spacing based on panel dimensions
  • Modification of Z-shape configuration for non-standard roof profiles
  • Option to include additional anti-leak sealing components
  • Adjustment of bolt and fastener type for different roof materials
Comparison

How It Compares With the Alternatives

Flat roof mounting systemDesigned for slope-specific attachment, not suitable for flat roofs
Ground mounting systemFixed to roof structure, not installed on soil or cement ground
Standard bolt-on bracketsPre-assembled and leak-proof, reduces on-site work and risk of roof damage
Generic mounting kitsEngineered for pitched roofs with Z-shape design, not universal for all roof types
Use Guide

Getting It Working on Site

1

Provide panel dimensions, quantity, and roof type before ordering

2

Ensure roof structure can support the mounting system and panel weight

3

Install brackets with proper spacing to match panel layout and roof slope

4

Use the provided sealing components to prevent water ingress at penetration points

5

Tighten bolts to recommended torque to maintain structural integrity

6

Inspect the system after high wind or snow events for any displacement

Related Products

Others in Roof Mounting System

3D rendering of solar panel mounting structure with blue bases and silver frames
Roof Mounting System

Flat Roof Solar PV Mounting System Structure

Flat Roof Bracket/Ground Bracket Material: Aluminum Alloy/ PosMAC Slope: Any Wind Load: 40-60m/s 10years, 25ye

View product →
FAQ

Questions About the Pitched Roof Solar PV Mounting Bracket System Structure

What materials are used in the mounting brackets?

The system uses AL6063-T5 aluminium alloy and SUS304 stainless steel for durability and corrosion resistance.

Can this system be used on metal or tile roofs?

Yes, the Z-shape design fits both metal and tile pitched roofs, with leak-proof installation features.

Is the system pre-assembled?

Yes, the brackets and rails are pre-assembled to reduce on-site work and ensure correct alignment.

What is the warranty and service life?

The system has a 10-year warranty and a 20-year service life, with anodized surface treatment for long-term protection.

Can I get a custom design?

Yes, customized designs are available with CAD drawings based on your roof profile and panel layout.

Does it prevent roof leaks?

Yes, the mounting brackets are designed to fit under roofing and prevent water ingress during installation.

How is the system packed for shipping?

The system is packed in wooden boxes for export, with pre-assembled components and hardware included.
