Flat Roof Solar PV Mounting System Structure

Name: Flat Roof Solar PV Mounting System Structure
Brand: WeBright Solar

Flat Roof Bracket/Ground Bracket Material: Aluminum Alloy/ PosMAC Slope: Any Wind Load: 40-60m/s 10years, 25years Service Life Customized Design Service

Request A Quote Email Us

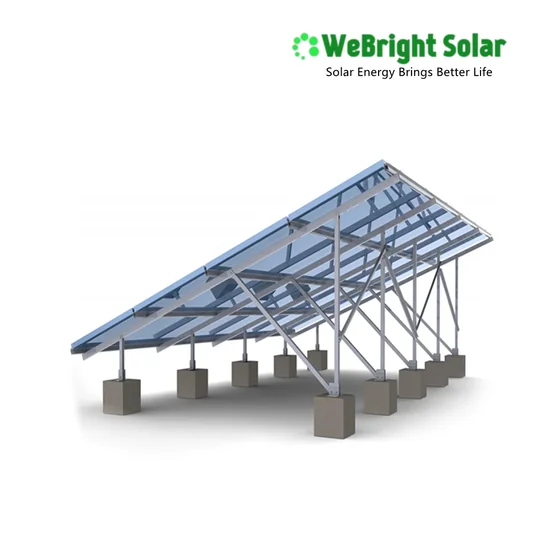

3D rendering of solar panel mounting structure with blue bases and silver frames

Five men installing solar panels onto a metal mounting frame outdoors.

Digital rendering of two solar panels standing vertically against a white background.

Product Overview

What This Product Is

A mounting structure for solar panels on flat roofs or ground sites, made from aluminum alloy, SUS304, or PosMAC material. It is designed to be installed without roof penetrations, preserving the waterproof layer. The system supports adjustable tilt angles and is suitable for commercial and residential solar installations. It is pre-engineered for wind and snow load resistance, with a 10-year warranty and 20-year service life. The structure is easy to assemble and reduces labor costs.

Key Benefits

What You Get

Installed without roof penetrations, preserving waterproof integrity
Adjustable tilt angle to match site-specific solar exposure
Lightweight and corrosion-resistant materials for long-term durability

Designed for wind speeds up to 50m/s and snow loads up to 1.2KN/m²
Reduces labor cost with simple, tool-free assembly
Compatible with standard framed solar panels without modifications

Who It Is For

Buyers and Sites

Solar installers working on flat roof or ground-mounted projects
EPC contractors managing rooftop solar without structural modifications
Building owners who want to avoid roof leaks from penetrations
Importers supplying mounting systems to off-grid or unstable-grid markets
Residential and commercial developers requiring fast, reliable mounting

Application Scenarios

Where It Is Installed

Commercial buildings with flat roofs needing solar without roof damage
Residential homes with flat rooftops requiring a non-penetrating mounting solution
Ground-mounted solar systems in areas with high wind or snow load
Projects where rooftop waterproofing must remain intact after installation
Installations requiring quick deployment with minimal on-site labor

Problems It Solves

What This Removes From the Job

Roof leaks caused by penetrations during solar panel installation
Structural damage to flat roofs from improper mounting hardware
Inconsistent tilt angles leading to suboptimal solar yield
Lack of compatibility between mounting systems and panel frames
High labor cost from complex on-site assembly and adjustments

Technical Features

How It Is Built

Flat roof or ground-mounted installation with no roof penetrations
Adjustable tilt angle to suit site-specific solar exposure
Wind speed resistance up to 50m/s, snow load up to 1.2KN/m²
Build height under 20 meters for safety and stability

Material options: AL6063-T5, SUS304, or PosMAC for corrosion resistance
Surface treatment: anodizing or magnesium aluminum alloy coating (275g/m² double-sided)
Rail mounting system compatible with standard framed solar modules

Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Installation Site	Flat roof or ground
Tilt Angle	Adjustable, any angle
Wind Speed	Up to 50m/s
Snow Load	Up to 1.2KN/m²
Build Height	Under 20m
Material	AL6063-T5, SUS304, or PosMAC
Surface Treatment	Anodizing or magnesium aluminum alloy coating 275g/m² double-sided
Warranty	10-year
Service Life	20-year

Materials

What It Is Made Of

Aluminum alloy AL6063-T5 for lightweight strength
Stainless steel SUS304 for high corrosion resistance
PosMAC material for enhanced durability and weather resistance
Anodized or double-sided magnesium aluminum alloy coated surface
Standard rail system compatible with framed solar modules

Manufacturing and Preparation

Before It Ships

Receive panel dimensions, quantity, and site requirements
Design the mounting structure using CAD drawings for custom fit
Select material and surface treatment based on environmental conditions
Fabricate the structure with precision-cut rails and brackets
Assemble and inspect the system before packing for shipment
Ship the structure with all hardware and installation instructions

Quality Control

Checked Before Packing

Verify material thickness and surface coating against specification
Check rail alignment and bracket spacing for consistent panel fit
Test structural stability under simulated wind and snow load
Confirm no sharp edges or burrs that could damage cables or panels
Inspect all hardware for correct threading and fit before packing

Customisation

What Can Be Changed at Order Stage

Adjustable tilt angle based on site-specific solar exposure
Custom design with CAD drawings for flat roof, pitched roof, soil, or cement ground
Material selection between AL6063-T5, SUS304, or PosMAC

Surface treatment choice: anodizing or magnesium aluminum alloy coating
Hardware configuration tailored to panel size and quantity

Comparison

How It Compares With the Alternatives

Penetrating roof mounts	No roof damage or waterproofing compromise, but may have lower wind resistance in extreme conditions
Fixed-angle mounting	Adjustable tilt allows better solar yield, but requires more assembly steps
Ground mounts with concrete footings	Faster installation on flat roofs, but less stability in high wind if not anchored properly
Standard rail systems without adjustment	Adjustable tilt improves energy harvest, but adds complexity to the design

Use Guide

Getting It Working on Site

Provide panel dimensions, quantity, and site conditions before ordering

Ensure the mounting structure is installed on a level, stable surface

Set the tilt angle to maximize solar exposure based on latitude and season

Secure all brackets and rails before attaching solar panels

Inspect the system after installation for loose bolts or misalignment

Maintain the structure annually to check for corrosion or loosening

Others in Roof Mounting System

3D rendering of solar panels on a red tile roof with mounting brackets

Roof Mounting System

Pitched Roof Solar PV Mounting Bracket System Structure

Pitched Roof Bracket Material: Aluminum Alloy Slope: Any Wind Load: 60m/s 10years, 25years Service Life Custom

View product →

FAQ

Questions About the Flat Roof Solar PV Mounting System Structure

Can this mounting system be used on a flat roof without roof penetrations?

Yes. The system is designed for flat roofs without requiring roof penetrations, preserving the waterproof layer.

What materials are available for the mounting structure?

Available materials are aluminum alloy AL6063-T5, stainless steel SUS304, and PosMAC, each with different corrosion resistance and weight properties.

Is the structure adjustable for different tilt angles?

Yes. The mounting system supports adjustable tilt angles to match site-specific solar exposure and optimize energy production.

What is the warranty and service life?

The system comes with a 10-year warranty and a service life of 20 years under normal operating conditions.

Can the system be customized for my roof or ground site?

Yes. Custom designs are available with CAD drawings for flat roof, pitched roof, soil, or cement ground installations.

Is the structure compatible with standard framed solar panels?

Yes. The rail mounting system is compatible with standard framed solar modules without requiring modifications.

How is the system packed for shipping?

The structure is packed with all hardware and components in a way that ensures safe transport, ready for on-site assembly.
