Outdoor Solar Lighting Solutions

All-in-One Solar Street Light 40W 60W 80W IP65

1. 18V 18W to 120W Mono Solar Panel 2. High Luminous LED 3. LiFePO4 Battery Built-in 4. Intelligent Controller 5. 7 Working Modes

Request A Quote Email Us
A solar street light shown from multiple angles and mounted on a pole.

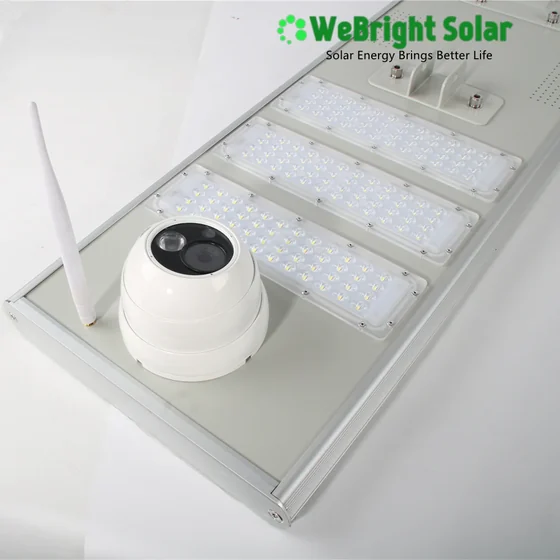

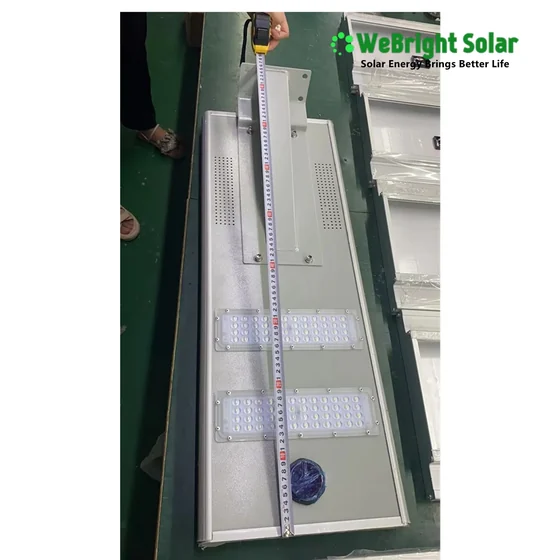

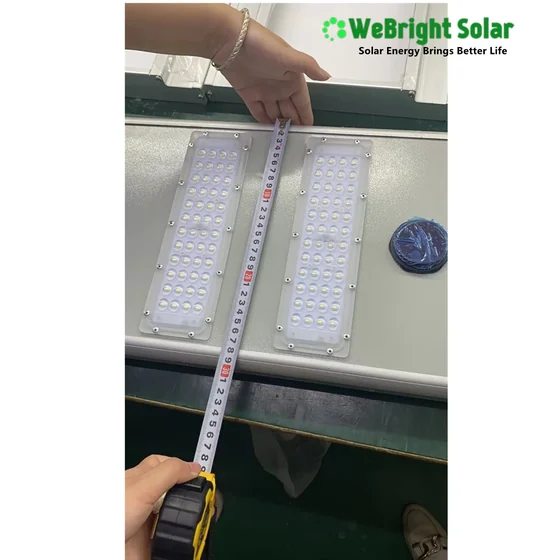

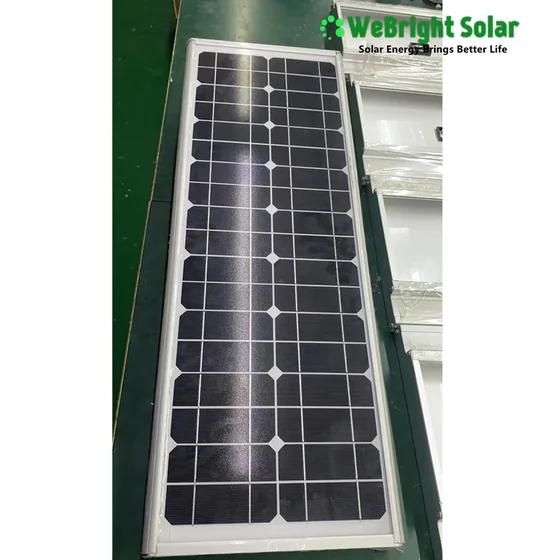

Person measuring the length of a solar LED street light fixture with a tape measure.Two rectangular LED solar light panels are being measured on a table with a tape measure.A long, narrow solar panel lying on a green floor.Rear view of a solar light fixture featuring four LED panels, a white dome camera, and an antenna.
Product Overview

What This Product Is

A complete all-in-one solar street light for outdoor use in remote areas, villages, gardens, roads and public squares. It integrates a solar panel, LiFePO4 battery, LED lamp and intelligent controller into a single unit with an aluminium alloy casing. The system charges from 18V 18W to 120W solar input and provides 10 to 12 hours of lighting after a full charge, with backup for 3 to 5 rainy days. It uses 3030 high-efficiency LED chips and features a night sensor, microwave motion sensor and remote control. The IP65 rating ensures protection against dust and water ingress.

Key Benefits

What You Get

  • Integrated solar panel, battery, controller and LED lamp in one unit for simple installation
  • Built-in LiFePO4 battery with 3-year warranty and 3 to 5 days of backup after full charge
  • 160 to 200 lumens per watt efficiency from 3030 high-efficiency LED chips
  • Night sensor and microwave motion sensor enable automatic lighting and energy saving
  • Remote control allows mode switching and system monitoring without physical access
  • IP65 rated enclosure protects against dust and water for reliable outdoor operation
Who It Is For

Buyers and Sites

  • Solar installers installing street lighting in off-grid or weak-grid areas
  • Municipalities and local governments procuring outdoor lighting for public spaces
  • Property managers and homeowners seeking maintenance-free lighting for gardens and driveways
  • EPC contractors delivering turnkey solar lighting projects
  • Importers supplying solar lighting kits to regions with unreliable power
Application Scenarios

Where It Is Installed

  • Roads and pathways in remote villages with no grid access
  • Public squares and parks needing automatic lighting without wiring
  • Gardens and private driveways requiring low-maintenance outdoor illumination
  • Campus and industrial site perimeters with limited electrical infrastructure
  • Temporary lighting for construction sites or event spaces without power supply
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • Integrated solar panel from 18V 18W to 120W with poly crystalline cell type
  • Built-in LiFePO4 battery with 12.8V nominal voltage and capacities from 16Ah to 80Ah
  • 3030 high-efficiency LED chips with 160 to 200 lumens per watt output
  • Dual sensor system: light detector and microwave motion sensor for automatic operation
  • Remote control for switching between 7 working modes including full on, dim on, motion on
  • IP65 rated aluminium alloy casing for dust and water resistance
  • Charging time of 6 hours under effective sunlight, discharging for 10 to 12 hours
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Model NoWS-SL-30W, WS-SL-60W, WS-SL-80W, WS-SL-100W, WS-SL-120W
Solar Panel18V 45W Poly, 18V 65W, 18V 75W, 18V 120W, 18V 150W
Battery Capacity12.8V 16Ah LiFePO4, 12.8V 35Ah LiFePO4, 12.8V 50Ah LiFePO4, 12.8V 65Ah LiFePO4, 12.8V 80Ah LiFePO4
Lamp Size880*296*43 mm, 1130*296*43 mm, 1260*355*43 mm, 1460*398*43 mm, 1460*398*43 mm
LED Chips60pcs * 3030, 90pcs * 3030, 120pcs * 3030, 150pcs * 3030, 150pcs * 3030
Lum/W160-200lm/W
Lighting ModeLight detector + PIR motion detector
IP ClassIP65
Installation Height5-6M
Charging Time6H under effective sunlight
Discharging Time10-12H / 3-5 cloudy days
Warranty3 years
Configuration

What Is in the Shipment

The packing list follows this table item by item.

Model No.WS-SL-30WWS-SL-60WWS-SL-80WWS-SL-100WWS-SL-120W
Solar Panel18V/45W Poly18V/65W18V/75W18V/120W18V/150W
Battery Capacity12.8V 16Ah LiFePO412.8V 35Ah LiFePO412.8V 50Ah LiFePO412.8V 65Ah LiFePO412.8V 80Ah LiFePO4
Lamp Size (mm)880*296*431130*296*431260*355*431460*398*431460*398*43
LED Chips60pcs * 303090pcs * 3030120pcs * 3030150pcs * 3030150pcs * 3030
Lum/W160-200lum160-200lum160-200lum160-200lum160-200lum
Lighting ModeLight detector+ PIR motion detectorLight detector+ PIR motion detectorLight detector+ PIR motion detectorLight detector+ PIR motion detectorLight detector+ PIR motion detector
IP ClassIP65IP65IP65IP65IP65
Installation Height5-6M5-6M5-6M5-6M5-6M
Charging Time/ Effective Sunligh6H6H6H6H6H
Discharging10-12H/3-5 cloudy days10-12H/3-5 cloudy days10-12H/3-5 cloudy days10-12H/3-5 cloudy days10-12H/3-5 cloudy days
Materials

What It Is Made Of

  • Polycrystalline silicon solar panel with 18V output
  • LiFePO4 battery with 12.8V nominal voltage
  • Aluminium alloy casing for corrosion resistance and heat dissipation
  • 3030 high-efficiency LED chips with high luminous efficacy
  • Integrated controller with dual sensor input for automatic operation
Manufacturing and Preparation

Before It Ships

  • Select model based on required lighting output and installation height
  • Confirm solar panel size and battery capacity for local sunlight conditions
  • Assemble the unit with mounting bracket and secure to pole or wall
  • Install at 5 to 6 meters height to ensure even light distribution
  • Test sensor operation and remote control function after installation
  • Verify battery charge status and lighting duration under full sun
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery capacity adjusted between 16Ah and 80Ah based on backup needs
  • Solar panel size selected from 18V 45W to 18V 150W depending on site sun exposure
  • Working modes configured via remote control for different lighting scenarios
  • Mounting bracket adapted for pole, wall or ground installation
  • Lamp size and LED count matched to required illumination level
Comparison

How It Compares With the Alternatives

Traditional grid-connected street lightNo need for wiring or grid access, but requires battery and solar panel for operation
Separate solar panel and battery systemSimpler installation and lower risk of mismatch, but less flexibility in component choice
LED street light with NiCd or NiMH batteryLiFePO4 battery offers longer life and better safety, but higher initial cost
Solar street light with no motion sensorMotion sensor reduces energy use and extends battery life, but adds complexity to control logic
Use Guide

Getting It Working on Site

1

Install the light at 5 to 6 meters height to cover the intended area evenly

2

Ensure the solar panel faces south with no shading during daylight hours

3

Test the motion sensor and light sensor function after first charge

4

Use remote control to select the desired working mode based on usage pattern

5

Check battery status and charging performance after 3 to 5 consecutive cloudy days

6

Clean the solar panel surface regularly to maintain charging efficiency

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Related Products

Others in Outdoor Solar Lighting Solutions

Rear view of a white solar LED street light with mounting bracket
Outdoor Solar Lighting Solutions

All-in-One Solar Street Light 100W 120W

1. 18V 18W to 120W Mono Solar Panel 2. High Luminous LED 3. LiFePO4 Battery Built-in 4. Intelligent Controller

View product →
Yellow solar generator power station with a solar panel, three light bulbs, and cables.
Solar Lighting System

10W Solar Home Light Lighting System with Lithium Battery

10W 18V High Efficiency Solar Panel 3pcs 12V 3W Bright LED Bulbs Built-in Lithium Battery(LiFePO4) 2pcs USB Ph

View product →
A solar panel kit including a rechargeable handheld light, USB cable, and AC adapter.
Solar Lighting System

8W Solar Torch Light Outdoor LED Light Torch

8W 5.5V High Efficiency Solar Panel 300M Spot LED Lighting with three levels Astigmatism LED Three levels 11Ah

View product →
White solar flood light with blue panel, black solar panel, and remote control
Solar Lighting System

16W 24W Solar Flood Light LED Lighting System

1. 8W to 48W Mono Solar Panel 2. High Luminous LED 3. LiFePO4 Battery Built-in 4. Intelligent Controller 5. 7

View product →
FAQ

Questions About the All-in-One Solar Street Light 40W 60W 80W IP65

What is the battery type in the all-in-one solar street light?

The system uses a built-in LiFePO4 battery with 12.8V nominal voltage and capacities from 16Ah to 80Ah depending on the model.

How many days of backup does the battery provide?

After a full charge, the battery supports 3 to 5 rainy days of operation without sunlight.

Can I change the working mode after installation?

Yes. The system supports 7 working modes, which can be switched using the remote control.

Is the light suitable for outdoor use in rainy or dusty areas?

Yes. The IP65 rating ensures protection against dust and water ingress, making it suitable for harsh outdoor conditions.

What is the charging time under sunlight?

The system requires 6 hours of effective sunlight to fully charge the battery.

Can the solar panel be replaced or upgraded?

The solar panel is integrated into the unit and not designed for field replacement, but different models are available with varying panel sizes.

How is the system installed?

The light is mounted on a pole, wall or ground using the provided bracket. Installation height should be between 5 and 6 meters for optimal coverage.

Request a Quote for the All-in-One Solar Street Light 40W 60W 80W IP65

Send your load list or drawing on WhatsApp or by email and an engineer will reply with pricing, the configuration and the packing details.
