Outdoor Solar Lighting Solutions

All-in-One Solar Street Light 100W 120W

Name: All-in-One Solar Street Light 100W 120W
Brand: WeBright Solar

1. 18V 18W to 120W Mono Solar Panel 2. High Luminous LED 3. LiFePO4 Battery Built-in 4. Intelligent Controller 5. 7 Working Modes

Request A Quote Email Us

Rear view of a white solar LED street light with mounting bracket

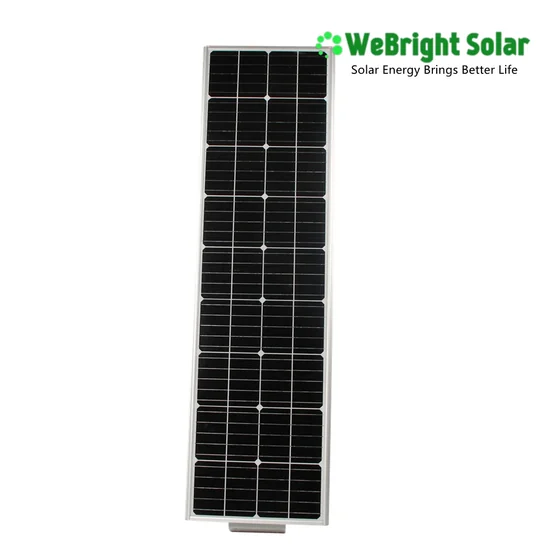

Vertical solar panel with white frame on white background

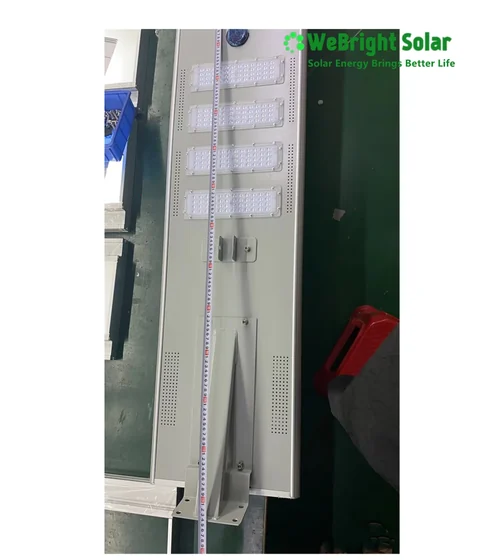

Back of a solar street light fixture with LED modules and a measuring tape.

A long, narrow solar panel lying on a green floor.

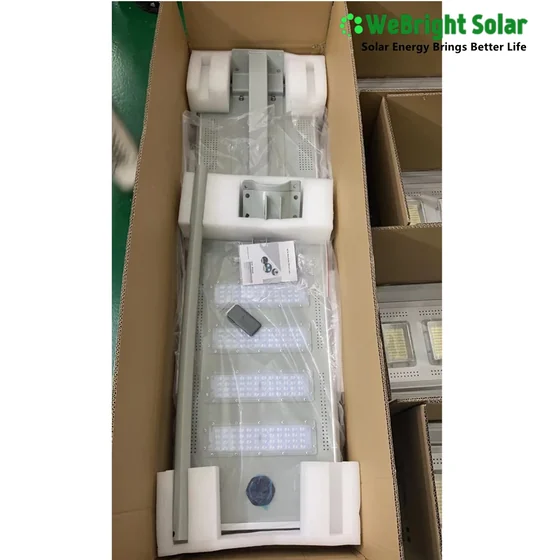

LED solar street light fixture packed in a cardboard box with styrofoam inserts.

Rear view of a solar light fixture featuring four LED panels, a white dome camera, and an antenna.

A solar street light shown from multiple angles and mounted on a pole.

Product Overview

What This Product Is

A complete solar street light system with integrated solar panel, LiFePO4 battery, controller and 100W or 120W LED lighting in a single unit. It charges from an 18V 120W or 150W solar panel and provides 10 to 12 hours of illumination after a full charge, with backup for 3 to 5 rainy days. The unit includes a night sensor, microwave motion sensor and remote control, and is designed for easy installation in gardens, roads, squares and remote areas without grid access.

Key Benefits

What You Get

Integrated solar panel, battery and controller eliminate the need to source and match separate components
Built-in LiFePO4 battery provides stable power and long cycle life with 3-year warranty
10 to 12 hours of lighting after full charge, with 3 to 5 days of backup during cloudy weather

Night sensor and microwave motion sensor reduce energy use by activating only when needed
Remote control allows mode switching and system monitoring without physical access
Aluminum alloy casing provides durability and weather resistance with IP65 rating

Who It Is For

Buyers and Sites

Solar installers deploying lighting in off-grid or weak-grid areas
Municipalities and local governments managing public lighting without grid access
Property managers and homeowners installing outdoor lighting without electrical supply
EPC contractors delivering turnkey solar lighting projects
Importers supplying solar street lights to regions with unreliable power

Application Scenarios

Where It Is Installed

Roads and pathways in remote villages with no grid connection
Public squares and parks needing low-maintenance outdoor lighting
Gardens and private driveways where electrical wiring is impractical
Temporary or seasonal lighting installations without permanent infrastructure
Off-grid community projects requiring reliable, solar-powered illumination

Problems It Solves

What This Removes From the Job

Separate solar panel, battery, controller and light units that do not match in voltage or capacity
Missing or mismatched wiring and connectors that delay installation
Battery degradation from poor charge control or deep discharge
Lack of motion sensing or remote control leading to unnecessary energy use
Installation complexity due to multiple components and mounting points

Technical Features

How It Is Built

Integrated solar panel with 18V 120W or 150W output
Built-in 12.8V 65Ah or 80Ah LiFePO4 battery with 3-year warranty
150pcs of 3030 Bridgelux high-efficiency LED chips with 160-200LM/W output
Night sensor and microwave motion sensor for automatic activation

Remote control for switching between 7 working modes
IP65 rated aluminum alloy casing for dust and water resistance
Charging time of 6 hours under effective sunlight, discharging for 10-12 hours

Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Model No	WS-SL-100W / WS-SL-120W
Solar Panel	18V 120W or 150W poly
Battery	12.8V 65Ah or 80Ah LiFePO4
LED Chips	150pcs * 3030
Lumens per Watt	160-200LM/W
Lighting Mode	Night sensor + PIR motion detector
IP Rating	IP65
Installation Height	5-6M
Charging Time	6H under effective sunlight
Discharging Time	10-12H / 3-5 cloudy days
Working Modes	7 modes available via remote control
Lamp Size	146039843 mm

Configuration

What Is in the Shipment

The packing list follows this table item by item.

Model No.	WS-SL-30W	WS-SL-60W	WS-SL-80W	WS-SL-100W	WS-SL-120W
Solar Panel	18V/45W Poly	18V/65W	18V/75W	18V/120W	18V/150W
Battery Capacity	12.8V 16Ah LiFePO4	12.8V 35Ah LiFePO4	12.8V 50Ah LiFePO4	12.8V 65Ah LiFePO4	12.8V 80Ah LiFePO4
Lamp Size (mm)	88029643	113029643	126035543	146039843	146039843
LED Chips	60pcs * 3030	90pcs * 3030	120pcs * 3030	150pcs * 3030	150pcs * 3030
Lum/W	160-200lum	160-200lum	160-200lum	160-200lum	160-200lum
Lighting Mode	Light detector+ PIR motion detector	Light detector+ PIR motion detector	Light detector+ PIR motion detector	Light detector+ PIR motion detector	Light detector+ PIR motion detector
IP Class	IP65	IP65	IP65	IP65	IP65
Installation Height	5-6M	5-6M	5-6M	5-6M	5-6M
Charging Time/ Effective Sunligh	6H	6H	6H	6H	6H
Discharging	10-12H/3-5 cloudy days	10-12H/3-5 cloudy days	10-12H/3-5 cloudy days	10-12H/3-5 cloudy days	10-12H/3-5 cloudy days

Materials

What It Is Made Of

Monocrystalline or polycrystalline silicon solar panel, 18V 120W or 150W
LiFePO4 battery cells with 12.8V nominal voltage
3030 Bridgelux high-efficiency LED chips in aluminum alloy housing
Anodized aluminum alloy casing for corrosion resistance
IP65 rated sealed enclosure with weatherproof connectors

Manufacturing and Preparation

Before It Ships

Select model based on required brightness and battery capacity
Verify solar panel size and charging conditions at the installation site
Mount the unit at 5-6 meters height using the included mounting bracket
Ensure the solar panel faces south with no shading during peak hours
Test the light mode and sensor function using the remote control
Pack the unit in a wooden box for export with all components secured

Quality Control

Checked Before Packing

Battery capacity verified against 65Ah or 80Ah specification before packing
LED output checked for uniformity and brightness across all 150 chips
Solar panel voltage and current tested under 18V load before shipment
IP65 rating confirmed with water and dust resistance test on sample units
Remote control and sensor functions tested in all 7 modes before packing

Customisation

What Can Be Changed at Order Stage

Battery capacity changed between 65Ah and 80Ah based on runtime needs
Solar panel size adjusted between 120W and 150W for different sunlight conditions
Working modes selected or reprogrammed via remote control at order stage

Mounting bracket adapted for pole, wall or ground installation
Lamp size and LED count adjusted for different light coverage requirements

Comparison

How It Compares With the Alternatives

Traditional grid-connected street light	No need for electrical wiring or grid connection, but requires battery and solar panel integration
Separate solar panel and light unit	Simpler installation and fewer connection points, but less flexibility in component selection
LED street light with lead-acid battery	LiFePO4 battery offers longer cycle life and better safety, but higher initial cost
