Design For Manufacturability
DFM: the 3D model is checked and studied before mold construction. TJ-Teck provides a DFM report to discuss the technical details below with the customer.
The live DFM page lists the discussion items in the report. The list is kept intact. No extra inspection metrics are added.
- De-molding Direction
- Inserts Design
- Parting Line
- Slide Design & Steel Line
- Draft Angle Analysis
- Lifter Design & Steel Line

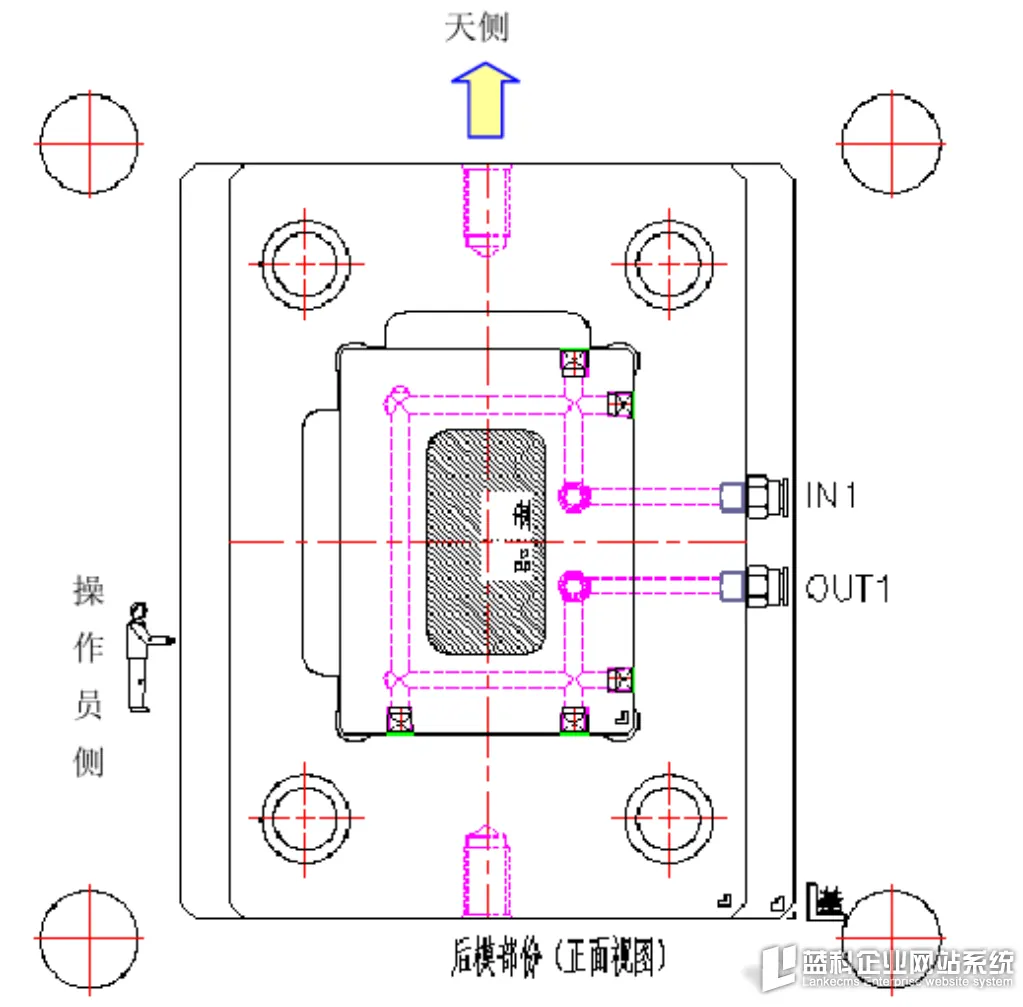

- Mold Layout
- Sharp Steel
- Filling System
- Wall thickness
- Gate Define
- Ejection system
- Undercut and Proposal
- Markings and Graining
