Model 550 Packing Machine with computer and printer
The Model 550 Packing Machine converts pre-opened PE bags on a roll into sealed, labelled bags at speeds up to 1800 bags per hour. It is designed for use in automated bagging lines where consistent, high-speed packaging is needed. The machine integrates a touch screen control system, label printer, and air pump to handle bag width from 200 mm to 550 mm and length from 250 mm to 800 mm. It supports continuous operation with minimal operator intervention.
- Automates bag sealing and labelling with a single operator, reducing labour costs
- Operates at up to 1800 bags per hour, matching high-volume e-commerce and fulfilment demands
- Touch screen interface allows quick setup and real-time monitoring of production
- Integrated label printer supports variable label sizes up to 100 mm wide with no length limit
- Static elimination system prevents material jams and ensures smooth operation
- Compact footprint and low air consumption (0.05 m³/min) reduce site infrastructure needs
Why Buyers Choose It
- Manual bagging is slow and inconsistent, leading to labour bottlenecks during peak periods
- Lack of labelling capability on pre-opened bags makes traceability difficult for compliance
- Static electricity causes bags to stick together or misfeed, disrupting the line
- Existing bagging lines lack integration between sealing and labelling steps
- Operators must be trained repeatedly due to complex or non-intuitive machine controls
Who Runs This Machine
- E-commerce fulfilment centres running high-volume order processing
- 3PLs and logistics providers adding automated bagging to their service offerings
- Packaging converters supplying pre-opened bags on a roll to automated systems
- Consumer goods and pet product manufacturers needing labelled, sealed packaging
Where This Machine Is Used
- E-commerce fulfilment centres automating the packing of small to medium-sized items into pre-opened bags
- 3PL operators upgrading from manual bagging to a semi-automated line with consistent output
- Packers using pre-opened PE bags on a roll who need to add labelling and sealing in one step
- Manufacturers of consumer goods or pet products requiring traceable packaging with batch codes
- Facilities replacing manual bagging stations with a machine that runs continuously with minimal supervision
Features And Specifications
Technical features
- Touch screen control system for setting bag length, label position, and machine speed
- Integrated label printer capable of printing labels up to 100 mm wide with no length limit
- Static elimination system to prevent material misfeeds and improve reliability
- Air pump included as auxiliary equipment for pneumatic functions
- Double-track membrane conveyor system for stable bag transport and firm sealing
- Anti-pinch, anti-scalding, and anti-misoperation safety features for operator protection
- Sealing and cutting units operate in sequence with precise timing for consistent results
Specifications
| Machine model | Model 550 |
|---|---|
| Max speed | 1800 bags/hour |
| Machine dimensions | L:1680 x W:950 x H:1450 mm |
| Machine weight | 200 kg |
| Power supply | 1.5 kW, 220 V |
| Air consumption | 0.05 m³/min |
| Screen type | Touch screen |
| Label size | Max width 100 mm, length no limit |
| Bag width range | 200 mm to 550 mm |
| Bag length range | 250 mm to 800 mm |
| Auxiliary equipment | Air pump |
How The Machine Runs
Materials

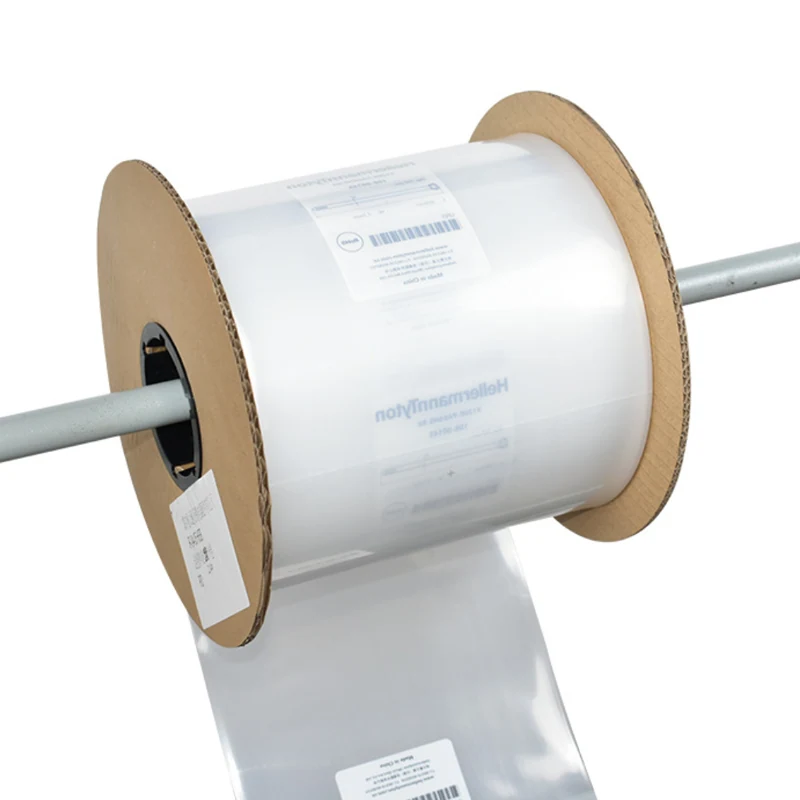

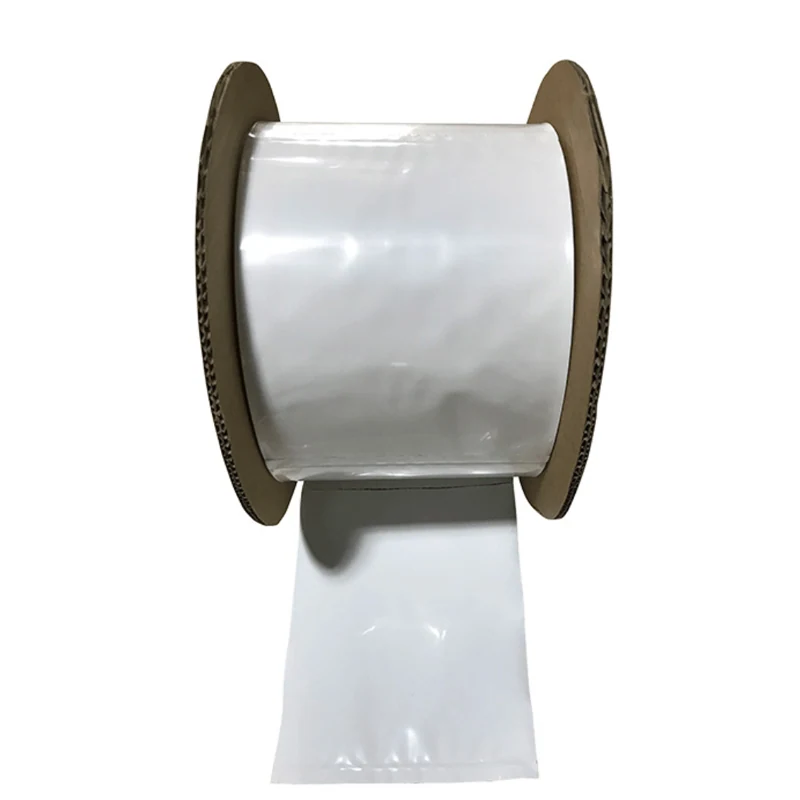

- Pre-opened PE bags on a roll
- Label stock compatible with the integrated printer
- Air supply for pneumatic components (0.05 m³/min required)
Quality Control
- Static elimination system ensures consistent bag feeding and prevents jams
- Double-track membrane conveyor maintains alignment and reduces wear
- Sealing temperature and pressure are stable across runs to prevent leaks
- Label printer is tested with sample stock before shipment to verify print clarity
- Machine is run with customer-provided bags during final testing
Customisation
- Label printer can be configured for different label formats and print speeds
- Conveyor height and output angle adjusted for integration with downstream systems
- Control panel language can be set to match operator preference
- Optional safety enclosures or guards added for high-risk environments
- Power supply can be adapted to local voltage and frequency if required
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Manual bagging with hand sealers | The Model 550 increases output from 100-200 bags/hour to 1800 bags/hour with one operator |
|---|---|
| Basic automatic baggers without printers | This model includes integrated labelling, which reduces the need for a separate printer station |
| Larger industrial autobaggers | The Model 550 has a smaller footprint and lower power requirement, suitable for smaller facilities |
Running It On Your Floor
- Ensure the air pump is connected and pressurized before starting the machine
- Load the pre-opened PE bag roll onto the unwind stand and align the web
- Set the desired bag length and label position on the touch screen
- Run a test cycle with a few bags to verify sealing, cutting, and label placement
- Adjust the sealing temperature or pressure if the seal is weak or the bag tears
- Keep the label printer head clean and replace labels when the roll is empty
Model 550 Packing Machine with computer and printer FAQ
What is the maximum bag size it can handle
The machine supports bag widths from 200 mm to 550 mm and lengths from 250 mm to 800 mm.
How much power does it require
The machine uses 1.5 kW at 220 V, standard for many industrial sites in Asia and Europe.
Does it include a label printer
Yes, the machine has an integrated label printer capable of printing labels up to 100 mm wide with no length limit.
What air pressure is needed
The machine consumes 0.05 m³/min of compressed air, supplied by the included air pump.
Can it be used with different bag materials
It is designed for pre-opened PE bags on a roll; other materials may require modifications.
Is the control panel easy to use
Yes, the touch screen interface allows quick setup and real-time monitoring with minimal training.
