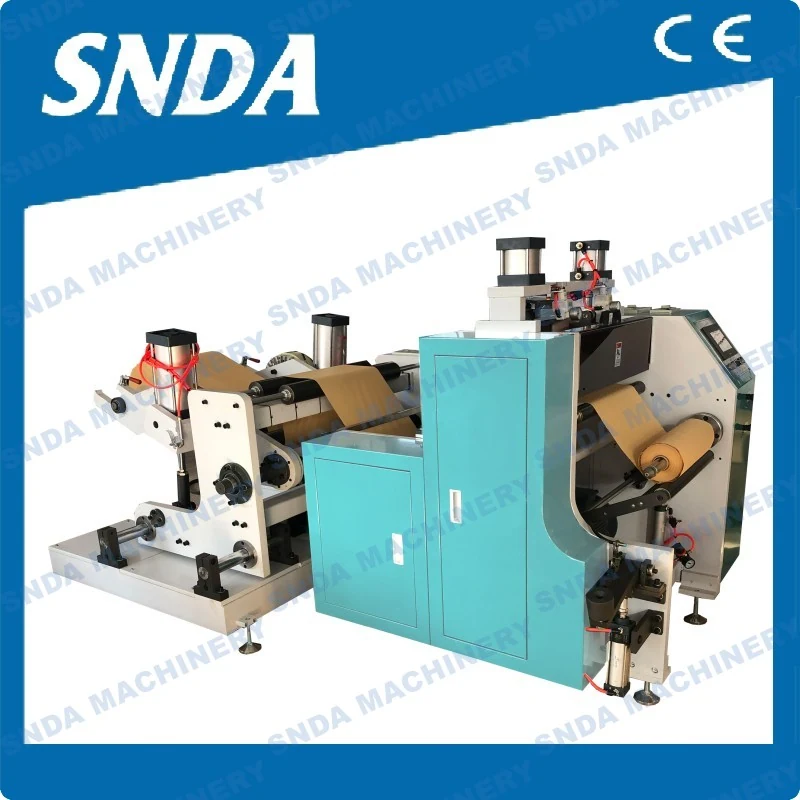

Honeycomb Paper Making Machine with web guiding
The SD-PH600 converts a reel of 70-100 gsm kraft paper into expandable honeycomb cushioning paper in a single pass. With an integrated ultrasonic web guide and automatic lifting system, the machine maintains consistent alignment during unwinding. A packaging producer can make its own honeycomb wrap instead of buying finished rolls, reducing reliance on external suppliers and avoiding plastic cushioning restrictions.
- Replaces plastic bubble wrap with a paper cushion that is recyclable and accepted by retailers restricting plastics
- Unwinding, die cutting, and rewinding happen in one process so one operator can run the line
- Automatic ultrasonic web guide keeps the web centred during high-speed operation
- Working speed is adjustable from 0 to 200 m/min so output can be matched to downstream demand
- Automatic meter counting stops the machine at the set length and keeps roll lengths consistent
Why Buyers Choose It
- Plastic cushioning is being refused by retailers and end customers in export markets
- Bought-in honeycomb paper carries a converter margin and long replenishment lead times
- Manual wrapping of fragile goods is slow and inconsistent between operators
- Roll length variation causes short rolls and customer complaints
Who Runs This Machine
- Packaging converters that already buy kraft paper in reels and want to add a cushioning product
- Paper mills and trading companies adding a value-added converting step
- Fulfilment operators packing several thousand fragile orders a day
Where This Machine Is Used

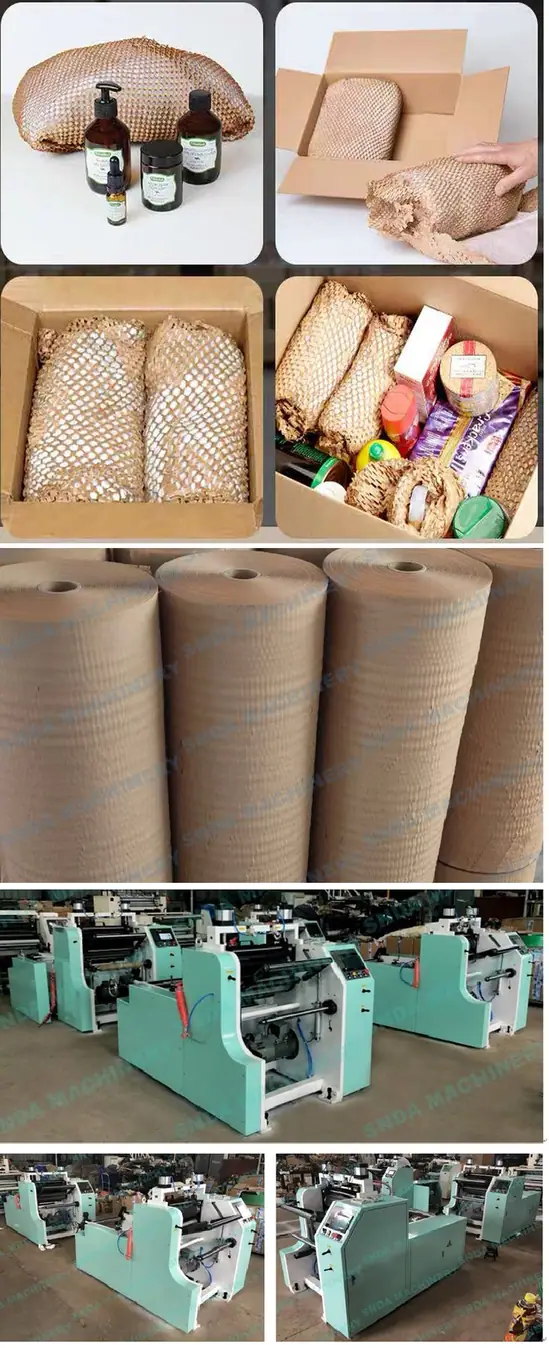

- Protective packaging producers making honeycomb wrap rolls for e-commerce fulfilment centres
- Packers protecting fruit, flowers, ceramics and glassware that scratch easily in transit
- Converters supplying honeycomb paper to furniture and appliance manufacturers
- Export packers replacing imported bubble film with a locally converted paper cushion
Features And Specifications
Technical features
- Suitable for die cutting honeycomb paper, wrapping paper, shock absorbing paper, kraft paper, and fish net paper from 70 to 100 gsm
- Unwinding, cutting, and rewinding occur in one continuous process
- Main motor driven through an inverter for stepless speed regulation
- Automatic ultrasonic web guide controller keeps the unwinding web centred
- Web tension held by magnetic powder brake and clutch
- Automatic meter counting device stops the machine when the set length is reached
- Pneumatic cylinder raises and lowers the cutting mould
- Roll to sheet cutting available as an option and can be matched with our paper wrapper
Specifications
| Machine model | SD-PH600 |
|---|---|
| Max material width | 515 mm (508 mm / 20 inch and 380 mm / 15 inch most used) |
| Machine working speed | 0-200 m/min adjustable |
| Unwinding diameter | 0-1200 mm |
| Rewinding diameter | 0-300 mm |
| Unwinding roll weight | Max 1 ton |
| Unwinding shaft | 3 inch inflatable air shaft |
| Rewinding shaft | 1 / 1.5 / 2 / 3 inch air shaft, usually 1.5 inch |
| Machine size | 2800 x 1500 x 1300 mm (L x W x H) |
| Machine weight | 1800 kg |
| Power supply | 380 V 3 phase or to customer requirement |
How The Machine Runs
Materials
- Kraft paper reels from 70 to 100 gsm
- Wrapping paper and shock absorbing paper
- Fish net paper
- Optional soft white paper backing layer for laminated honeycomb liner
Quality Control
- Web guide and magnetic powder brake keep tension stable so cell geometry stays even across the reel
- Meter counter verifies finished roll length before the roll leaves the machine
- Machines are test run with customer paper before shipment
Customisation
- Cutting mould can be made for other honeycomb cell patterns
- Power supply built to the voltage and frequency of the destination country
- Rewinding shaft supplied in 1, 1.5, 2, or 3 inch to suit your core stock
- Roll to sheet cutting unit added inline on request
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying finished honeycomb paper rolls | Converting in house removes the supplier margin but you carry the kraft reel inventory and the machine investment |
|---|---|
| Plastic bubble wrap machines | Paper honeycomb is recyclable and accepted where plastics are restricted, though it is heavier per square metre than air filled film |
| Honeycomb Paper Cutting Machine | This machine forms the honeycomb web; the cutting machine converts finished honeycomb into sheets or pads |
Running It On Your Floor
- Load a kraft reel up to 1200 mm diameter and 1 ton onto the inflatable air shaft
- Set the target roll length on the meter counter before starting the run
- Start slow and raise speed with the inverter until the web tracks steadily
- Check cell formation on the first metres before committing the reel
- Keep the cutting mould clean of paper dust to protect the cutting edge
Honeycomb Paper Making Machine with web guiding FAQ
What paper weight can the machine run
It is designed for 70 to 100 gsm kraft paper, wrapping paper, shock absorbing paper and fish net paper.
How fast does it run in production
Working speed is adjustable from 0 to 200 m/min; the practical rate depends on paper weight and how steadily the web tracks.
What power supply do you build it for
Standard is 380 V three phase, and we build to the voltage and frequency of your country on request.
What is the footprint and weight for installation planning
The machine is 2800 x 1500 x 1300 mm and weighs 1800 kg, so plan a level floor and access for a forklift.
Can it cut finished honeycomb paper into sheets
Roll to sheet cutting is an option on this machine and it can also be matched with our paper wrapper.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
Machines Often Bought With It
Honeycomb Fire Retardant Filter Paper Making Machine
The SD-PH800 converts a reel of flame retardant paper or kraft paper into honeycomb filter paper in a single pass.
