Honeycomb Paper Mailer Bag Making Machine

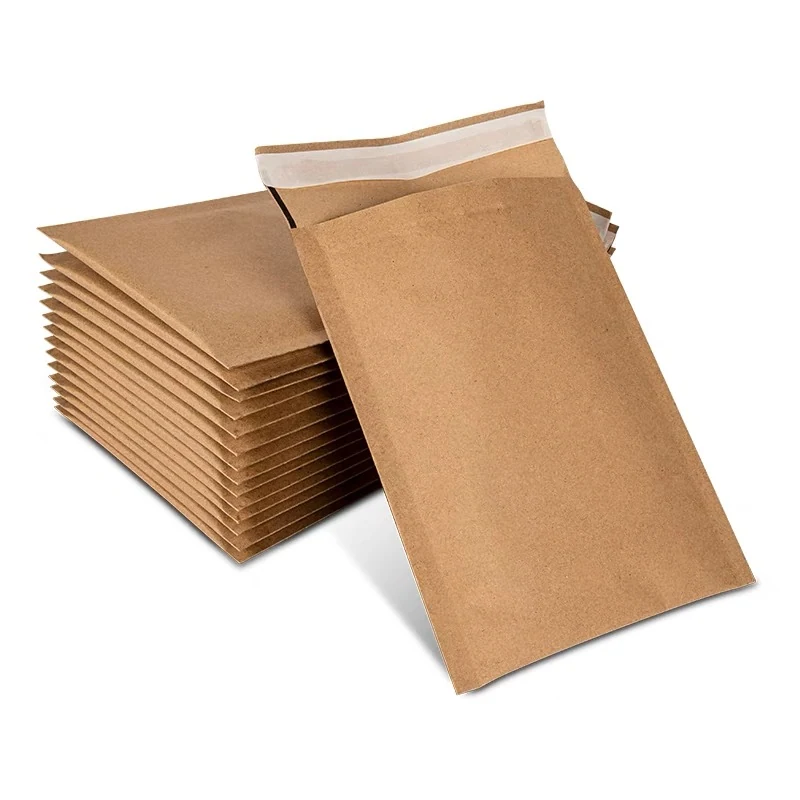

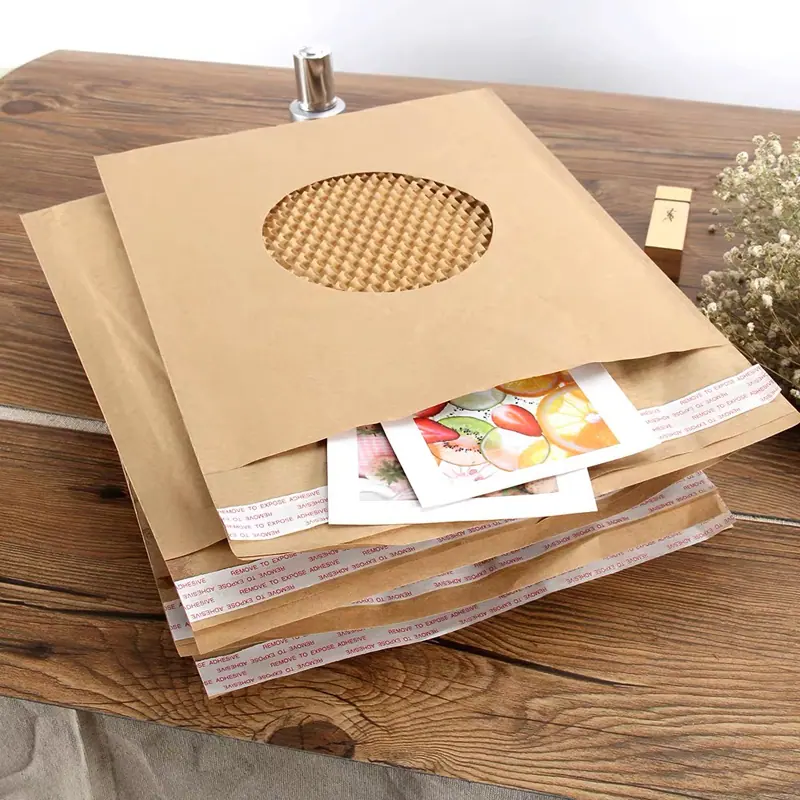

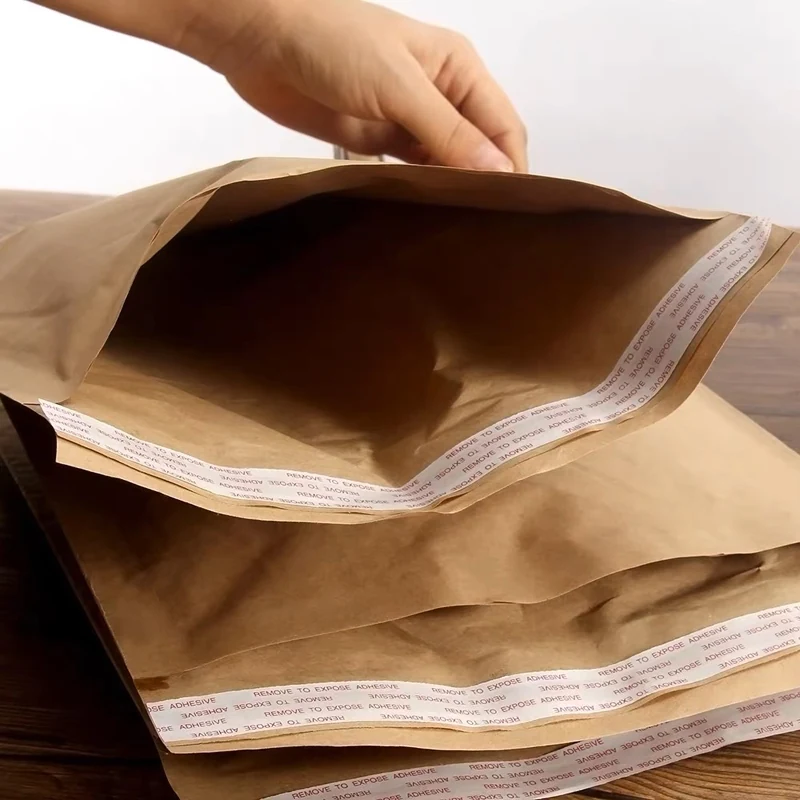

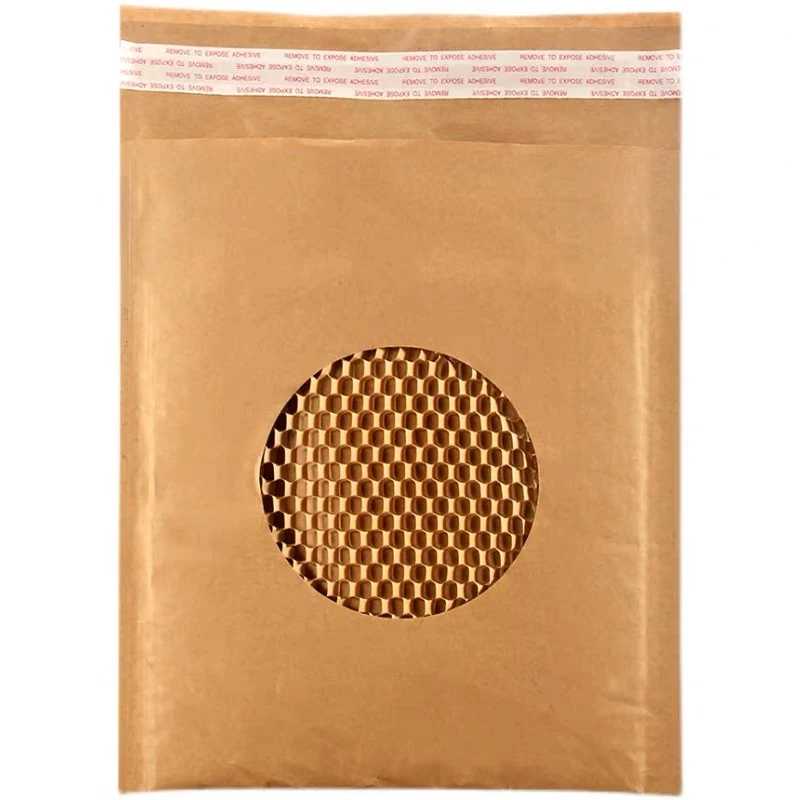

This machine Honeycomb Paper Mailer Bag Making Machine produces environmentally friendly cushion bags in a single inline process using kraft paper and pre-pressed honeycomb or bubble paper. It forms bags by bonding three layers of paper—two outer kraft layers with a middle honeycomb or bubble layer—using point glue application. The machine handles both standard bubble cushion bags and honeycomb cushion bags, with the ability to switch between configurations by changing the input materials. This allows packaging producers to make their own mailer bags on a roll instead of purchasing them, reducing reliance on external suppliers.
- Makes custom-sized cushion mailer bags in-house, reducing dependency on external bag suppliers
- Uses point glue application to bond layers, minimizing adhesive use and keeping bags lightweight
- Produces both bubble and honeycomb cushion bags by changing input materials and setup
- Adjustable line speed based on bag size—up to 80 bags per minute on two lines for small bags
- Single-pass process from unwinding to cutting ensures consistent bag dimensions and reduces manual handling
Why Buyers Choose It
- Plastic-lined mailers are being rejected by end customers in export markets due to environmental regulations
- Purchasing finished cushion mailer bags adds a supplier margin and long replenishment cycles
- Manual bagging is slow and inconsistent compared to automated roll-fed bagging systems
- Inconsistent bag size and glue application from third-party suppliers lead to packing errors
- Limited ability to customise bag size and structure when buying pre-made bags
Who Runs This Machine
- Packaging producers that already use kraft paper and want to add cushion mailer bag production
- E-commerce fulfilment centres requiring high-volume, consistent mailer bags for shipping
- Paper slitting houses or converters adding a value-added step to their existing kraft paper operations
- Bagging lines that feed into automated packaging systems and need pre-opened, roll-fed bags
Where This Machine Is Used
- Protective packaging producers converting kraft and honeycomb paper into mailer bags for e-commerce fulfilment
- 3PL operators running automated bagging lines that require consistent, pre-opened bags on a roll
- Paper converters adding value to kraft paper reels by turning them into finished cushion mailer bags
- E-commerce packers replacing plastic-lined mailers with paper-based cushion bags that are recyclable
- Export packers needing to meet retailer requirements for plastic-free packaging in Europe and North America
Features And Specifications
Technical features
- Multi-point advanced motion controller technology with computer program control from unwinding to cutting
- Capable of making both bubble and honeycomb cushion bags by changing input materials and configuration
- Point glue spraying method bonds the middle layer to the outer kraft layers at fixed intervals
- Adjustable speed based on bag size: 50 pcs/min for large bags (500mm x 350mm), 80 pcs/min for small bags (300mm x 200mm) on two lines
- Supports both single-line and double-line bag production with different maximum dimensions
- Steel machine body ensures rigidity and long-term stability under continuous operation
- Automatic web tracking and tension control for consistent bag formation across the roll
Specifications
| Max bag height | 550 mm (one line), 300 mm (double line) |
|---|---|
| Max bag width | 450 mm |
| Max unwinding width | Kraft paper: 1300 mm x 3 (for bubble bags); Kraft paper: 1300 mm x 2, Honeycomb paper: 500 mm x 4 (for honeycomb bags) |
| Max unwinding diameter | Kraft paper: 1000 mm (bubble bags); Kraft paper: 1000 mm, Honeycomb paper: 500 mm (honeycomb bags) |
| Machine working speed | 50 pcs/min (large bag), 80 pcs/min (small bag, two lines) |
| Machine weight | Not specified |
| Overall dimension | 32 x 2.3 x 2.4 m (L x W x H) |
| Power supply | 380 V 50 Hz Three Phase Five Wire |
| Power required | 65 kW |
| Machine body | Steel |
How The Machine Runs
Materials
- Kraft paper reels (70–100 gsm, 1300 mm wide)
- Pre-pressed bubble paper (for bubble cushion bags)
- Pre-pressed honeycomb paper (for honeycomb cushion bags)
- Adhesive for point glue application
- Optional soft white paper backing layer for laminated honeycomb liner
Quality Control
- Point glue application ensures consistent bonding without overuse of adhesive
- Computer-controlled motion system maintains alignment and prevents misfeeds
- Automatic cutting ensures uniform bag size and edge quality
- Machine is tested with customer-provided paper before shipment to verify performance
- Steel body maintains dimensional stability under continuous operation
Customisation
- Can be configured for single-line or double-line bag production based on bag size
- Unwinding shafts can be adapted to different roll core sizes and diameters
- Glue application pattern can be adjusted for different paper types and bag designs
- Power supply can be built to match the voltage and frequency of the destination country
- Machine body can be modified for different floor space or installation constraints
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying finished cushion mailer bags | Converting in house removes the supplier margin and allows custom bag sizes, but requires investment in machine and kraft paper inventory |
|---|---|
| Plastic-lined mailers | Paper-based bags are recyclable and accepted in markets restricting plastic, though they are less moisture-resistant |
| Manual bag making | Automated production is faster and more consistent, but requires setup and maintenance |
Running It On Your Floor
- Ensure all three paper rolls are loaded correctly on the unwinding rack with proper alignment
- Set the target bag size and speed in the control panel before starting the run
- Test the first few bags to verify glue placement, folding accuracy, and cutting quality
- Keep the glue nozzles clean to prevent clogging and ensure consistent bonding
- Adjust the tension and alignment if the web starts to drift or the bags become misshapen
Honeycomb Paper Mailer Bag Making Machine FAQ
What bag sizes can this machine make
Maximum bag height is 550 mm (single line) or 300 mm (double line); maximum width is 450 mm. Speed varies by size.
Can it make both honeycomb and bubble cushion bags
Yes, it can make both. For honeycomb bags, use two rolls of honeycomb paper and insert them between the kraft layers.
What power supply does it require
Standard is 380 V 50 Hz Three Phase Five Wire. We can build to your country’s voltage and frequency on request.
How fast does it run in production
Up to 50 bags per minute for large bags (500mm x 350mm), up to 80 bags per minute for small bags (300mm x 200mm) on two lines.
What is the machine footprint for installation
The machine is 32 x 2.3 x 2.4 m (L x W x H), so plan a level floor with access for a forklift and clearance for operation.
Do you hold quality certifications
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
Can the machine be adapted for different paper widths
Yes, the unwinding system supports up to 1300 mm for kraft paper and 500 mm for honeycomb paper, with custom shafts available.
Machines Often Bought With It

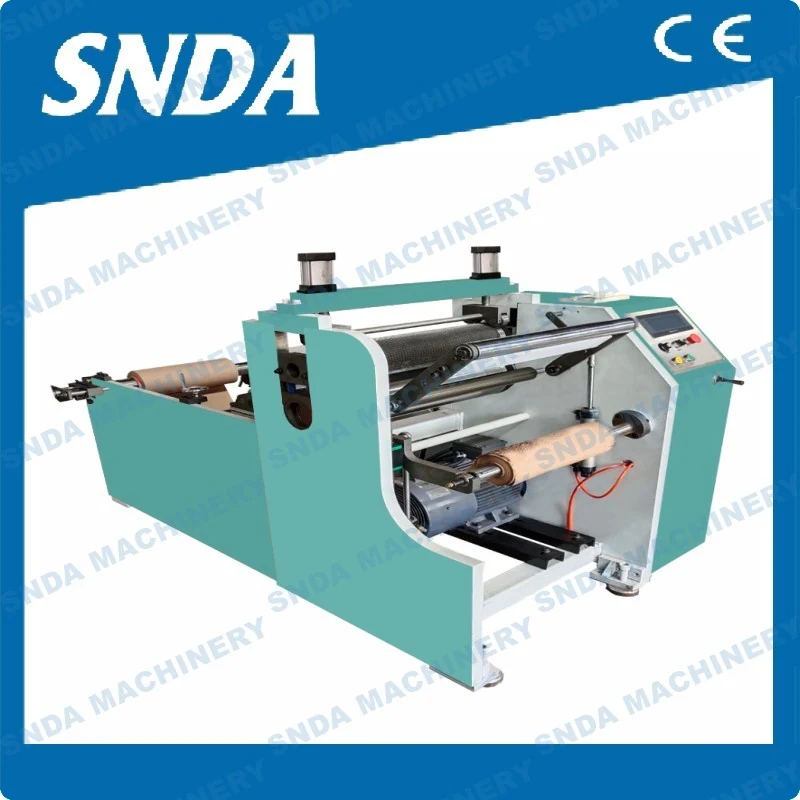

Honeycomb Fire Retardant Filter Paper Making Machine
