double delay time relay
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Relays
- Series
- Time Relay
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE

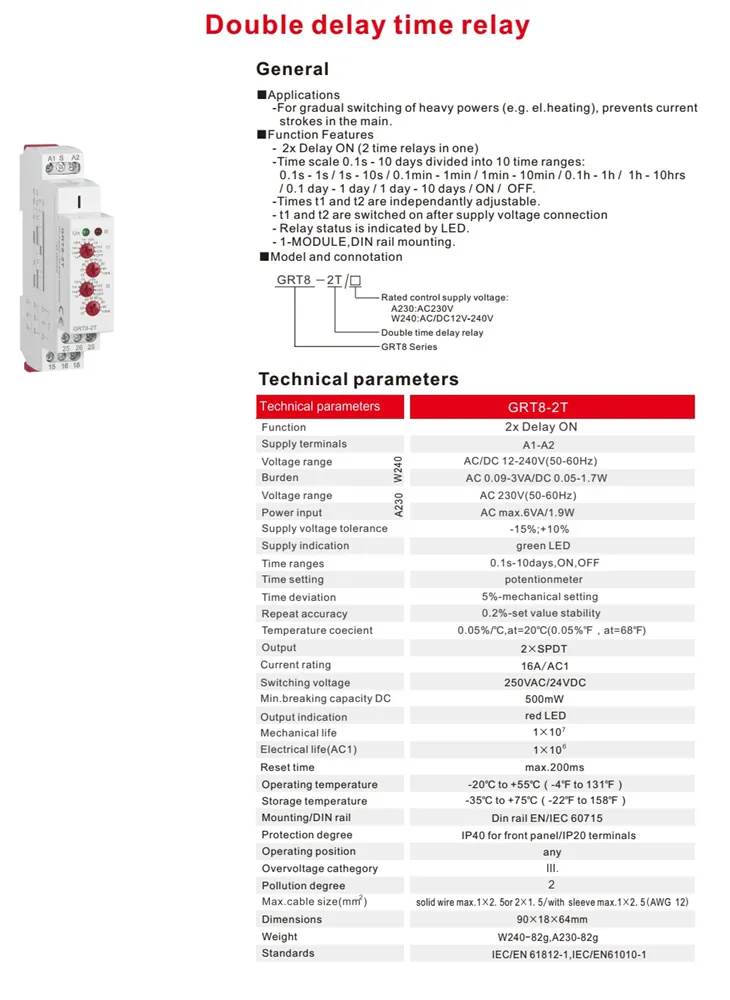

Technical data
Applications
-For gradual switching of heavy powers (e.g. el.heating), prevents current
strokes in the main.
Function Features
- 2x Delay ON (2 time relays in one)
-Time scale 0.1s - 10 days divided into 10 time ranges:
0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1h - 1h / 1h - 10hrs
/ 0.1 day - 1 day / 1 day - 10 days / ON / OFF.
-Times t1 and t2 are independantly adjustable.
- t1 and t2 are switched on after supply voltage connection
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical Date
Electrical features
| Model NO | GRT8-2T |
| Function | 2 Delay ON Time Relay |
| Voltage Range | AC230V (A230) OR AC/DC12V-240V (W240) |
| Output | 2 SPDT |
| Supply Terminals | A1-A2 |
| Time Range | 0.1s-10days,ON,OFF |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | IEC6947-5-1 EN61812-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
