Asymmetric cycler
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Relays
- Series
- Time Relay
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE

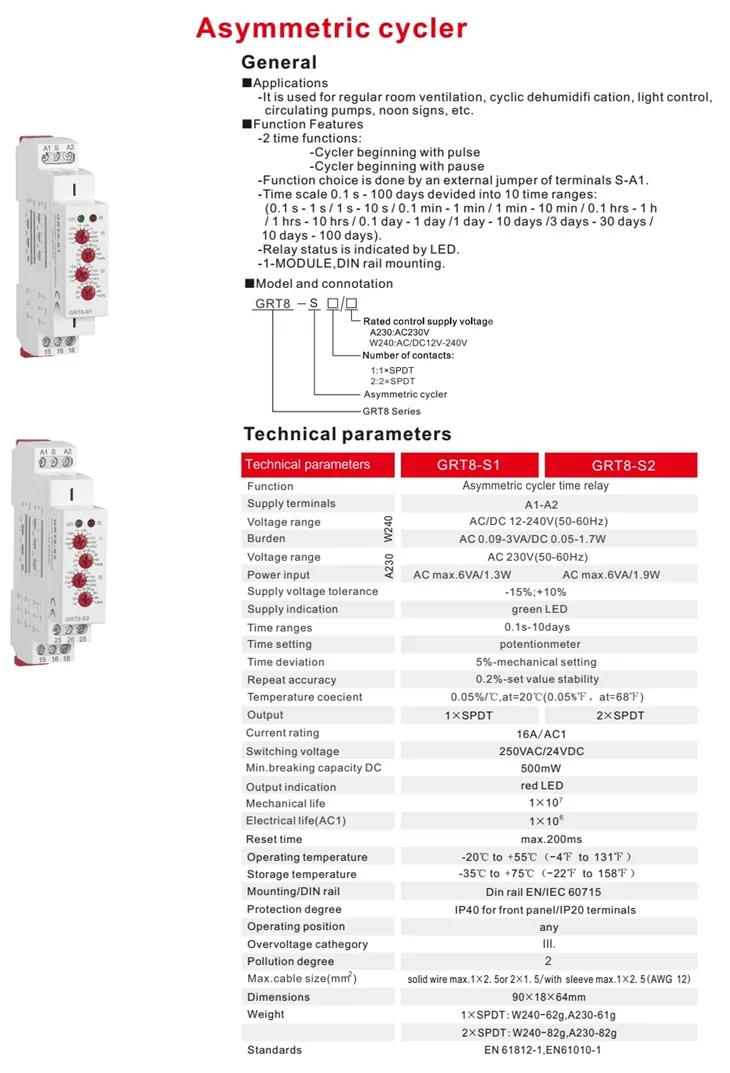

Technical data
Applications
-It is used for regular room ventilation, cyclic dehumidifi cation, light control,
circulating pumps, noon signs, etc.

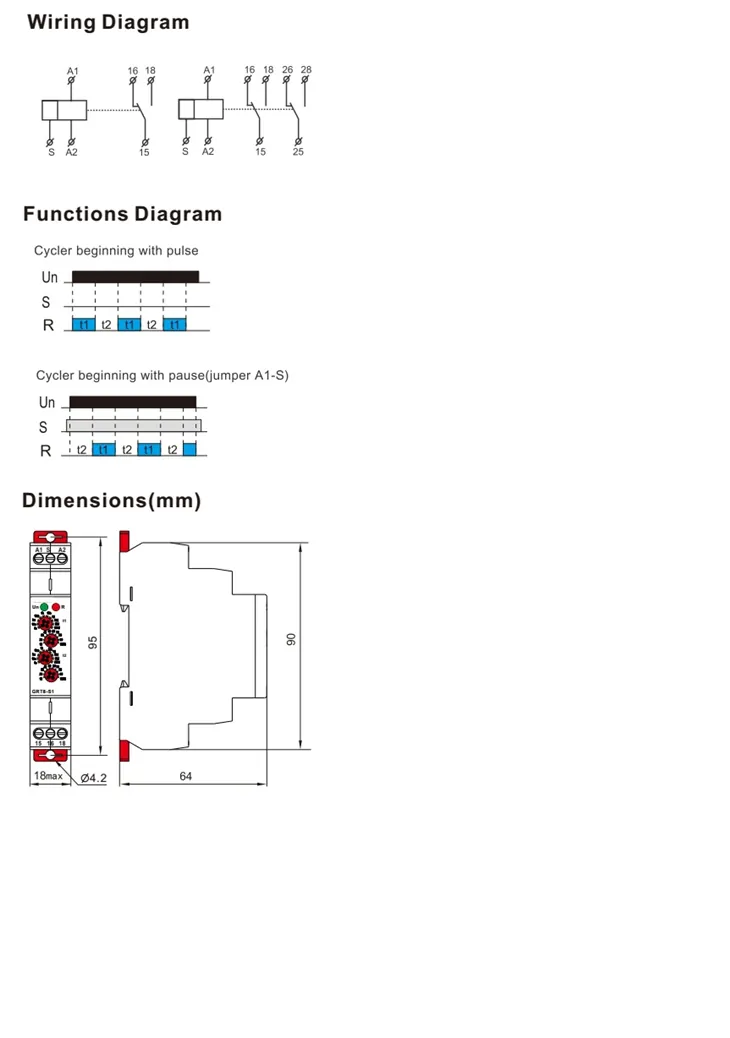

Function Features
-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper of terminals S-A1.
-Time scale 0.1 s - 100 days devided into 10 time ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h
/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days
10 days - 100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
Technical Data
Electrical features
| Model NO | GRT8-S1 OR GRT8-S2 |
| Function | Asymmetric Cycler Timer Relay |
| Voltage Range | AC230V (A230) OR AC/DC12V-240V (W240) |
| Output | 1 SPDT OR 2 SPDT |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
