MES Current Transformers
MES Europe Hottest CT
MES Current Transformer
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- MES Europe Hottest CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data
$1.2/per CA-MES62/30 100/5A 1cl.hottest model in Europe,South Africa,Russia Market Samples free!

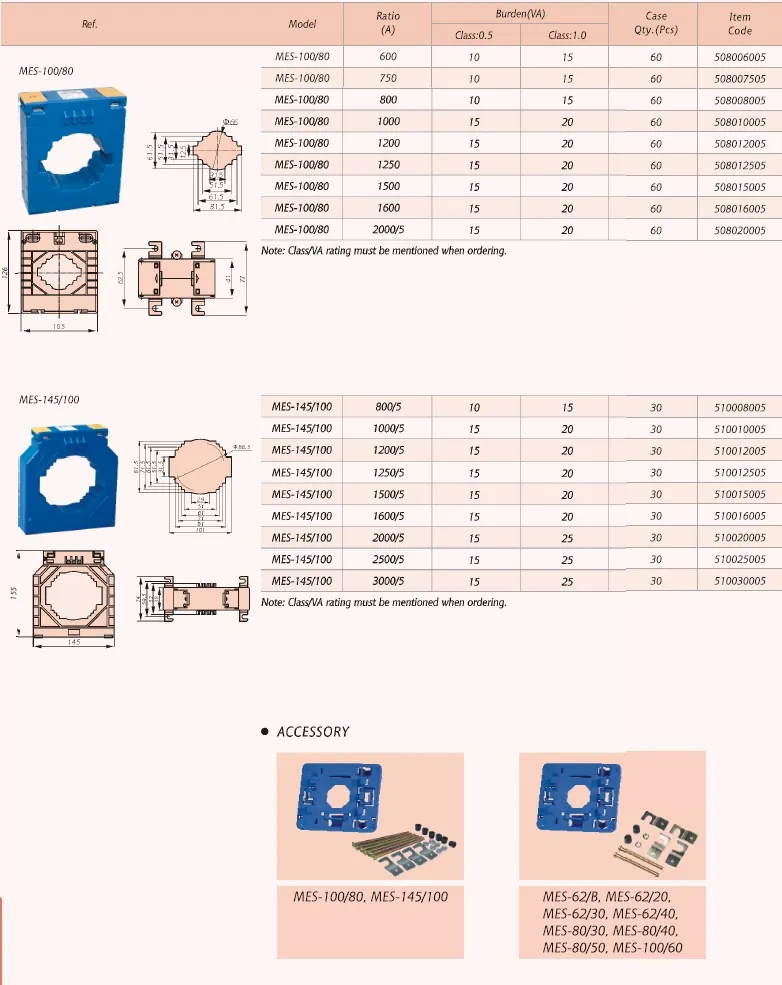

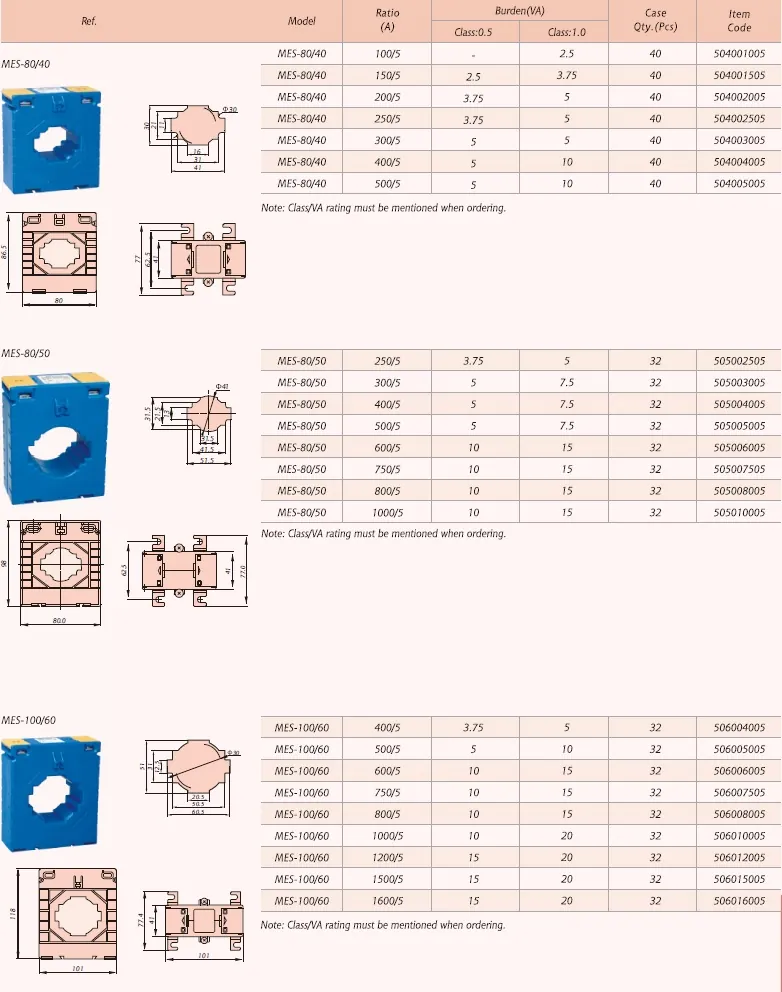

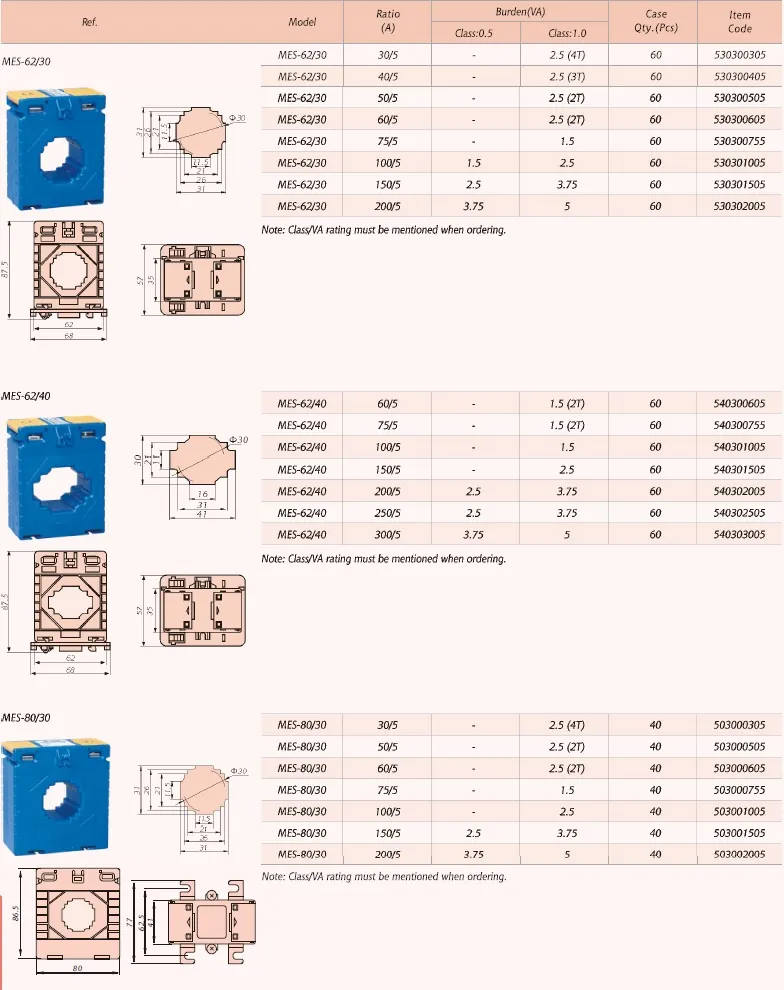

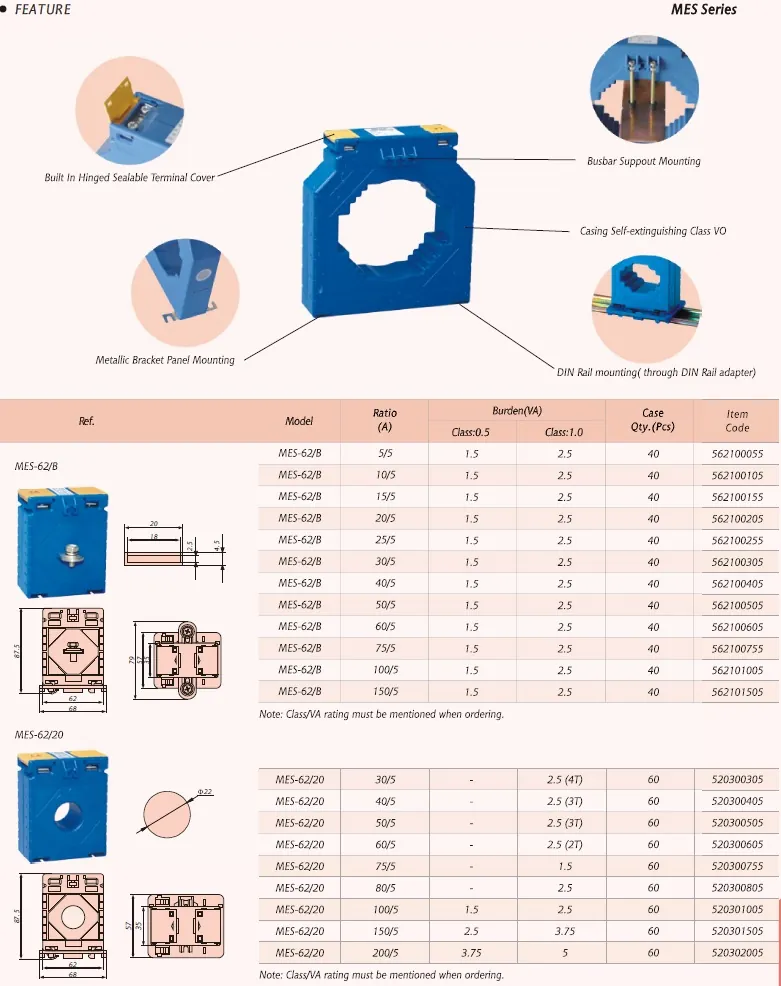

Window type MES current transformer(Blue) 1.Description A range of (10 frames) compact design plastic case current transformer. It's volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requirements in space limited panels. 2.Feature Three built in fixing methods:Side base; DIN Rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 3000A. 3.Specification Rated Frequency 50/60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current(Ith) 60In Rated dynamic current, (Idyn) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10°C~50°C Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A/1A MES series photos: MES-62/B, MES-62/20, MES-62/30, MES-62/40, MES-80/30, MES-80/40, MES-80/50, MES-100/60, MES-100/80, MES-145/100
o
Window type MES current transformer(Blue) 1.Description A range of (10 frames) compact design plastic case current transformer. It's volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requirements in space limited panels. 2.Feature Three built in fixing methods:Side base; DIN Rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 3000A. 3.Specification Rated Frequency 50/60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current(Ith) 60In Rated dynamic current, (Idyn) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10°C~50°C Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A/1A MES series photos: MES-62/B, MES-62/20, MES-62/30, MES-62/40, MES-80/30, MES-80/40, MES-80/50, MES-100/60, MES-100/80, MES-145/100
o
Other models in MES Europe Hottest CT
Questions about this model
How do I get a price for the MES Current Transformer
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the MES Current Transformer
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
