Waste Plastic Recycling Single Shaft Shredder
Single-shaft shredder recycling waste plastic-plastic head, head material, nozzle material, plastic, PP material, ABS material, pipe, plastic bottle, car bumper, plastic scrap, plastic block, big bag, film, woven bag, etc. .
Bulky pipe, profile and film scrap will not feed a pulverizer or extruder until it is reduced.
How this machine is used

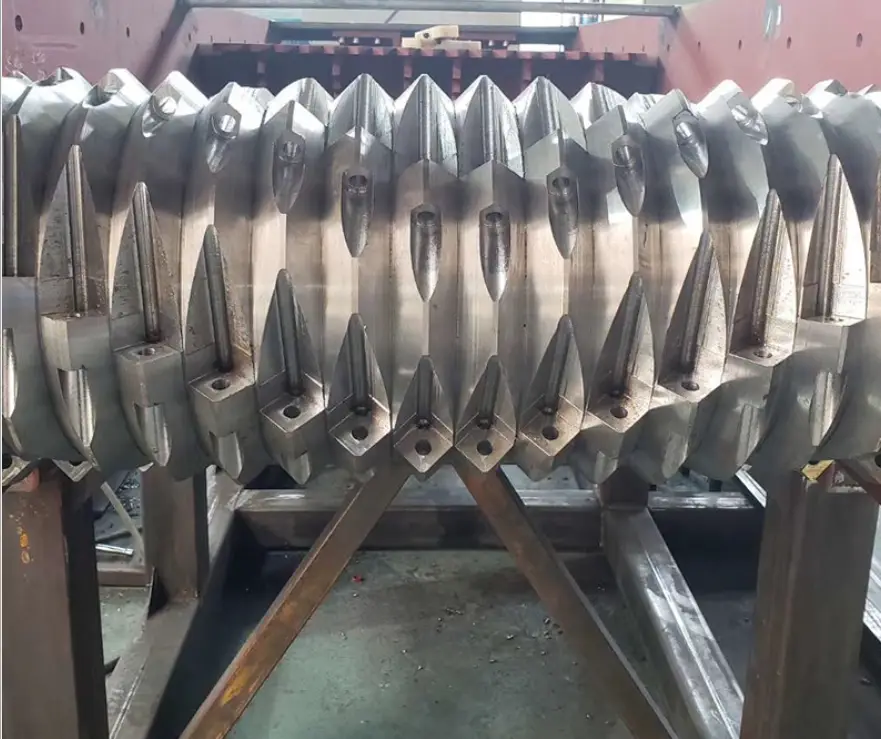

The Waste Plastic Recycling Single Shaft Shredder Machine Unit Shredder Blade The Waste Plastic Recycling Single Shaft Shredder is suitable for recycling various large solid materials, plastic containers and plastic barrels, thick-walled PE/PPR pipes, plastic pallets, plastic films, etc.
Shredded particles can be as small as 20mm according to different needs.
And we can provide various feeding hoppers according to customer needs.
The shredder has a standard serrated pusher plate, which is more convenient for crushing large solid bodies (head material, gate material) or pallets; At the same time, The design of the rotor is flexible, so it can crush various materials and can be modified as needed.
Published specifications
| 600 | 800 | 1000 | 1300 | 1500 | |
|---|---|---|---|---|---|
| Model | SS-600 | SS-800 | S S-1000 | SS-1300 | SS-1500 |
| Motor | 22kw | 37kw | 45kw | 75kw | 110kw |
| Effective length of cutter shaft | 600mm | 800mm | 1000mm | 1300mm | 1300mm |
| Number of moving knives | 26pcs | 46pcs | 58pcs | 75pcs | 92pcs |
| Bearing | Japan | ||||
| Hydraulic system | 2.2kw | 3kw | 4kw | 5.5kw | 5.5kw Double cylinder |
| Screen aperture | Φ50mm | ||||
| Shredding ability | 200~500 kg/h | 350~600 kg/h | 500~800 kg/h | 600~1000 kg/h | 800~1300 kg/h |
| Dimensions | 1950×1350×1900 | 2450×1650×1950 | 3200×1950×2200 | 3800×2200×2200 | 4600×2600×2500 |
| weight | 2700kg | 3900kg | 5000kg | 6500kg | 7500kg |
Questions plants usually ask
What problem does the Waste Plastic Recycling Single Shaft Shredder address?
Bulky pipe, profile and film scrap will not feed a pulverizer or extruder until it is reduced.
Can Prowell customize the Waste Plastic Recycling Single Shaft Shredder?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
