Waste Plastic Metal Recycling Double Shaft Shredder
The bearing seat of the double-shaft tearing machine adopts a split type, which is easy to disassemble and change the knife. It is suitable for shredding large, thick and difficult to shred materials such as: TV, washing machine, refrigerator housing, plastic packaging barrels, rubber tires, car bumpers, Large rolls of film, large bundles of agricultural film, mulching film, large bundles of plastic film, large bundles of ton bag woven bags, roll film, Tetra Pak boxes, combibloc, paper, fibers, forklift pallets, tires, packaging barrels, aluminum , Copper and iron with thickness less than 5mm.
Bulky pipe, profile and film scrap will not feed a pulverizer or extruder until it is reduced.
How this machine is used

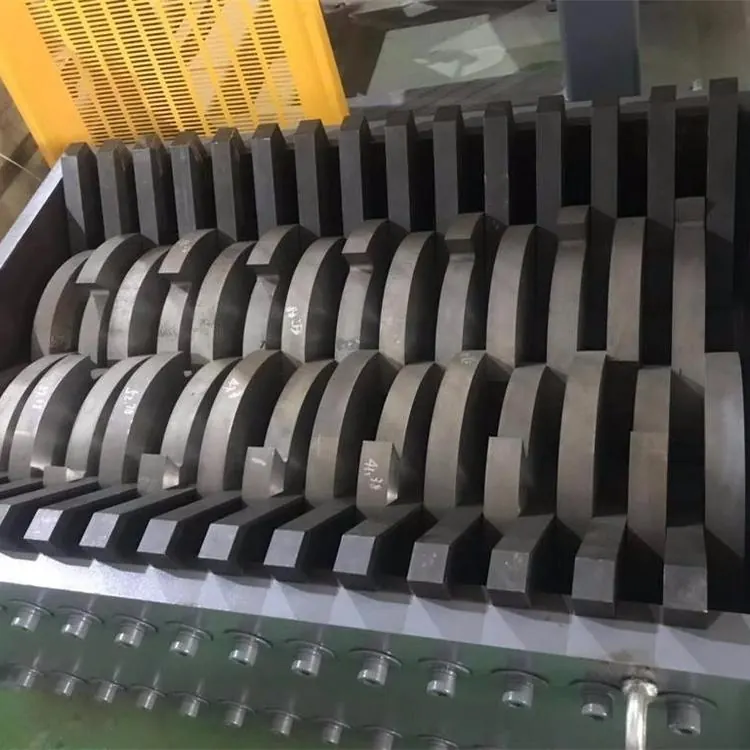

Waste Plastic Recycling Double Shaft Shredder Machine Double Shaft Shredder Crushing Blades Waste Plastic Metal Recycling Double Shaft Shredder DS series double-shaft shredder adopts PLC microcomputer automatic control, with start, stop, reverse and overload automatic reverse control functions.
It has the characteristics of low speed, large torque, low noise, etc.
The bearing seat adopts a split type, disassembly and assembly.
In a complete set of recycling production lines, the DS series double-shaft shredder can be used as a solution for coarsely pulverizing materials.
Published specifications
| Shredder Model | DS600 | DS800 | DS 1000 | DS1200 | DS1600 |
|---|---|---|---|---|---|
| Diameter Rotary | 255mm | 255mm | 300.0mm | 300mm | 300mm |
| Rotate the number of knives | 60pcs | 78pcs | 96pcs | 114pcs | 1501pcs |
| Rotate the cutter shaft speed | 14-80rpm | 15-80rpm | 15-80rpm | 15-90rpm | 15-90rpm |
| Number of fixed knives | 4pcs | 4 pcs | 4 pcs | 8pcs | 8pcs |
| Maximum yield | 650kg/h | 900kg/h | 1000kg/h | 1200kg/h | 1500kg/h |
| Feeding caliber | 700mm*800mm | 880mm*1100mm | 1070mm*1150mm | 1280mm*1300mm | 1650mm*2000mm |
| Power of main motor | 18.5KW*2 | 22KW*2 | 30KW*2 | 37KW*2 | 45KW*2 |
| Host weight | 4000kg | 5400kg | 6200kg | 8000kg | 9500kg |
Questions plants usually ask
What problem does the Waste Plastic Metal Recycling Double Shaft Shredder address?
Bulky pipe, profile and film scrap will not feed a pulverizer or extruder until it is reduced.
Can Prowell customize the Waste Plastic Metal Recycling Double Shaft Shredder?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
