PVC Two Cavity Pipe Extrusion Machine

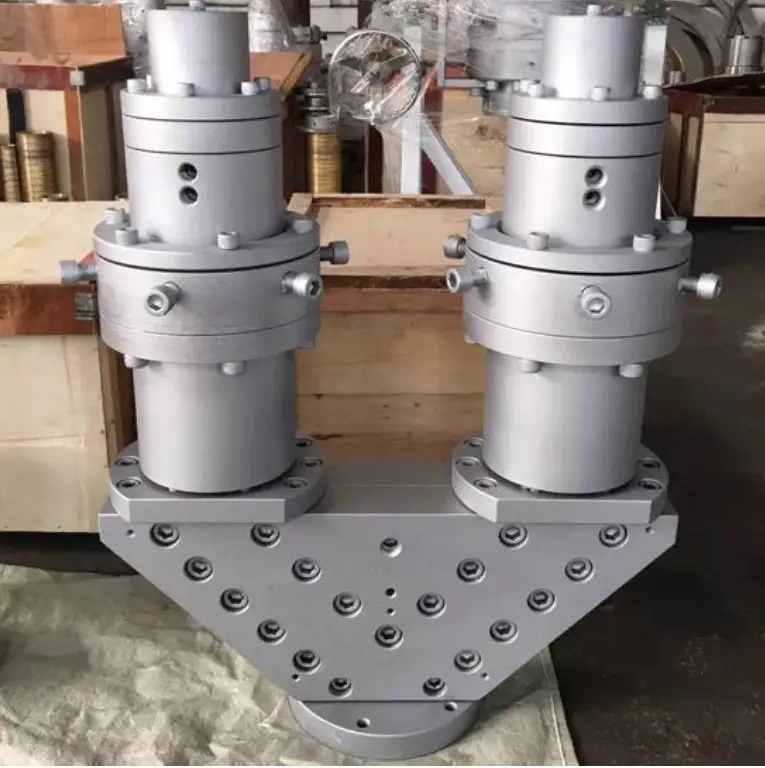

PVC Two Cavity Pipe Extrusion Machine (1) Method: The mouth and core mold can be replaced. (2) The mold material is made of quenched and tempered 45# steel or 2Cr13 steel, and the internal runner is treated with hard chromium plating, which has strong corrosion resistance; the appearance is beautiful, generous and does not rust. (3) The sizing sleeve of the mold is made of alloy copper. The connecting flange is made of 45# hard chrome plating. (4) The mold heating ring adopts stainless steel mica heating ring, which has low power loss, stable heating and long service life. (5) The standard parts use 12.9-grade high-strength screws to ensure the overall performance of the extrusion die.
Pipe ovality, wall-thickness drift and dusty cuts come from a poorly matched extruder-calibration-haul-off set.
How this machine is used
Conical Double Screw Extruder-PVC Conduit Pipe Extrusion Machine PVC Two Cavity Pipe Extrusion Machine Line PVC Conduit Pipe Extrusion Machine mainly includes: powder feeder, conical twin-screw extruder, mold (one output two), vacuum sizing box, tractor, cutting machine and stacking rack .
The PVC pipes produced by this production line are generally used for water supply, drainage pipes and wire threading pipes.
The Extrusion Line main machine SJZ-55/110 or SJZ-65/132 conical twin-screw extruder is equipped with a double-pipe double-slot single-control stainless steel cooling setting machine, which avoids the waste of adjusting one pipe and affecting the production of the other pipe during production.

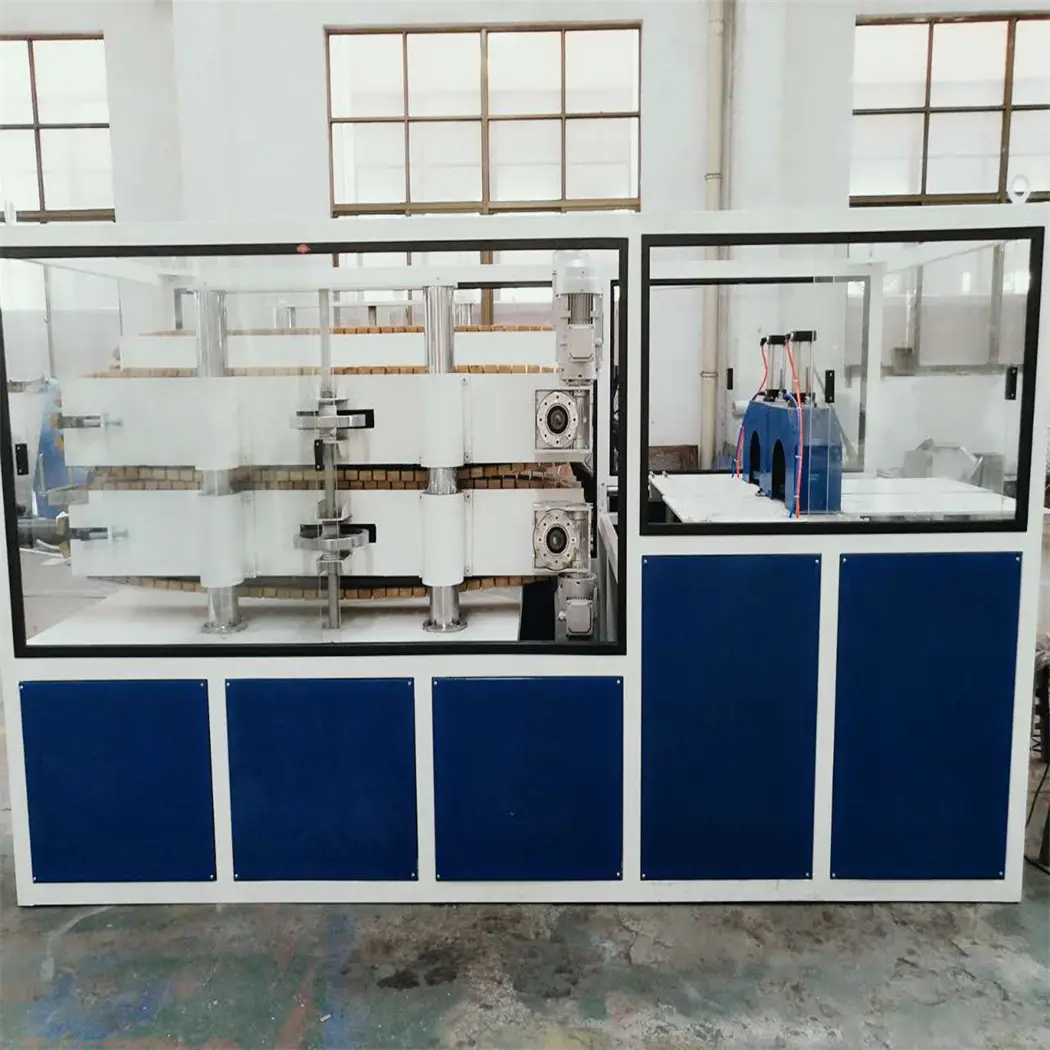

, The automatic single control double traction double cutting machine integrates the front double shaping technology into one, which makes the operation more flexible and allows you to appreciate the benefits brought by the separate single control, double pipe and double grooves.
Published specifications
| Details： | ||
|---|---|---|
| Model | PVC Two Cavity Pipe Extrusion Machine | PVC Four Cavity Pipe Extrusion Machine |
| Extruder | SJSZ55/110 | SJSZ65/132 |
| Diameter Range | Ф16mm-Ф40mm | Ф16mm-Ф32mm |
| Vacuum Tank Length | 4m | 4m |
| Haul Off Machine Speed | 1.2-12 m/min | 1.2-12 m/min |
| Total Power | 67kw | 92kw |
| Total Length | 17m | 18m |
Questions plants usually ask
What problem does the PVC Two Cavity Pipe Extrusion Machine address?
Pipe ovality, wall-thickness drift and dusty cuts come from a poorly matched extruder-calibration-haul-off set.
Can Prowell customize the PVC Two Cavity Pipe Extrusion Machine?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
