16-32mm PVC Pipe Four Cavity Production Line
PVC Four Cavity Production Line can easily reach 220-270kg/h, 16≥8-10m/min with a cone double 65 main machine, a four-production line contains a main machine SJZS65 conical twin-screw extruder, and a four molds. One out of four cooling and shaping four tractors, one out of four cutters, one out of four turning racks.
Pipe ovality, wall-thickness drift and dusty cuts come from a poorly matched extruder-calibration-haul-off set.
How this machine is used

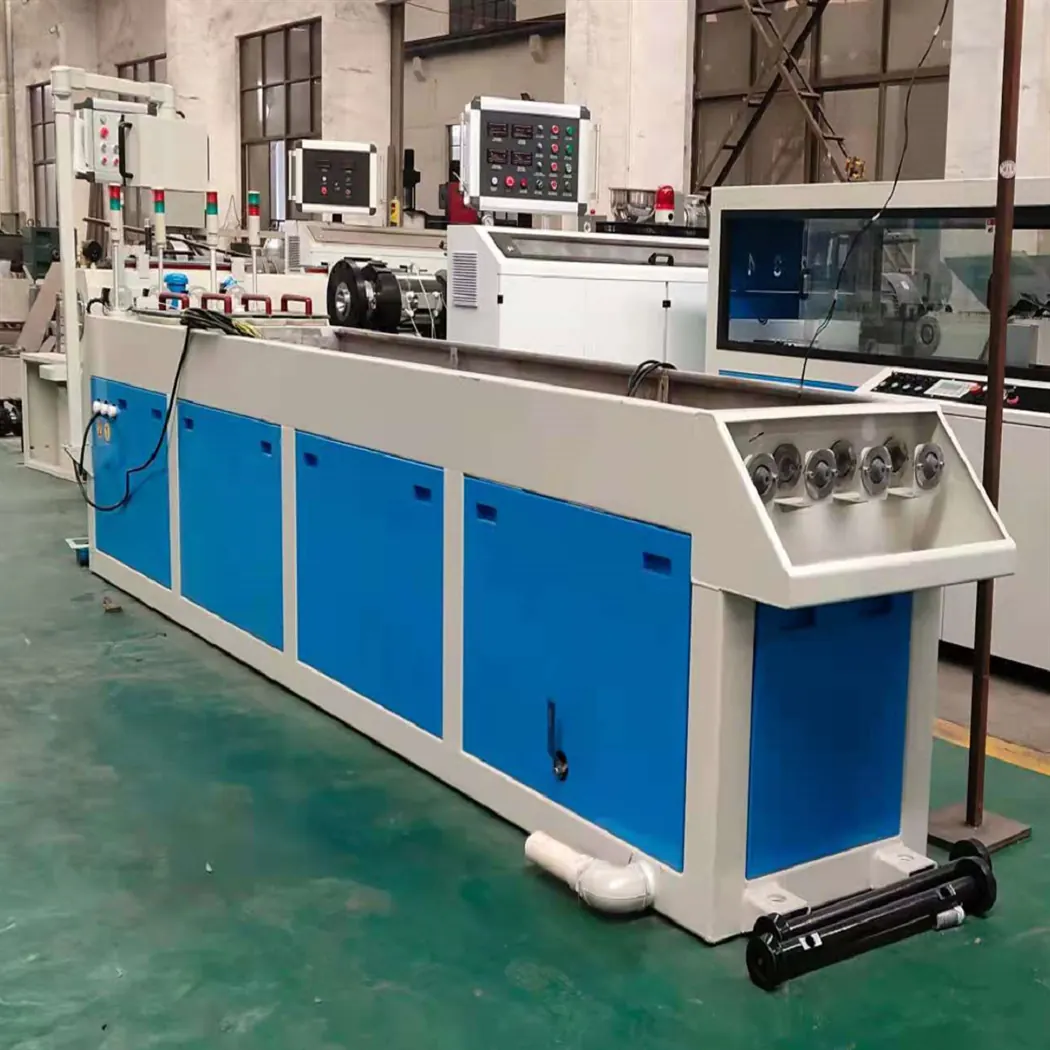

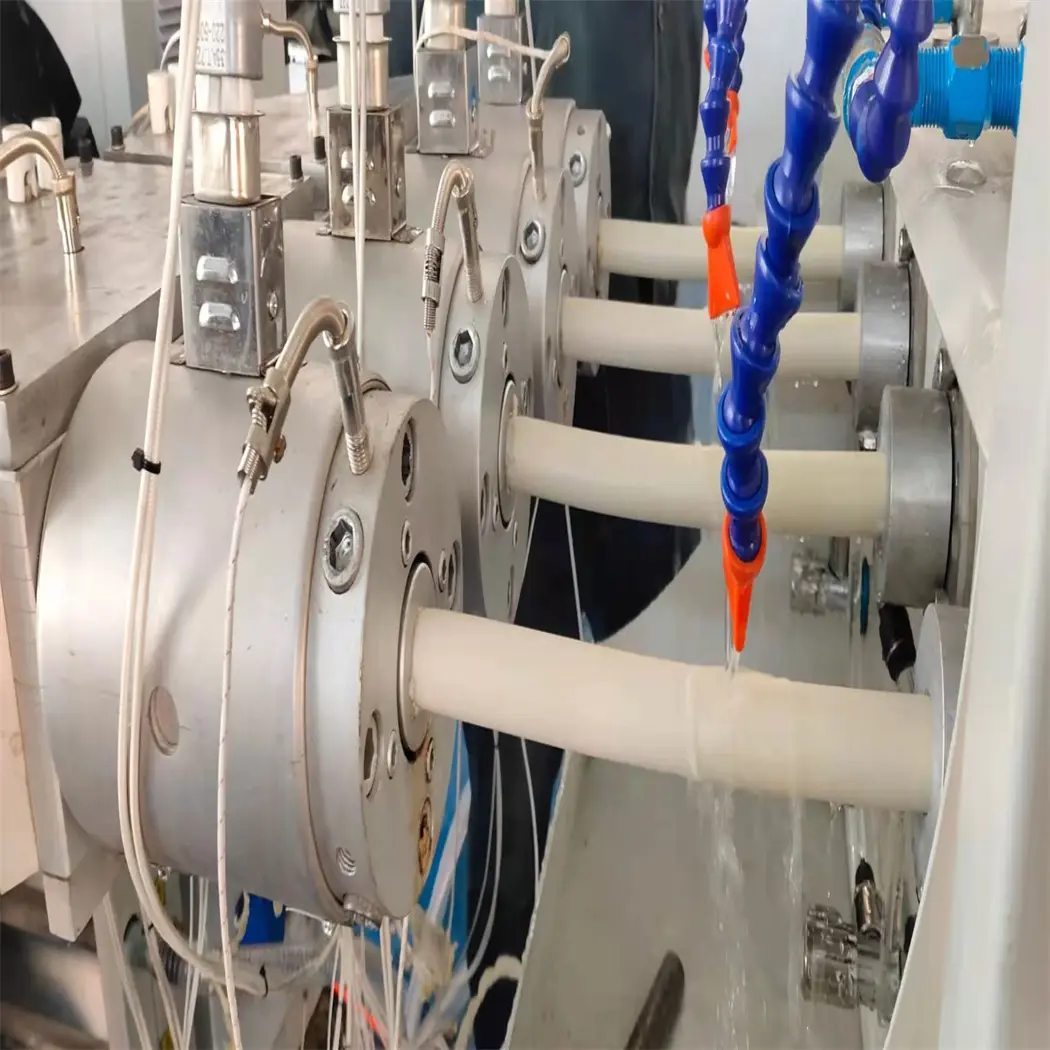

PVC Pipe One Out Four Pipe Making Line Haul off machine and cutter PVC One out Four Extrusion Line Extrusion Mold Equipment overview 16-32mm PVC Pipe Four Cavity Production Line is used for pipe production line extrusion molding.
PVC formula material is fed into the barrel by a feeding screw quantitatively, and the material is conveyed, compressed, plasticized and metered by the screw, and then enters the forming mold.
The material of the barrel and screw of this machine is 38CrMoAlA, which has been forged, quenched and tempered, twice aging treatment, and nitriding treatment.
What is different from other manufacturers is our PVC Pipe Four Cavity Production Line the screw edge is rough-processed and quenched and tempered, and the material has excellent hardenability, and the effective stress is obtained after two aging treatments.
Published specifications
| Model/Item | Pipe range | Extruder | Max output | Max speed | Total power |
|---|---|---|---|---|---|
| PVC-50*2 | 16-50mm | SJSZ65/132 | 250kg/h | 10 m/min | 85 kw |
| PVC-63 | 16-63mm | SJSZ51/105 | 150 kg/h | 10 m/min | 60 kw |
| PVC-110 | 50-110mm | SJSZ55/110 | 180 kg/h | 10 m/min | 70 kw |
| PVC-160 | 63-160mm | SJSZ65/132 | 300 kg/h | 5 m/min | 90 kw |
| PVC-250 | 110-250mm | SJSZ80/156 | 400 kg/h | 3.5 m/min | 120 kw |
| PVC-315 | 160-315mm | SJSZ80/156 | 400 kg/h | 3 m/min | 160 kw |
| PVC-450 | 250-450mm | SJSZ92/188 | 700 kg/h | 1.5 m/min | 200 kw |
| PVC-630 | 315-630mm | SJSZ92/188 | 700 kg/h | 0.9 m/min | 230 kw |
Questions plants usually ask
What problem does the 16-32mm PVC Pipe Four Cavity Production Line address?
Pipe ovality, wall-thickness drift and dusty cuts come from a poorly matched extruder-calibration-haul-off set.
Can Prowell customize the 16-32mm PVC Pipe Four Cavity Production Line?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
