SJZ80/156 Extruder PVC Powder Pelletizing Machine
SJZ80/156 Extruder PVC Powder Pelletizing Machine , mainly used for the granulation of soft/hard PVC materials. Step 1: Mix soft/hard PVC with functional additives. Step 2: The mixture is eagerly cut and pelletized. The hot-cut granulation line is mainly used for: 1. Production of various types of PVC profiles. 2. Production of PVC sealing strips and edge banding strips. 3. Production of various PVC pipe lines. First granulate, and then use single screw extruder to make products.
Inconsistent pellet size and moisture in PVC compound create surge and gels on the next process.
How this machine is used

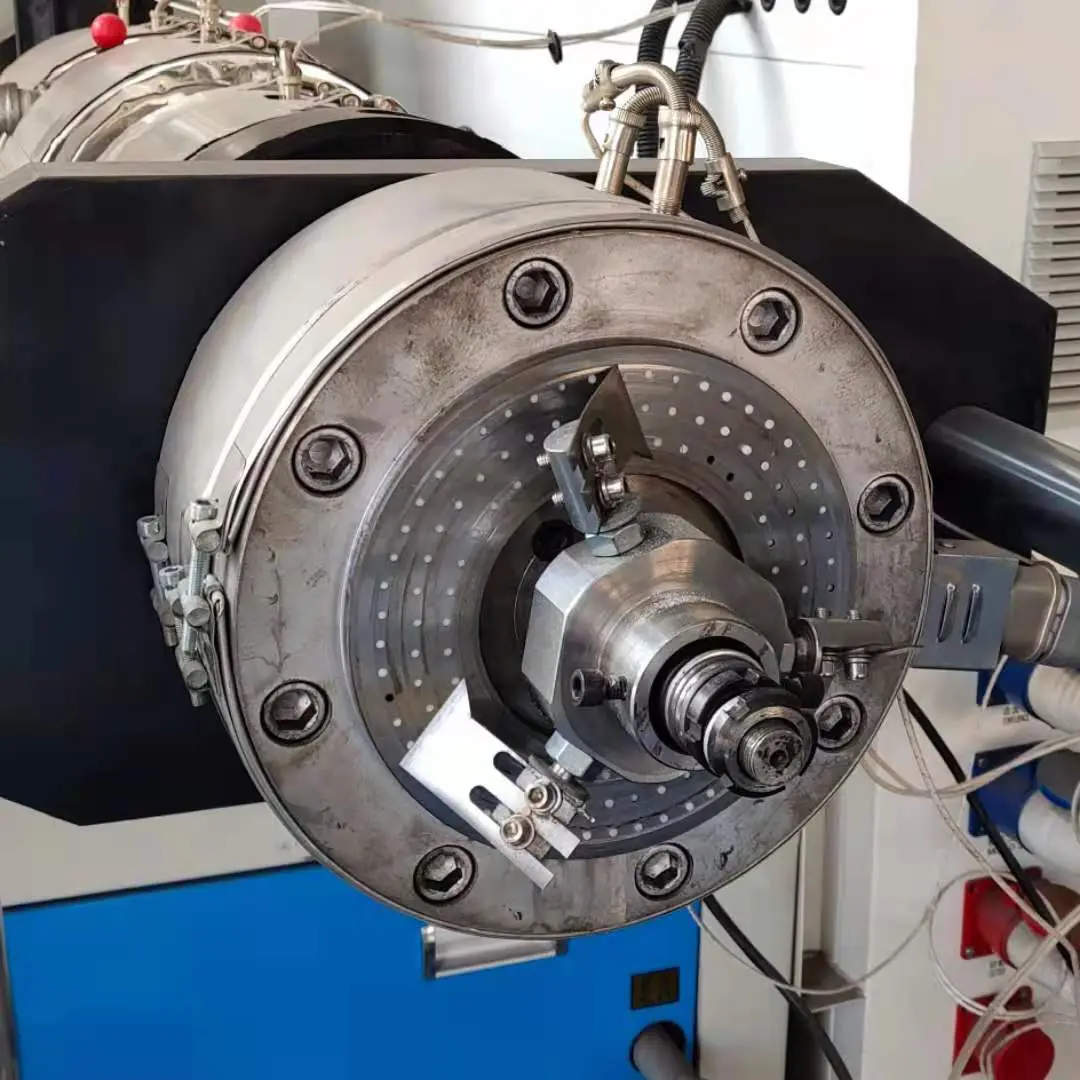

The Plastic PVC Powder pelletizing Machine The component composition of SJZ80/156 Extruder PVC Powder Pelletizing Machine 01 Hot cutting die Description: Die head 45# forging and quenching hard chromium plating layer thickness of the inner runner 0.03~0.04 The outer surface of the shunt cone is plated with hard chromium, the chromium layer thickness is 0.03~0.04 Cast aluminum heater 02 Pelletizing wind hood Description: Stainless steel windshield δ2 with lighting lamp and observation hole, easy to observe 03 pelletizing system Description: The pelletizing machine motor is 1.1kW also the height can be adjusted up and down; the front and back can be manually Fine-tuning.

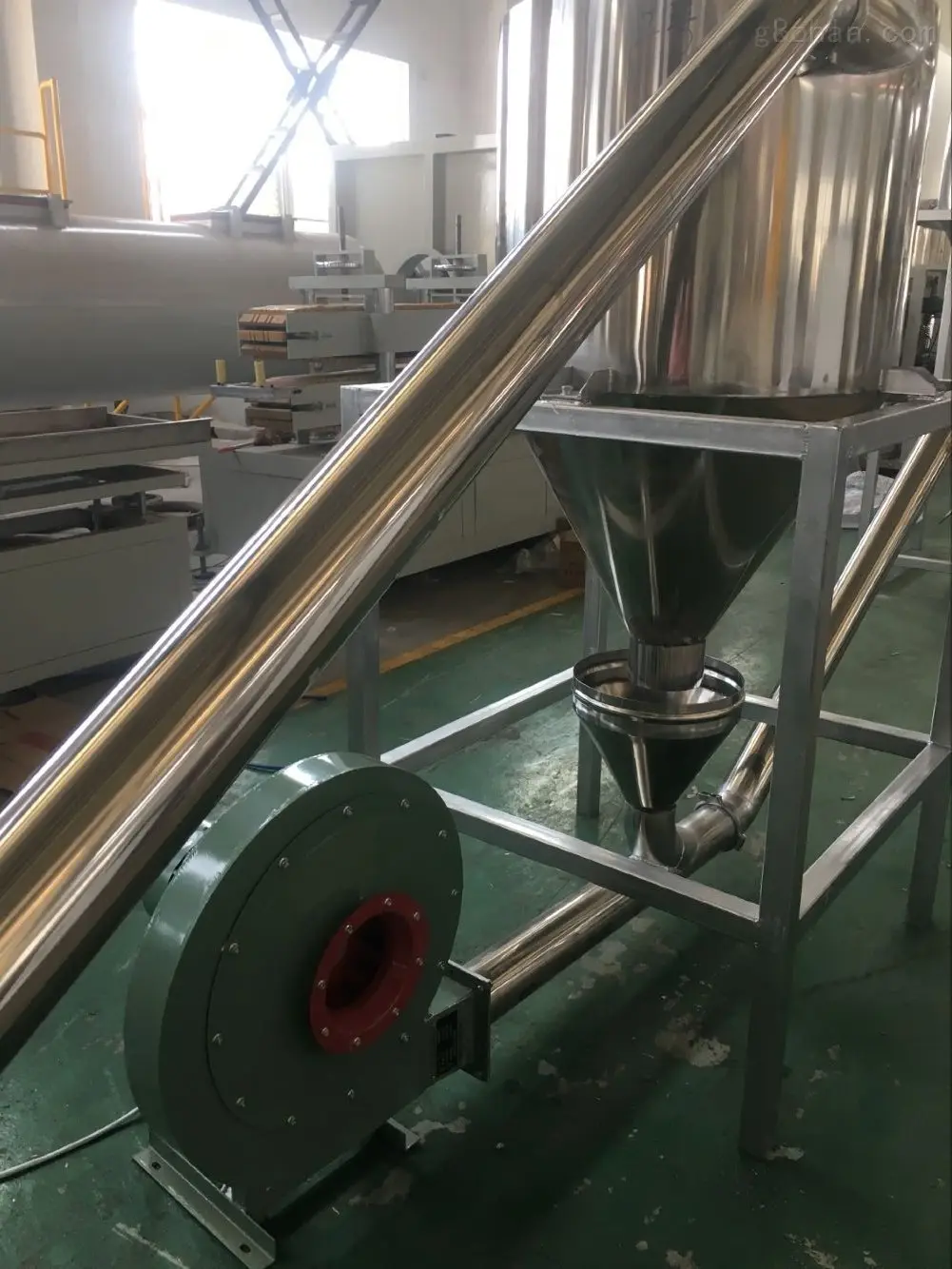

The blade is 9CrSi then cutter head and the knife holder are plated with decorative chrome; the pellets are cut The pelletizing device has guide rails that can move back and forth to facilitate mold cleaning 04 Air delivery system Description: Material blowing fan 1.5kW, venturi tee, elbow, straight pipe and cyclone Separator, all pipes are stainless steel material, among which the cyclone separator has a sandwich 05 Electrical system Note: The electrical system is on the pelletizing trolley for easy control, and the pelletizing motor is frequency-control Model Main motor power Capacity SJSZ65/132 37kw 250-300kg/h SJSZ80/156 55kw 350-400kg/h SJSZ92/188 90kw 700-800kg/h
Published specifications
| Model | Main motor power | Capacity |
|---|---|---|
| SJSZ65/132 | 37kw | 250-300kg/h |
| SJSZ80/156 | 55kw | 350-400kg/h |
| SJSZ92/188 | 90kw | 700-800kg/h |
Questions plants usually ask
What problem does the SJZ80/156 Extruder PVC Powder Pelletizing Machine address?
Inconsistent pellet size and moisture in PVC compound create surge and gels on the next process.
Can Prowell customize the SJZ80/156 Extruder PVC Powder Pelletizing Machine?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
