PVC Powder Hot-Cut Granulation Production Line
The PVC Powder Hot-Cut Granulation Production Line easily solves the problems of many pores, easy glue spraying, and low output encountered in the process of wet material and water granulation. The screw is high-frequency quenched, which is not easy to break and has a long service life. And there are a variety of die heads, a variety of material screws, and a variety of combinations to choose from. To meet the different purchase needs of large, medium and small investors, it is an ideal choice for your investment in the regeneration industry.
Inconsistent pellet size and moisture in PVC compound create surge and gels on the next process.
How this machine is used

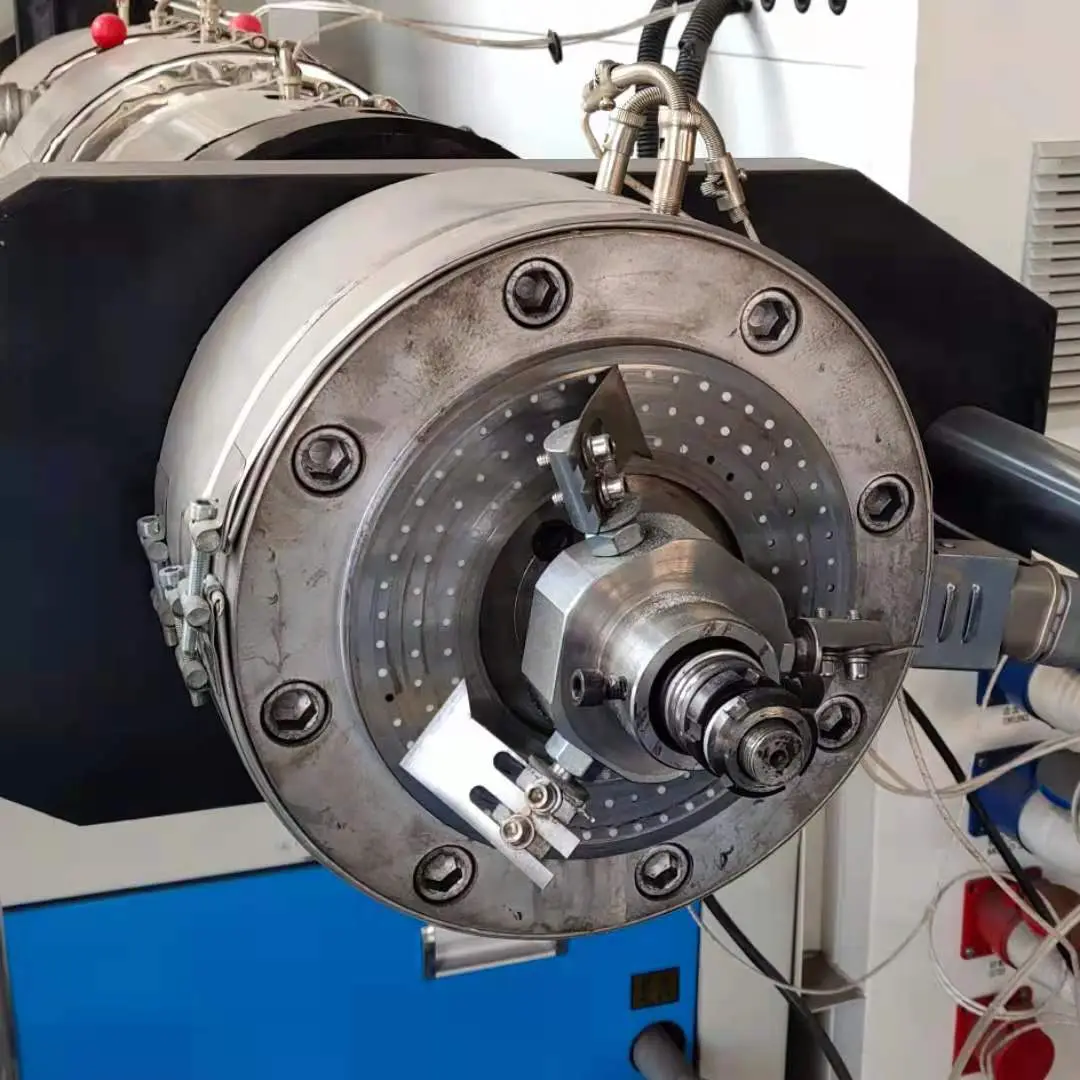

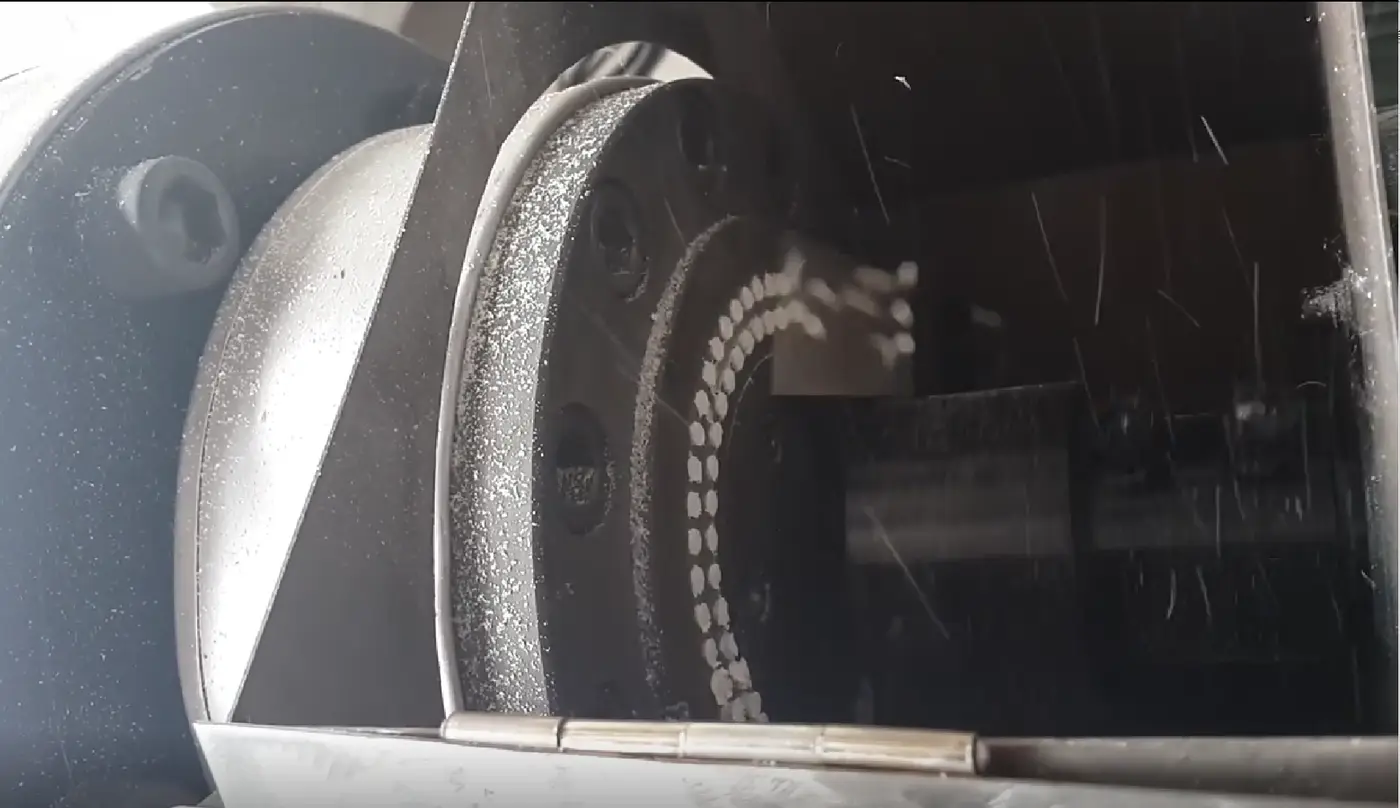

PVC Powder Hot Cut Hot-Cut Granulation Production Line Cutting Mold The PVC Powder Hot-Cut Granulation Production Line is used in the field of PVC recycling crushed material and waste material granulation Through the process of melting, extruding, pelletizing and drying, recycled materials, waste materials will become PVC particles Then Granules are widely used in the plastic industry, sheet, pipe, and profile production.
Production Line mainly adopts the method of grinding and hot-cutting to granulate the plastics with relatively cold curing characteristics (such as HDPE, PVC) and filled modified plastics (such as calcium filling) without water so the die surface is eagerly cut and granulated to make the appearance of the material particles smooth, full and beautiful.
Because the system adopts a modular design then users can also choose secondary air conveyors vibrating screens and other configurations according to process requirements to achieve different process requirements.
This production line mainly adopts the method of grinding and eager cutting to produce PVC particles Then the production line has the advantages of high cutting precision and high eager cutting output.
Published specifications
| Model | SJSZ-51 | SJSZ-65 | SJSZ-80 |
|---|---|---|---|
| Extruder | SJSZ-51/105 | SJSZ-65/132 | SJSZ-80/156 |
| Power | 45 kw | 70kw | 100 kw |
| Output | 120kg/h | 280kg/h | 350kg/h |
| Granulator | φ3mm-4 | φ3mm | φ3mm |
| Total Length | 12meters | 15meters | 17meters |
Questions plants usually ask
What problem does the PVC Powder Hot-Cut Granulation Production Line address?
Inconsistent pellet size and moisture in PVC compound create surge and gels on the next process.
Can Prowell customize the PVC Powder Hot-Cut Granulation Production Line?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
