10400/15600mAh 35W Mini DC UPS Power Bank Backup Power with Lithium Battery USB TYPE-C POE for WiFi Routers
Mini DC UPS
At A Glance
- Build-in 10400mAh / 15600mAh Lithium Battery
- USB 5V/2.4A / TYPE-C 18W POE Port
- Features high reliability application:
- IP Cameras Router, Modem Wireless phone Monitor, x-box, ipad, psp, tv, digital camera, ps4, pos, CCTV
OEM and customised builds available, even for small batches. Warranty and certification details are confirmed per order.
Product Description
About This Model
- <span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>
On! Off! On! Off! Power failure is driving us all up the wall, which especially caused the Wifi interruption. But we hope we can make life a little easier with the Meind Mini DC UPS.

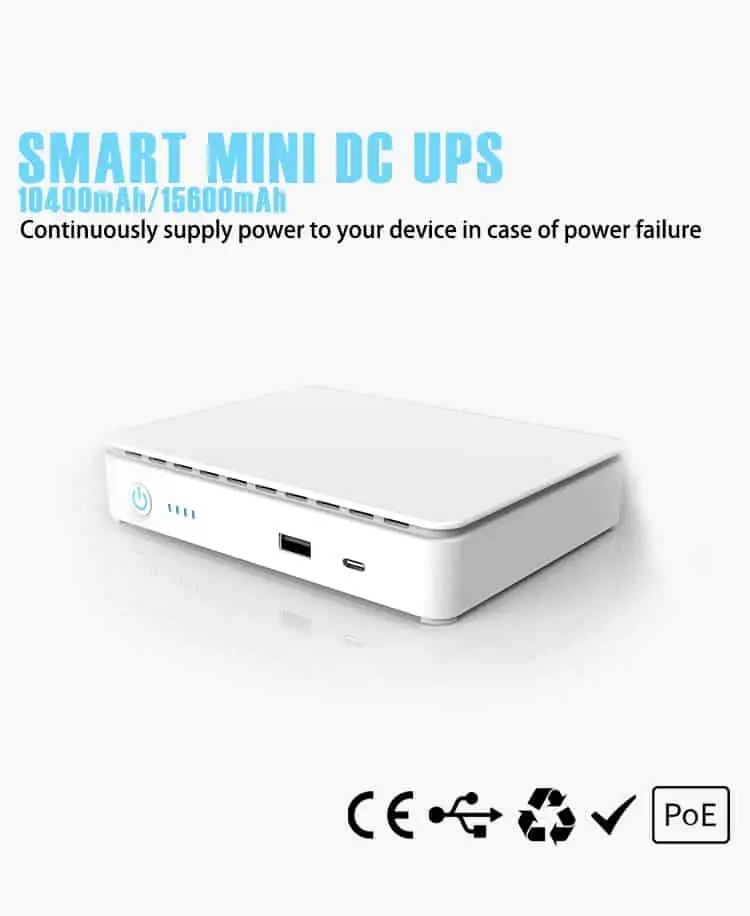

It’s an uninterruptible power supply with five voltage outputs that can supply power to two devices simultaneously, and is ideal to supply backup power to your small devices like a Wifi router, IP camera, CCTV camera, mobile phone, DC light up to 10 hours. During power off, the UPS will automatically switch to battery power, and your devices will stay on without any interruption.
The Mini DC UPS can be set up in seconds, with only one cable between the UPS and each device to connect. It also has a 5V USB output, so it can be used as a regular power bank to charge a cell phone. The batteries inside are high-quality lithium-ion with an expected life span of 2-4 years.
| Name | Meind Mini DC UPS (M1550) |
|---|---|

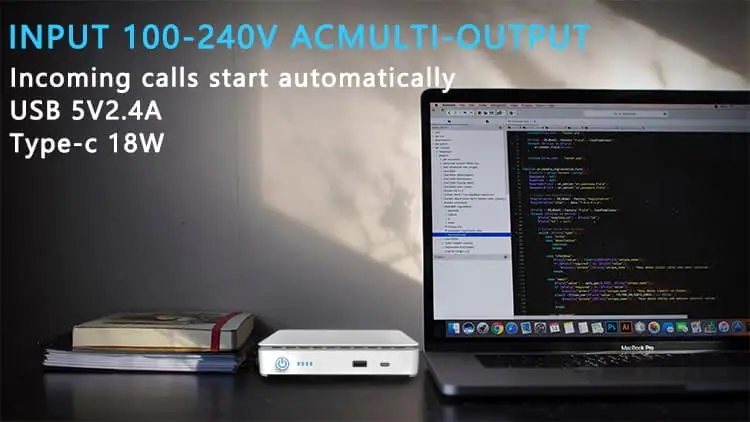

| Input | AC 100-240V/50-60Hz |
| Max Output Power | 35W |
| Output Voltage | 5v /9v & 12v/15V/24v |

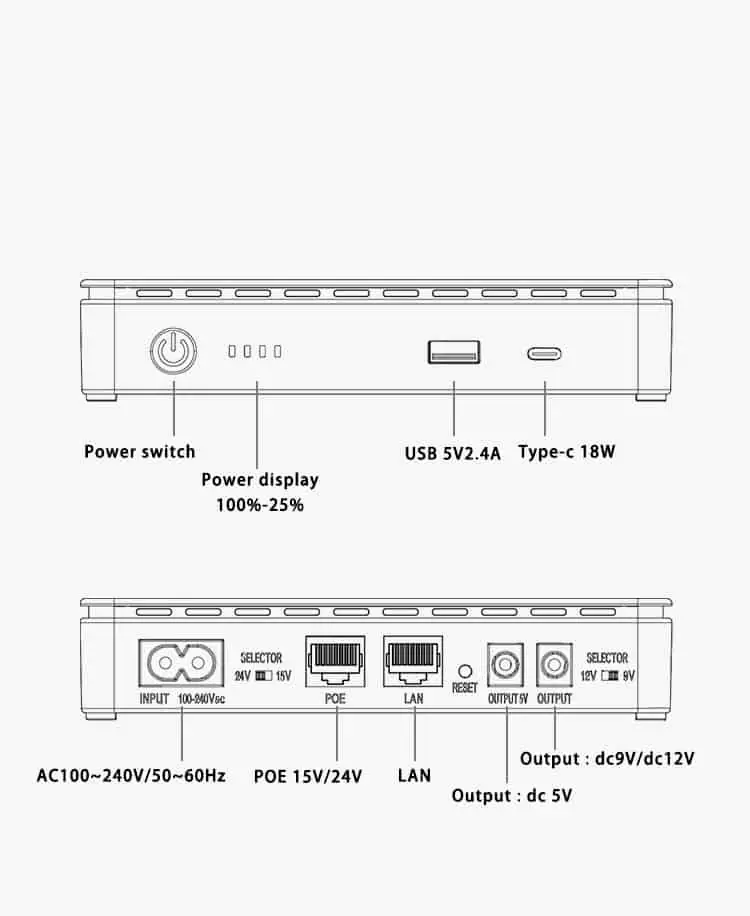

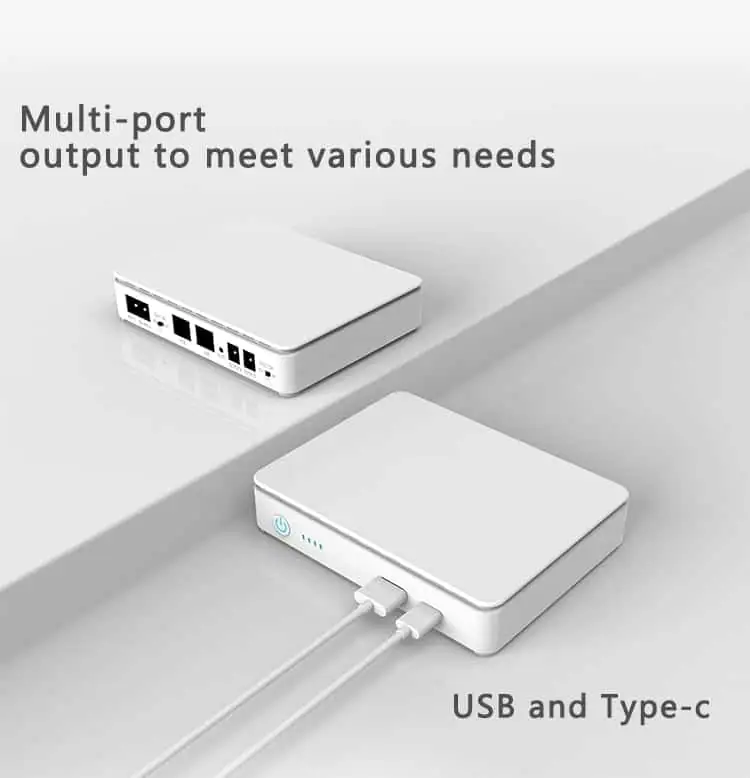

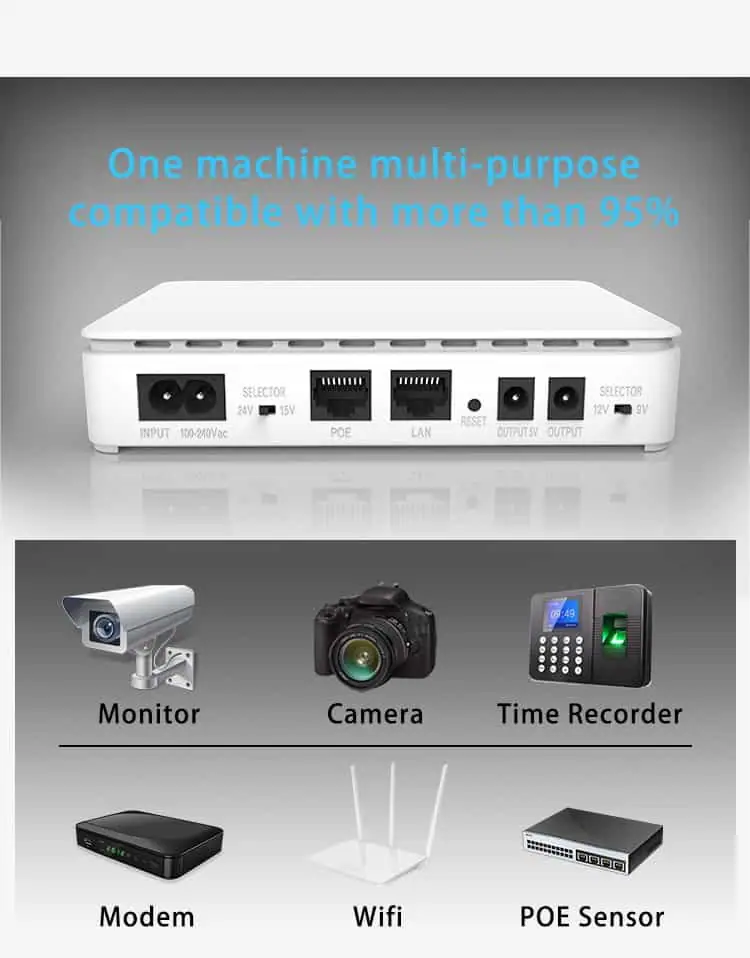

| Output | USB 5V/2.4A, Type-C (18W), DC (12W), POE (10-12W) |
| Battery Capacity | 10400 mAh/ 15600mAh, Lithium Battery |

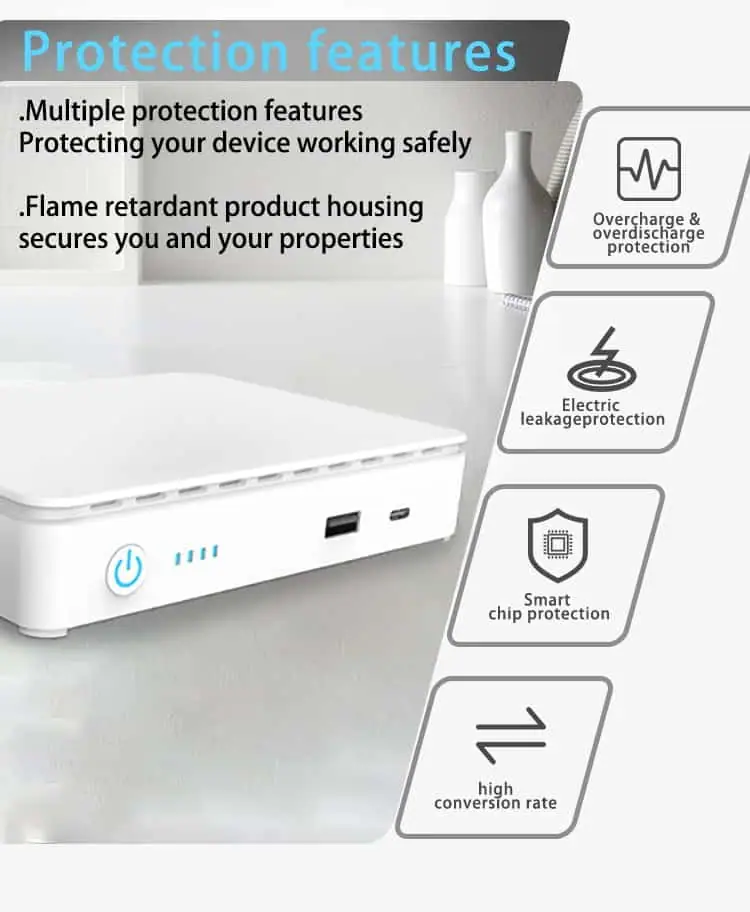

| Protection | Short Circuit, Over-charging, Over-discharging |
| Weight | 0.4kg |
| Application | Wifi router, IP camera, CCTV camera, mobile phone, DC light |
| Noise Level | Less than 40dB |

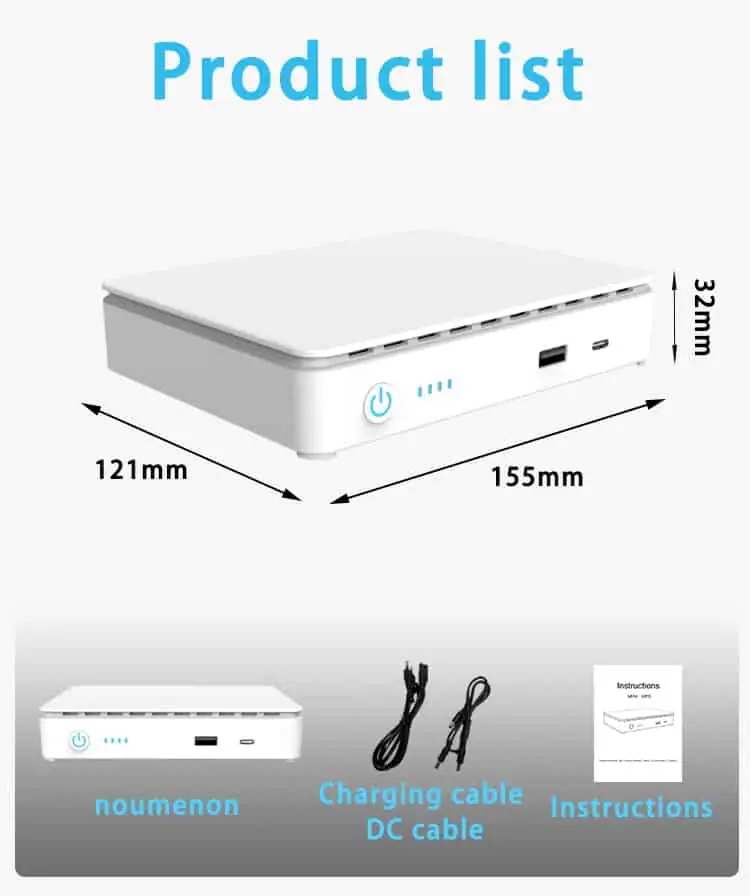

| Dimension | 155*121*32mm |
