10A 20A 30A PWM Solar Charge Controller Solar Regulator 12V/24V auto LCD Display
Solar Controller
At A Glance
- Advanced PWM Technology
- Automatically detects 12/24V
- 3 phases charge mode
- LCD Display for Data Viewing
- 2 USB ports for device charges
- Multiple Battery Charging Options
OEM and customised builds available, even for small batches. Warranty and certification details are confirmed per order.
Product Description
About This Model

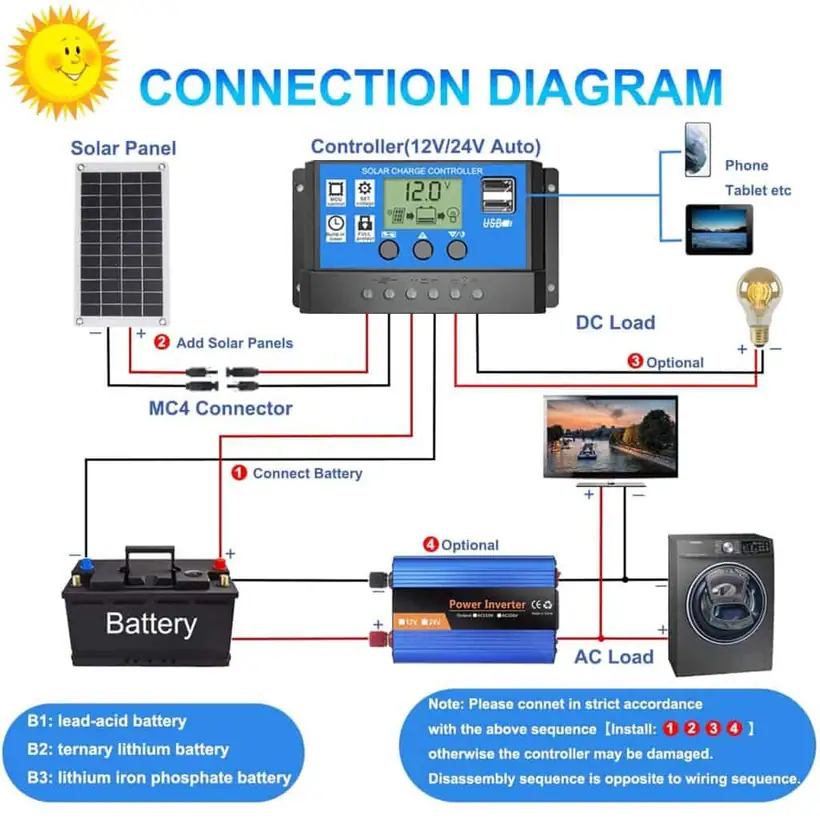

The 10A/20A/30A PWM Solar Charge Controller features a pair of screw terminals for connection to the solar panel (12V 130W or 24V 260W), a pair for connection to a 12V or 24V battery (use gel, sealed, lead or AGM models), as well as a pair of terminals for connecting the load.

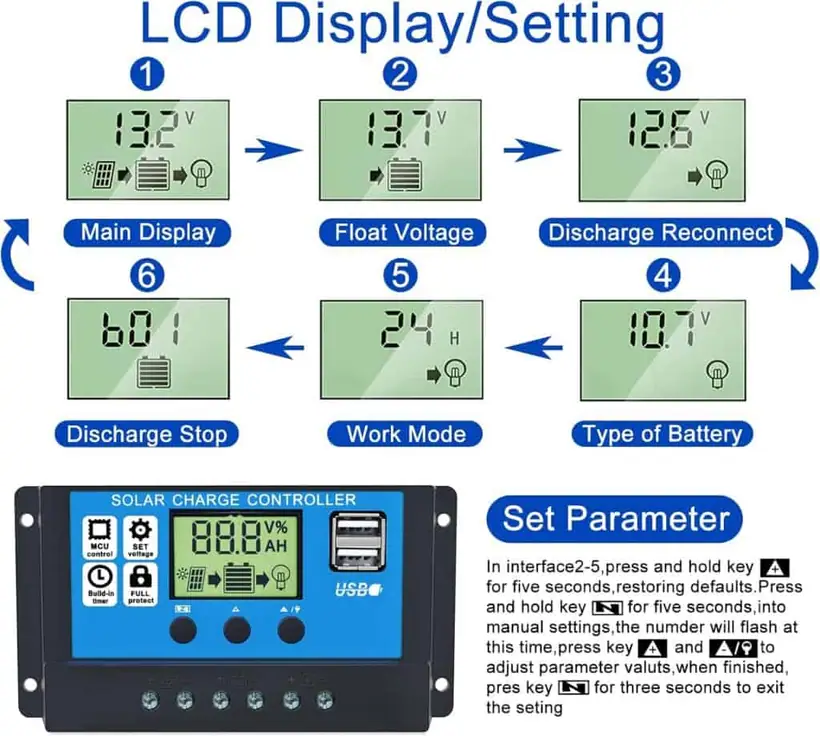

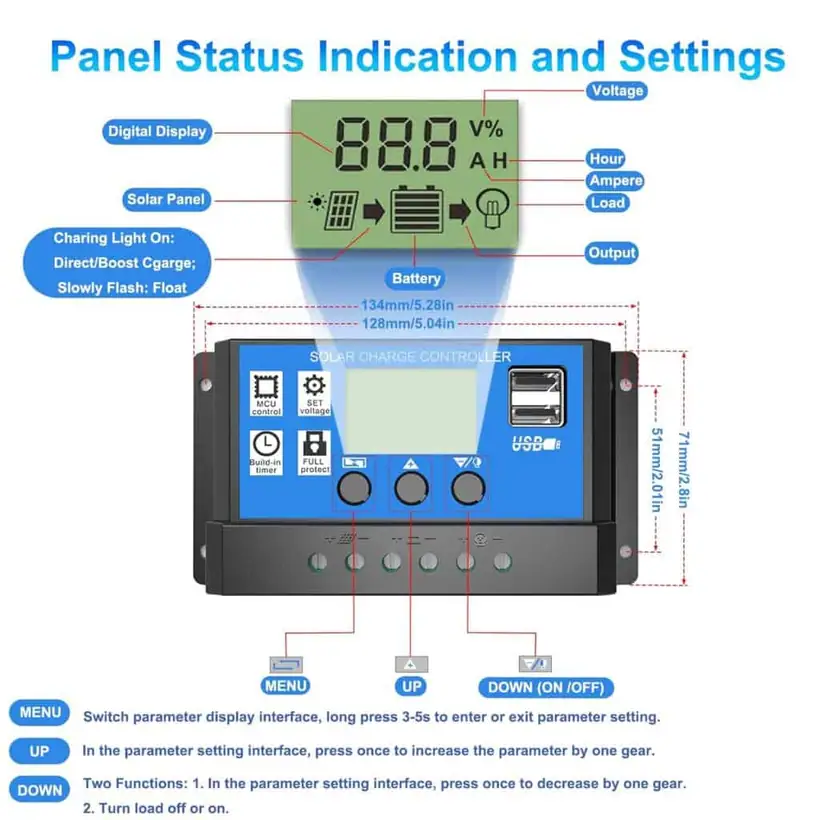

The entire operation can be monitored via the LCD panel on the device, which displays a variety of information and allows you to switch between different information using the buttons on the front: Menu (switch between different displays or press and hold to enter/exit settings), Up (press to increase the value) and Down (press this key to decrease the value and to turn on and off loads up to 120W).
New to power inverters or unsure which size fits? The Meind knowledge centre covers how DC to AC conversion works, sizing, cabling and installation, and the estimated watts table lists typical appliance loads.
Product Details

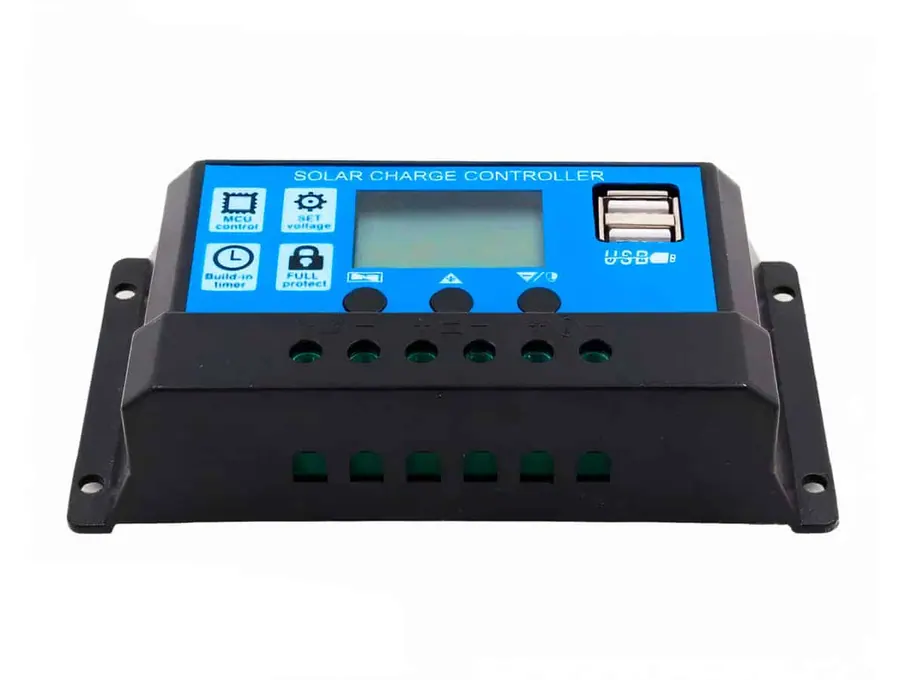

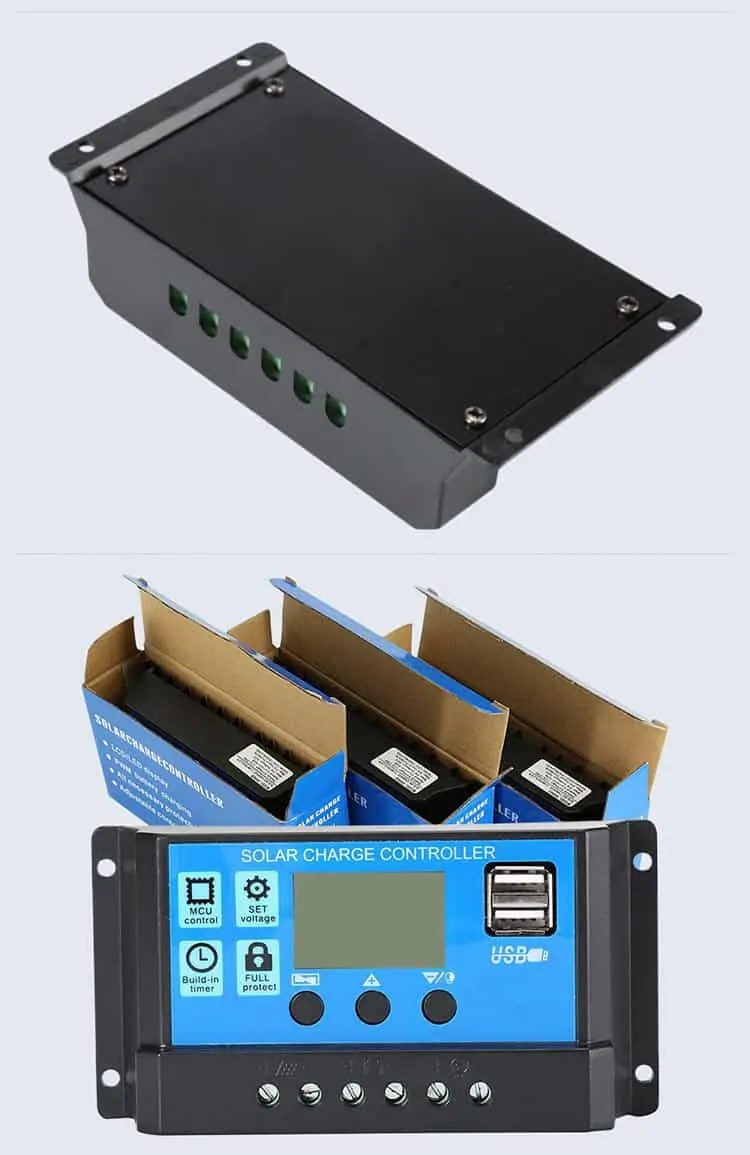

Detail Views and Feature Shots
Related Products
Other Models in Solar Controller
12V/24V 30A 40A 50A 60A 80A 100A Smart MPPT Solar Charge Controller with Dual USB Ports LCD Display
Automatically detects 12/24V · 3 phases charge mode
View Product →
12V/24V 30A 40A 50A 60A 80A 100A Smart MPPT Solar Charge Controller with Dual USB Ports LCD Display
Automatically detects 12/24V · 3 phases charge mode
View Product →
60A/80A/100A MPPT Solar Panel Charge Controller Regulator 12V/24V/36V/48V DC Dual-USB
Advanced MPPT Technology · Multi-Functional Design
View Product →FAQ
General Questions
Do you accept OEM and customised orders?
Yes. Meind is dedicated to providing customised and OEM service even for a small batch, and there are already plenty of customised models to choose from.
Which certifications do the products carry?
Meind products are certified and approved by most certification organisations such as CE, RoHS and UL, and the company is qualified to ISO 9000.
How quickly do you reply to an enquiry?
We reply to email within 16 hours, and we work on working-day evenings to cover the time difference.
How do I choose the right inverter size?
Add together the watts of every appliance you want to run at the same time, then add about 15 percent headroom. The Estimated Watts page lists typical appliance wattages.
What is the warranty?
Warranty is one year on the models where it is stated on the product page. For part of the models a replacement is sent if a quality problem occurs, with no return needed.
