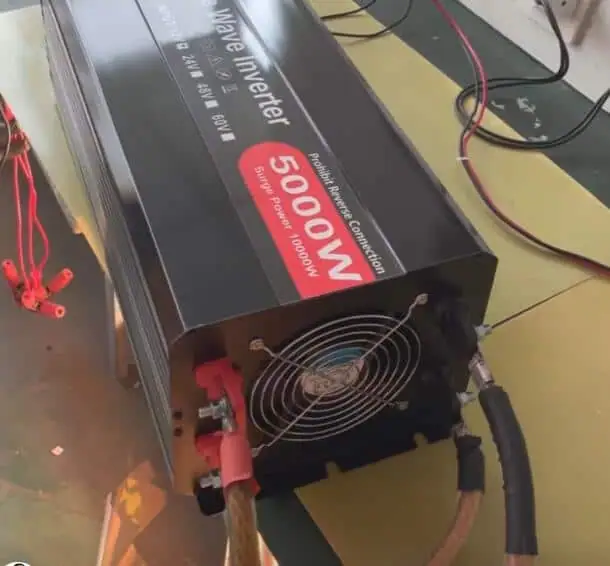

Do You Know Why We Need to Use Two Pairs of Red/Black DC Terminals on Big-Wattage Inverters?

2024-12-23 Power Inverter Knowledge

Indeed, if only one pair of red/black DC terminals were on the large inverters, the cost would be down.

But as the high-quality inverters we made, we can not do that.

(check the video here https://www.youtube.com/shorts/x1a1MPWtcw4)

Because for large-wattage inverters, the second pair of DC positive and negative terminals plays a critical role in ensuring efficient power delivery and reducing voltage drops. Here’s how they are typically used and where they go:

Purpose of the Second Pair of Terminals:

1. Reducing Current Load on Cables: Large inverters require higher current at the DC input to deliver significant AC power. By using a second pair of terminals, the total current is distributed across multiple cables, reducing the load on each cable and minimizing heat generation and resistance losses.
2. Improving Voltage Stability: A single pair of cables can experience voltage drops due to resistance, especially over longer runs. Adding a second pair of terminals allows for parallel connections that reduce the total resistance, maintaining a more stable DC voltage at the inverter input.
3. Enhancing Safety: Splitting the current across multiple cables can also reduce overheating and the risk of damage to a single cable or terminal.

Where They Are Going:

The second pair of terminals is typically connected to:

1. The Same Battery Bank: Both pairs of cables (positive and negative) are connected to the same DC power source, such as a battery bank or a solar charge controller. This ensures that the current drawn is distributed evenly.
2. Both pairs of cables (positive and negative) are connected to the same DC power source, such as a battery bank or a solar charge controller. This ensures that the current drawn is distributed evenly.
3. Parallel Batteries: In setups with multiple batteries in parallel, the second pair of terminals might connect to a different battery in the same bank. This helps balance the load across the batteries, improving their lifespan and performance.
4. In setups with multiple batteries in parallel, the second pair of terminals might connect to a different battery in the same bank. This helps balance the load across the batteries, improving their lifespan and performance.
5. Busbars: If the system uses a busbar (a centralized connection point), the second pair of terminals might connect directly to the positive and negative busbars, which aggregate connections from multiple batteries.
6. If the system uses a busbar (a centralized connection point), the second pair of terminals might connect directly to the positive and negative busbars, which aggregate connections from multiple batteries.
7. DC Distribution Panel: In some cases, the second pair might connect to a DC distribution panel, which serves as an intermediary for routing power from multiple sources to the inverter.
8. In some cases, the second pair might connect to a DC distribution panel, which serves as an intermediary for routing power from multiple sources to the inverter.

Key Considerations:

• Cable Sizing: Ensure that all cables are appropriately sized for the total current to prevent overheating and losses.
• Proper Connections: Secure and clean connections at the terminals are crucial to avoid resistance build-up.
• Fusing: Each pair of cables should be individually fused for protection against short circuits.

This dual-terminal configuration is a design enhancement for handling the high current demands of big-wattage inverters safely and efficiently.
