500W Modified Sine Wave DC to AC Voltage Converter
Modified Sine Wave
At A Glance
- cheap 500W Modified Sine Wave Power Inverter for Truck DC to AC
- Warranty: 1 Year
- Brand: NA
- Continuous Output: 300W
- DC 12V/24V to AC 110V/220V
- 50Hz/60Hz
- Peak Power 500W
- Insufficient Power
OEM and customised builds available, even for small batches. Warranty and certification details are confirmed per order.
Product Description
About This Model
500W Modified Sine Wave Voltage Converter
| Model | M500B (300W, External Fuses) |
|---|---|
| Input Voltage: | DC12V(10-14.8V) / DC24V(18-28V) |
| Output Voltage: | AC220V / AC110V / AC120V / AC240V ±8% |
| Continuous Power output: | 300W |
| Surge Power Capacity: | 500W |
| Output Waveform: | Modified Sine Wave |
| Frequency: | 50Hz/60Hz ±2Hz |
| Availability Power: | >90.5% |
| Low Voltage Range: | <DC 9.6V / DC 18.5V |
| High Voltage Range: | >DC 14.8V / DC 28.5 |
| No Load current: | <0.4A |
| Over Load Protection: | >310W |

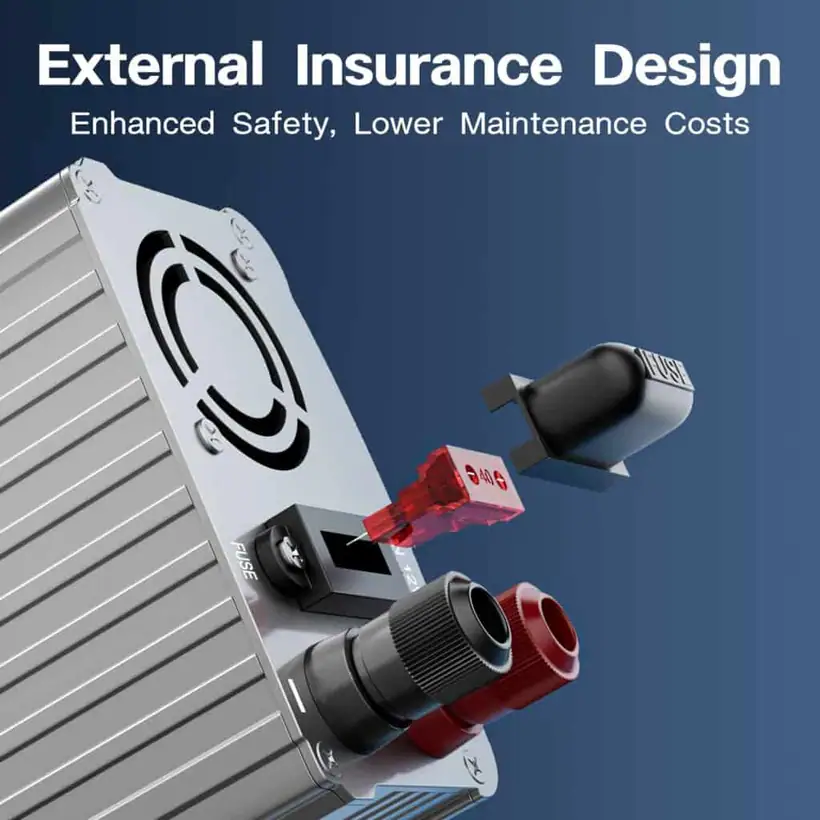

| Fuse: | 2*10A (external) |

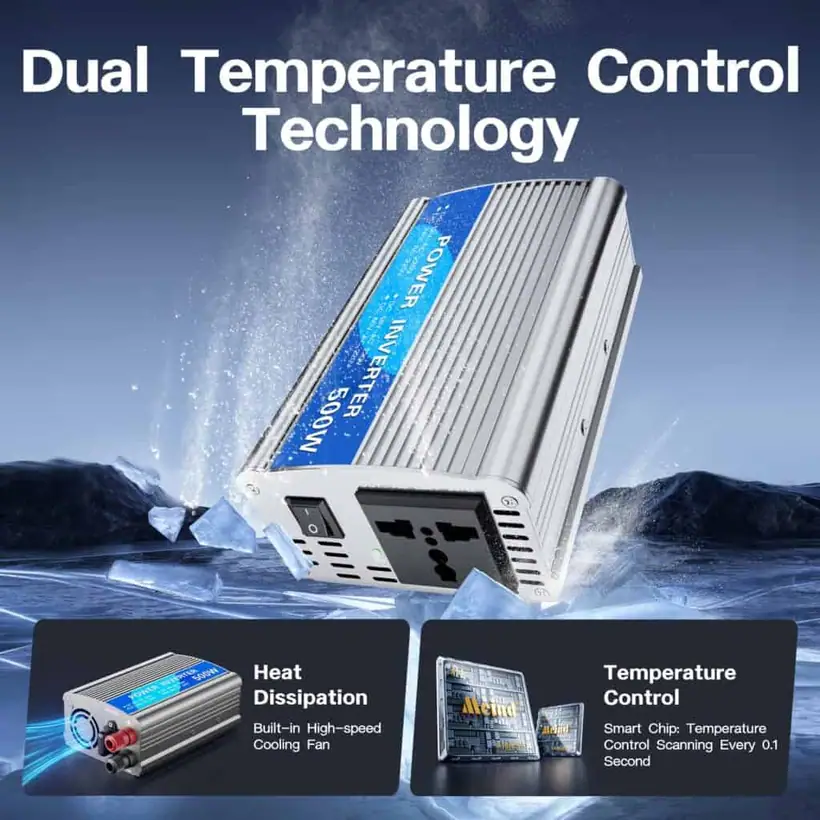

| Cooling Fan: | Yes |
| USB Port: | NA |
| Product Packing: | Golor Box |

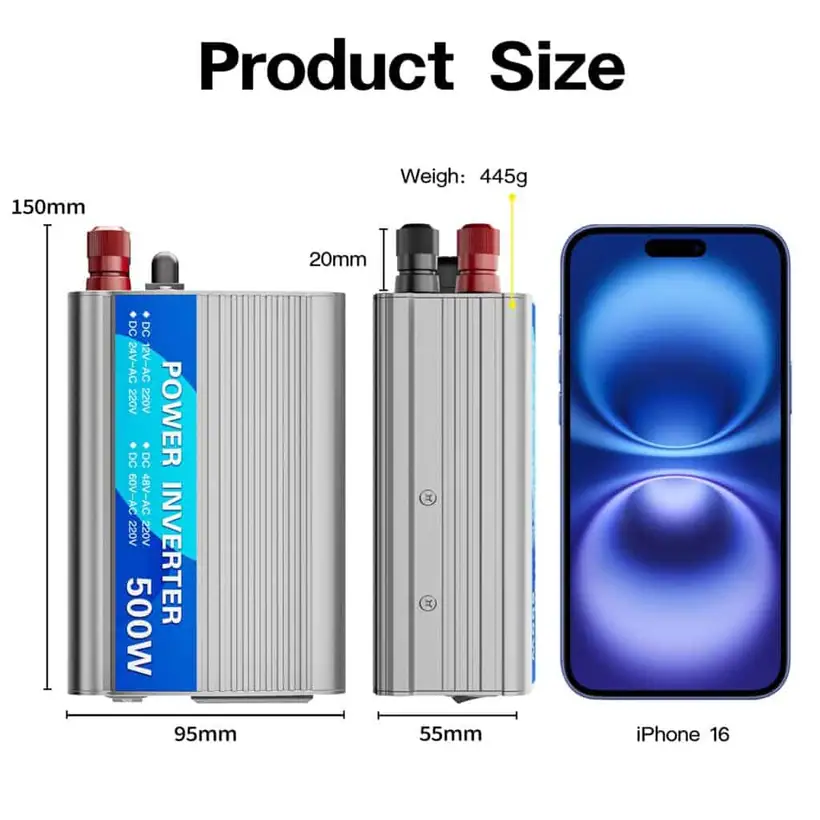

| Product Size: | 140*87*47mm |
| Product N.W/G.W: | 0.67kg/0.8kg |
| Carton Packing: | 40PCS/CTN |
| Carton Weight: | 30kg |
| Carton Size: | 51*40*39cm |

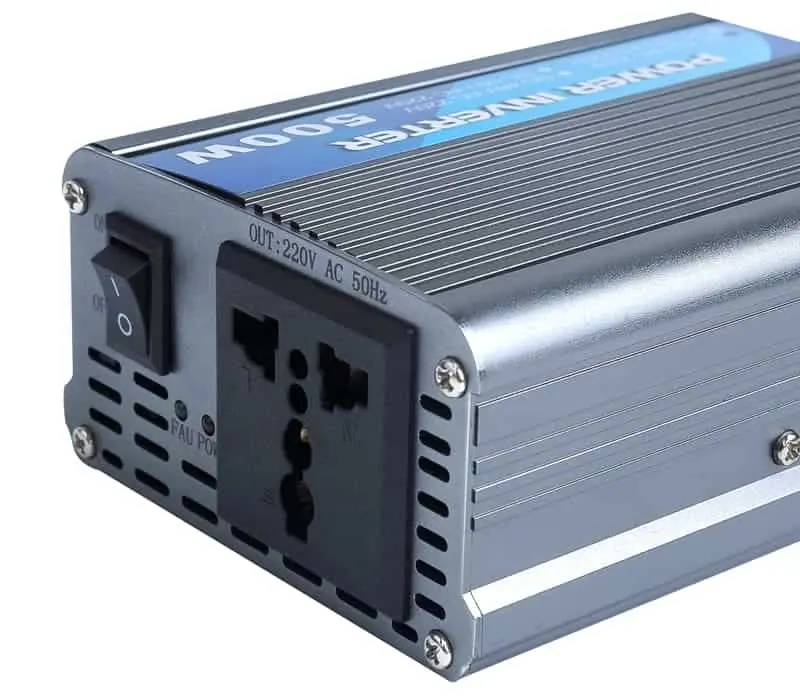

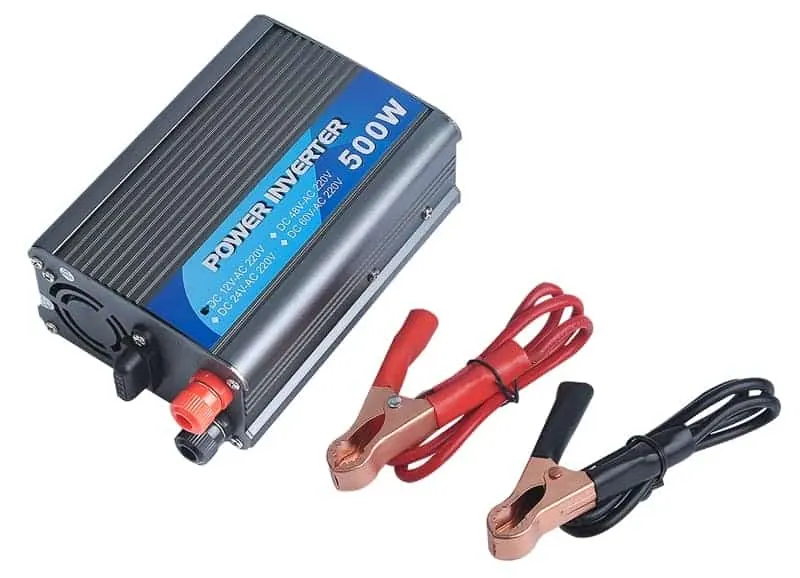

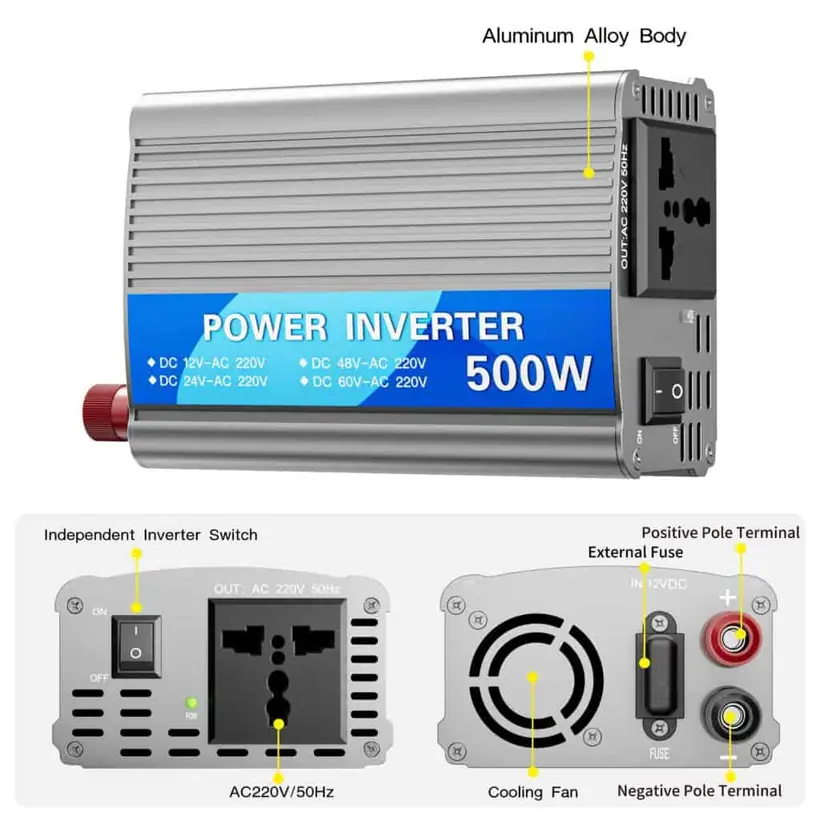

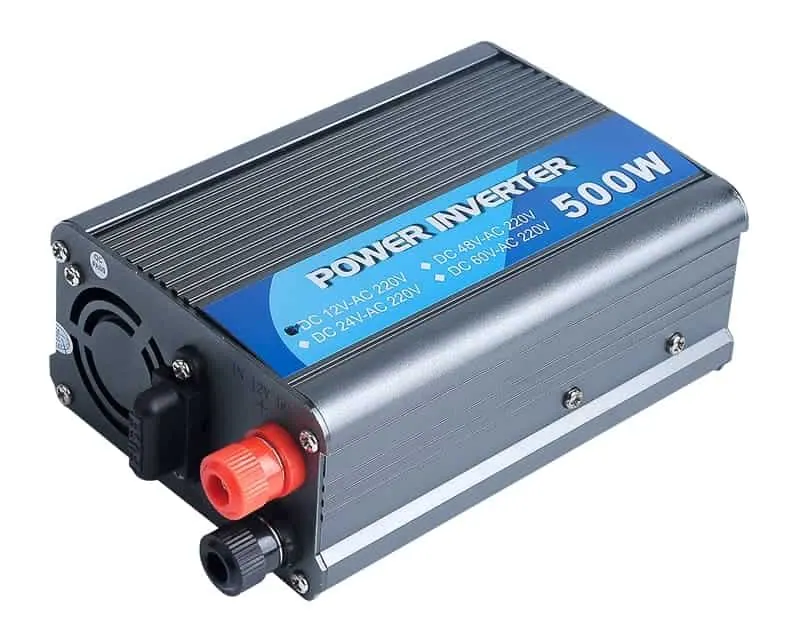

500W Inverters for Truck with Modified Sine Wave pictures:
Have you ever wondered will a modified sine wave power inverter damage my devices?
Will A Modified Sine Wave Inverter Damage My Electronics?
New to power inverters or unsure which size fits? The Meind knowledge centre covers how DC to AC conversion works, sizing, cabling and installation, and the estimated watts table lists typical appliance loads.
Product Details
Detail Views and Feature Shots
