200W Power Inverter for Car DC to AC Converter with USB Universal Socket
Modified Sine Wave
At A Glance
- High Quality 200W Modified Sine Wave Power Inverter for Car DC to AC
- Warranty: 1-Year
- Brand: Meind
- Continuous Output: 200W
- DC 12V/24V to AC 110V/220V
- 50Hz/60Hz
- Surge Power 400W
- USB Port
OEM and customised builds available, even for small batches. Warranty and certification details are confirmed per order.
Product Description
About This Model
200W Power Inverter for Car Modified Sine Wave DC to AC Converter has the advantages of being compact and lightweight. Inverter cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. AC converter can supply 220v or 110V AC directly from the car inverters output socket.
Meind 200W power inverter has been updated from IC to single-chip control. Now it has better quality, more accurate output frequency and voltage, and less heat and fault.
Six protection of Meind 200W Power Inverter for Car Modified Sine Wave DC to AC Converter:
1. Over Load Protection: When the connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.
2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.
3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note that there may be damage to the machine.
4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.
5. Reverse Protection: When the car inverter link reverses to the battery, the inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.
6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.
| Inverter Model | M8203 (200W) |
|---|---|
| 1. Input Voltage: | DC12V(10-14.8V) / DC24V(18-28V) |
| 2. Output Voltage: | AC220V / AC110V / AC120V / AC240V ±8% |
| 3. Continuous Power output: | 200W |
| 4. Surge Power Capacity: | 400W |
| 5. Output Waveform: | Modified Sine Wave |
| 6. Frequency: | 50Hz/60Hz +/-4 |
| 7. Availability Power: | >90.5% |
| 8. Low Voltage Range: | <DC 9.6V / DC 18.5V |
| 9. High Voltage Range: | >DC 14.8V / DC 28.5 |
| 10. No Load current: | <0.4A |
| 11. Over Load Protection: | >200W |
| 12. Over Heat Protection: | >60 Degree Centigrade |
| 13. Fuse: | 1*15A |
| 14. Cooling Fan: | Yes |
| 15. USB Port: | 5V-2.1A |
| 16. Product Packing: | Blister card |
| 17. Product Size: | 125*70*46mm |
| 18. Product N.W/G.W: | 0.49kg/0.49kg |
| 19. Carton Packing: | 40PCS/CTN |
| 20. Carton Weight: | 19kg |
| 21. Carton Size: | 51*38*38cm |

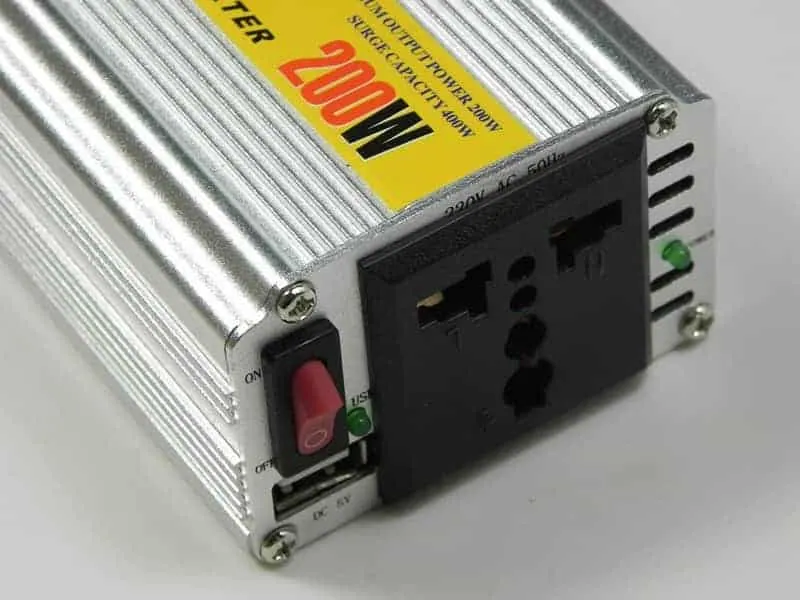

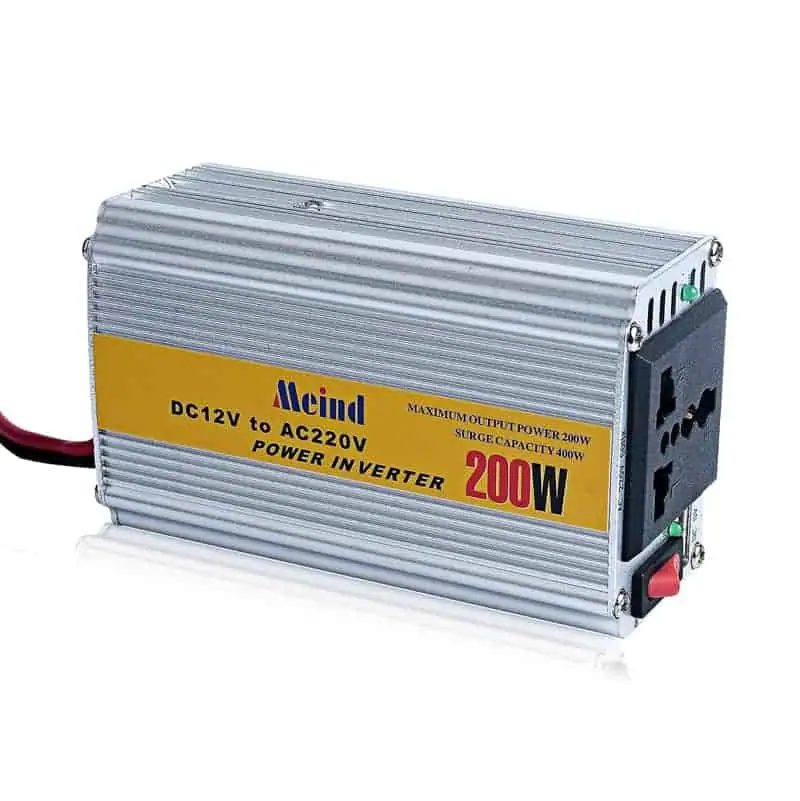

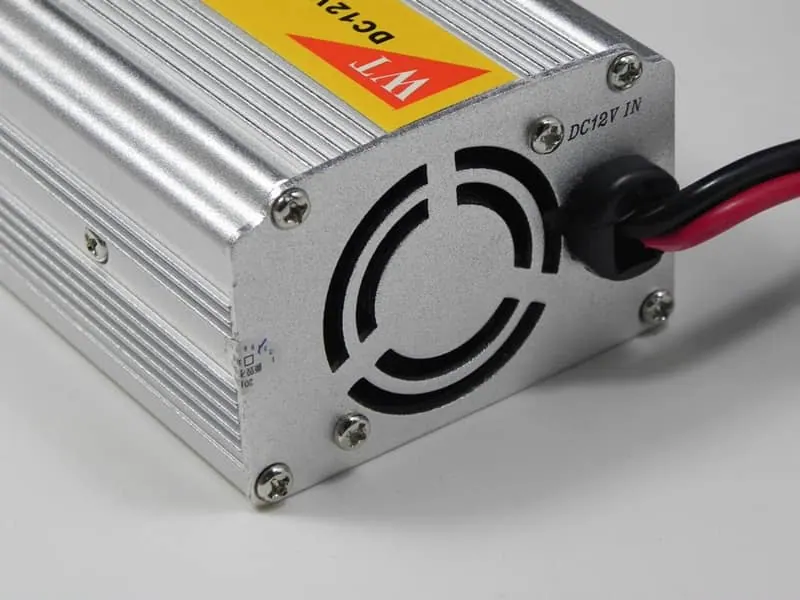

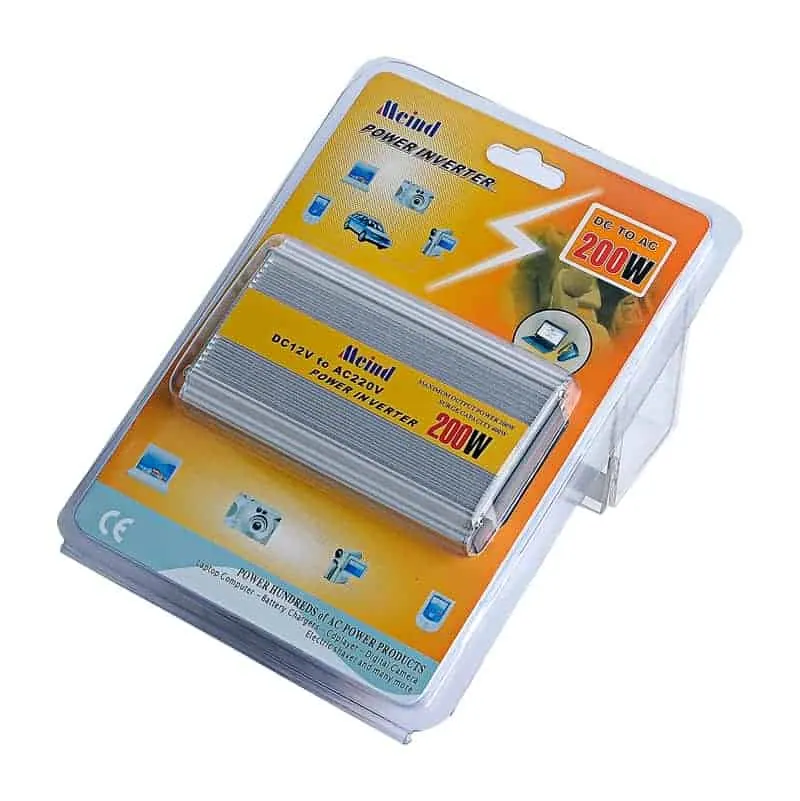

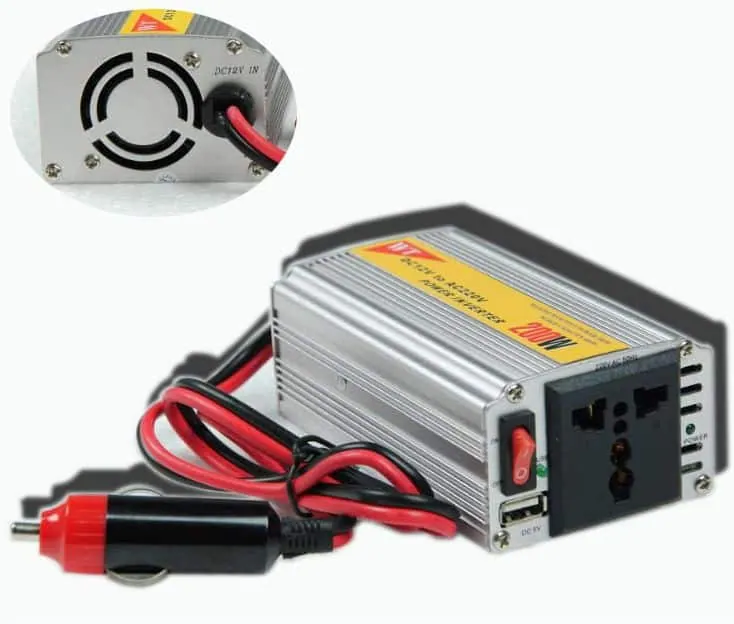

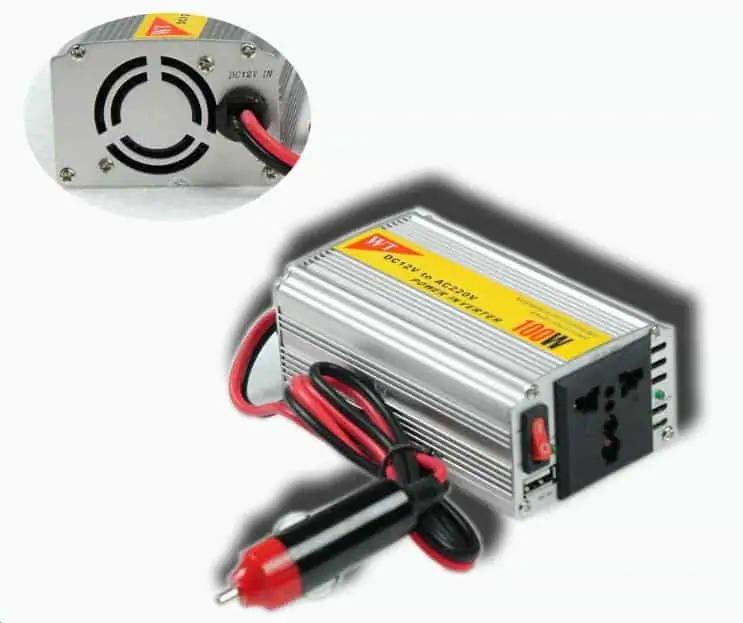

200W Power Inverter for Car Modified Sine Wave pictures:
100W Modified Sine Wave Power Inverter
Do you wonder what is the different between Meind power inverter and others? Please check this article on our website:
Why You Can Always Find Cheaper Inverters In the Market?
New to power inverters or unsure which size fits? The Meind knowledge centre covers how DC to AC conversion works, sizing, cabling and installation, and the estimated watts table lists typical appliance loads.
