150W Power Inverter for Truck with American Socket
Modified Sine Wave
At A Glance
- New Arrive 150W Power Inverter for Truck Modified Sine Wave with American Socket
- DC to AC
- Warranty: 1-Year
- Brand: Meind
- Continuous Output: 150W
- DC 12V/24V to AC 110V
- 50Hz/60Hz
- Peak Power 300W
OEM and customised builds available, even for small batches. Warranty and certification details are confirmed per order.
Product Description
About This Model
It is a new arrival. It is highly cost-effective. It also has dual USB 2.1A output and the advantages of being Compact and lightweight. Inverter cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. AC converter can supply 110V AC directly from the car inverters output socket. For more customize info, please contact us.
You can also buy 150W Modified Sine Wave Power Inverter on our B2C online store: http://www.aliexpress.com/store/1147249
6 protections of Meind 150W Power Inverter for Car:
1. Over Load Protection: When the connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.
2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.
3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high noting that there may be damage to the machine.
4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.
5. Reverse Protection: When the car inverter link reverses to the battery, the inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.
6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.
| Inverter Model | M6500 (150W) |
|---|---|
| 1. Input Voltage: | DC12V(10-14.8V) / DC24V(18-28V) |
| 2. Output Voltage: | AC220V / AC110V / AC120V / AC240V ±8% |
| 3. Continuous Power output: | 150W |
| 4. Surge Power Capacity: | 300W |
| 5. Output Waveform: | Modified Sine Wave |
| 6. Frequency: | 50Hz/60Hz +/-4 |
| 7. Availability Power: | >90.5% |
| 8. Low Voltage Range: | <DC 9.6V / DC 18.5V |
| 9. High Voltage Range: | >DC 14.8V / DC 28.5 |
| 10. No Load current: | <0.4A |
| 11. Over Load Protection: | >150W |
| 12. Over Heat Protection: | >60 Degree Centigrade |
| 13. Fuse: | 1*15A |
| 14. Cooling Fan: | Yes |
| 15. USB Port: | 5V-500mA |
| 16. Product Packing: | Blister card |
| 17. Product Size: | 125*70*46mm |
| 18. Product N.W/G.W: | 0.32kg/0.4kg |
| 19. Carton Packing: | 50PCS/CTN |
| 20. Carton Weight: | 19kg |
| 21. Carton Size: | 51*40*39cm |

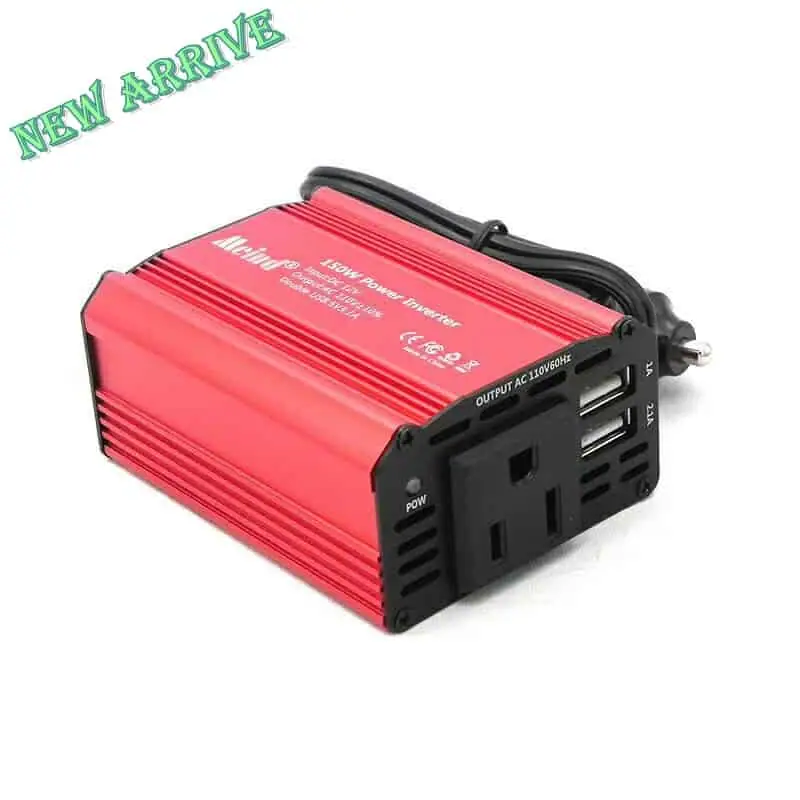

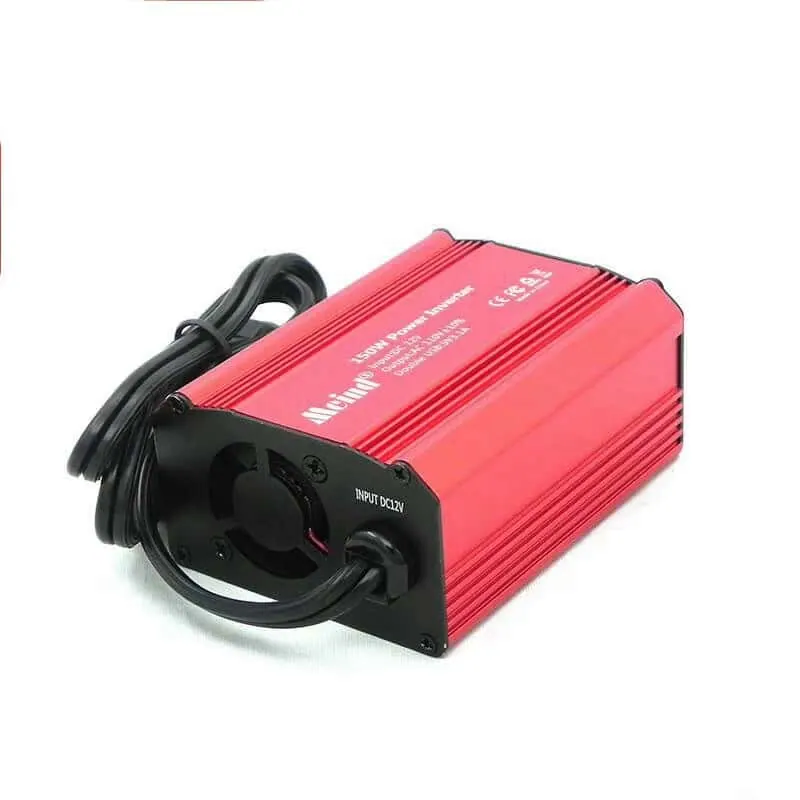

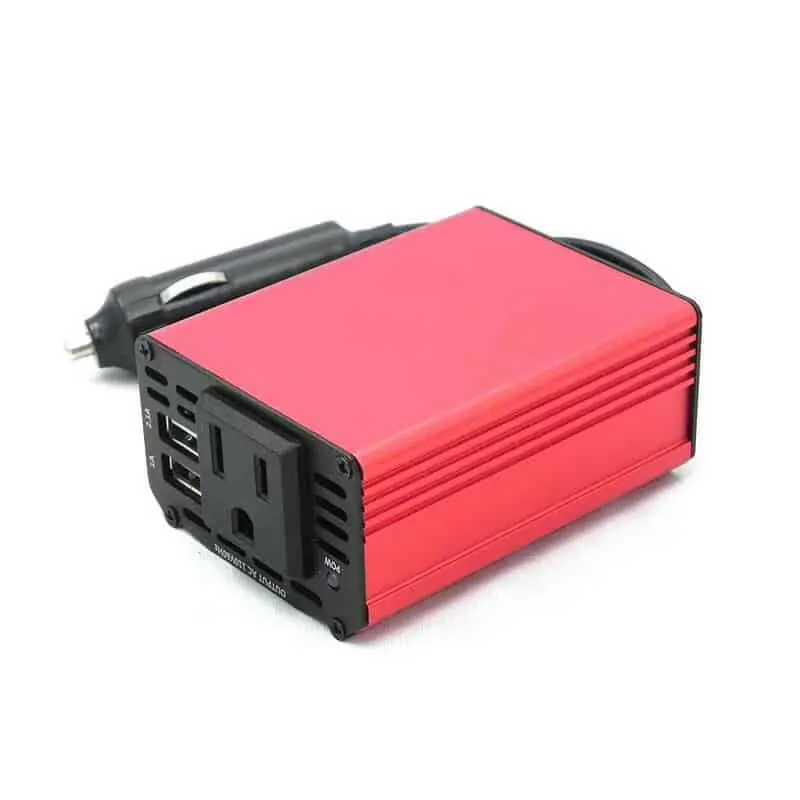

150W Power Inverter for Truck Modified Sine Wave with American Socket pictures:
Do you wonder what is the different between Meind power inverter and others? Please check this article on our website:
Why You Can Always Find Cheaper Inverters In the Market?
Inverter Model M6500 (150W) 1. Input Voltage: DC12V(10-14.8V) / DC24V(18-28V) 2. Output Voltage: AC110V / AC120V ±8% 3. Continuous Power output: 150W 4. Surge Power Capacity: 300W 5. Output Waveform: Modified Sine Wave 6. Frequency: 50Hz/60Hz +/-4 7. Availability Power: >90.5% 8. Low Voltage Range: DC 14.8V / DC 28.5 10. No Load current: <0.4A 11. Over Load Protection: >150W 12. Over Heat Protection: >60 Degree Centigrade 13. Fuse: 1*20A 14. Cooling Fan: Yes 15. USB Port: Dual 5V-2.1A 16. Product Packing: Blister Card 17. Product Size: 140*87*47mm 18. Product N.W/G.W: 0.31kg/0.39kg 19. Carton Packing: 40PCS/CTN 20. Carton Weight: 16kg 21. Carton Size: 51*38.8*38cm
New to power inverters or unsure which size fits? The Meind knowledge centre covers how DC to AC conversion works, sizing, cabling and installation, and the estimated watts table lists typical appliance loads.
Product Details
Detail Views and Feature Shots
Related Products
Other Models in Modified Sine Wave
6000 Watt Inverter DC 12V/24V/48V to AC 110V/220V Modified Sine Wave with LCD Display
DC to AC · Warranty: 1 Year
View Product →
5000W DC12V/24V/48V to AC 110V/220V Modified Sine Wave Power Inverter with LCD Display
DC to AC · Warranty: 1 Year
View Product →
4000W DC 12V/24V/48V to AC 110V/220V Modified Sine Wave Power Inverter with LCD Display
DC to AC · Warranty: 1 Year
View Product →
3000W Power Inverters for Home with Universal Socket
DC to AC · Warranty: 1 Year
View Product →
DC 12V/24V to AC 110V/220V Modified Sine Wave 3000 Watt Inverter with Charger&UPS LCD Display
Warranty: 1 Year · Peak Output: 6000W
View Product →
DC 12V/24V to AC 110V/220V Modified Sine Wave 3000W Power Inverter with LCD Display
Warranty: 1 Year · Continuous Output: 3000W
View Product →Knowledge
Reading That Helps You Specify This
150W Power Inverter Order is Finished
We just finished a 150W power inverter order for a AU customer.
Read Article →5000W Pure Sine Wave Power Inverter (UK Socket, 10000W Peak)
Our 5000W Pure Sine Wave Inverter delivers clean, stable, and reliable AC power for demanding applications. With a 10000W peak surge capacity…
Read Article →How DC/AC Power Inverters Work？Inverter Installation
How DC/AC Power Inverters Work？Inverter Installation
Read Article →FAQ
General Questions
Do you accept OEM and customised orders?
Yes. Meind is dedicated to providing customised and OEM service even for a small batch, and there are already plenty of customised models to choose from.
Which certifications do the products carry?
Meind products are certified and approved by most certification organisations such as CE, RoHS and UL, and the company is qualified to ISO 9000.
How quickly do you reply to an enquiry?
We reply to email within 16 hours, and we work on working-day evenings to cover the time difference.
How do I choose the right inverter size?
Add together the watts of every appliance you want to run at the same time, then add about 15 percent headroom. The Estimated Watts page lists typical appliance wattages.
What is the warranty?
Warranty is one year on the models where it is stated on the product page. For part of the models a replacement is sent if a quality problem occurs, with no return needed.
