150W Modified Sine Wave Power Inverter Car Inverter with Cup-Shaped
Modified Sine Wave
At A Glance
- New Arrive 150W Modified Sine Wave Voltage Converter for Car with Cup Shape
- DC to AC
- Warranty: 1-Year
- Brand: Meind
- Continuous Output: 150W
- DC 12V/24V to AC 110V/220V
- 50Hz/60Hz
- Surge Power 300W
OEM and customised builds available, even for small batches. Warranty and certification details are confirmed per order.
Product Description
About This Model

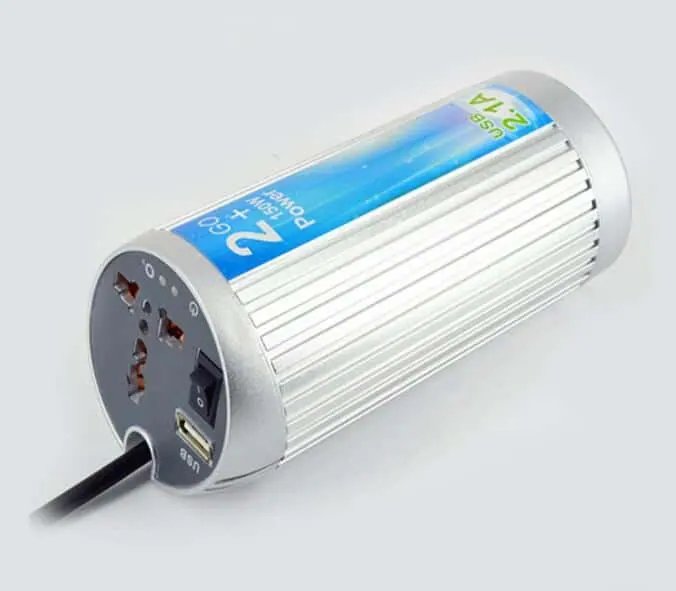

150W Modified Sine Wave Power Inverter Converter with Cup-Shaped

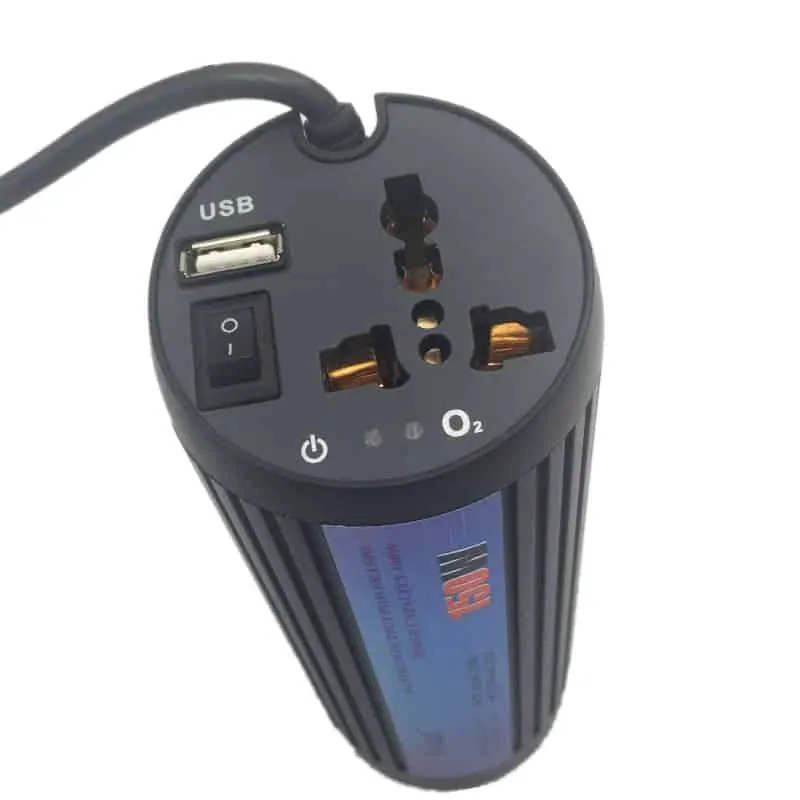

It is a new arrival. It is highly cost-effective. It has one USB 5V/3A output and one 110V or 220V output socket, and the advantages of Compact and lightweight. It is equipped with a switch button, to let you turn it off to save battery power. The inverter’s cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. AC converter can supply 220V AC directly from the car inverters output socket. For more customize info, please contact us.
5 protections of Meind 150W Power Inverter for Car:
1. Over Load Protection: When the connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.
2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.
3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note that there may be damage to the machine.
4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.
5. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.
| Inverter Model | MY150 (150W, Cup Share) |
|---|---|
| 1. Input Voltage: | DC12V(10-14.8V) / DC24V(18-28V) |
| 2. Output Voltage: | AC220V / AC110V / AC120V / AC240V ±8% |
| 3. Continuous Power output: | 150W |
| 4. Surge Power Capacity: | 300W |
| 5. Output Waveform: | Modified Sine Wave |
| 6. Frequency: | 50Hz/60Hz +/-4 |
| 7. Availability Power: | >90.5% |
| 8. Low Voltage Range: | <DC 9.6V / DC 18.5V |
| 9. High Voltage Range: | >DC 14.8V / DC 28.5 |
| 10. No Load current: | <0.4A |
| 11. Over Load Protection: | >170W |
| 12. Over Heat Protection: | >60 Degree Centigrade |
| 13. Fuse: | 1*15A |
| 14. Cooling Fan: | Yes |
| 15. USB Port: | 5V/3A |

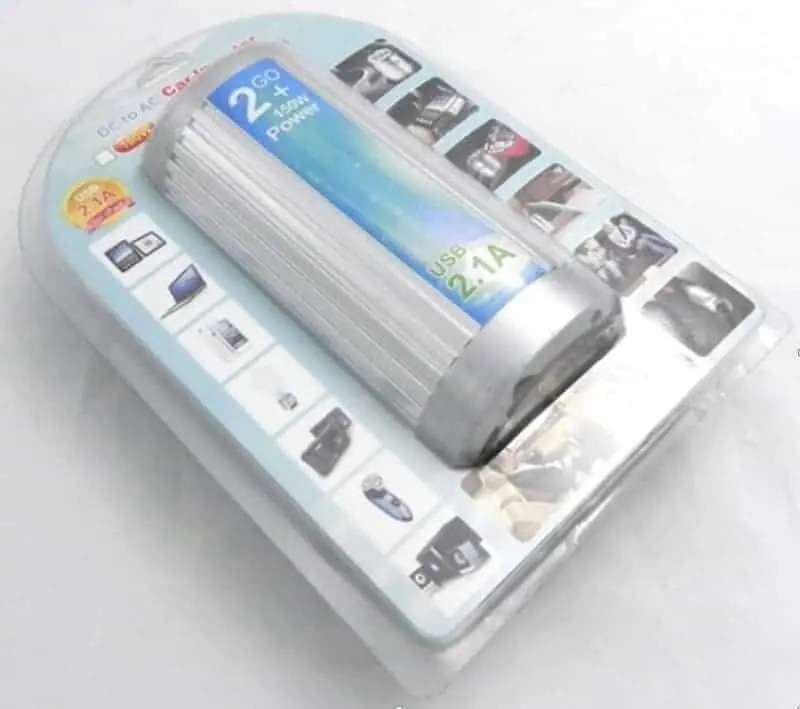

| 16. Product Packing: | Blister Card/Gift Box |
| 17. Product Size: | 125*70*46mm |
| 18. Product N.W/G.W: | 0.36kg/0.38kg |
| 19. Carton Packing: | 50PCS/CTN |
| 20. Carton Weight: | 20kg |
| 21. Carton Size: | 51*38.8*39cm |

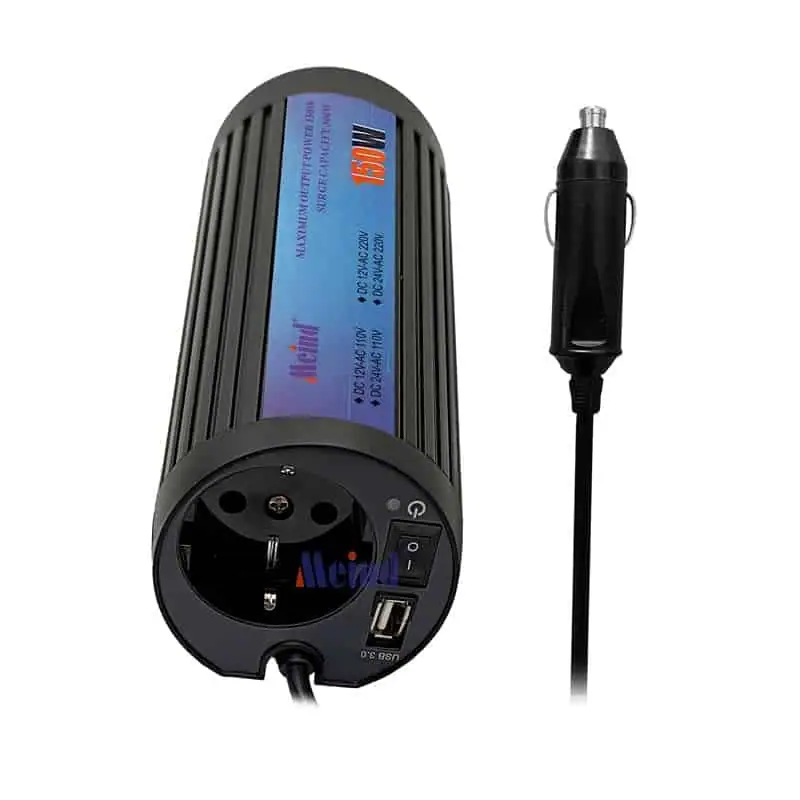

150W Power Inverter with EU Socket:
Welcome to check our other inverters: Modified Sine Wave Inverter, Pure Sine Wave Inverter
Inverter Model MY150 (150W) 1. Input Voltage: DC12V(10-14.8V) / DC24V(18-28V) 2. Output Voltage: AC220V / AC110V / AC120V / AC240V ±8% 3. Continuous Power output: 150W 4. Surge Power Capacity: 300W 5. Output Waveform: Modified Sine Wave 6. Frequency: 50Hz/60Hz +/-4 7. Availability Power: >90.5% 8. Low Voltage Range: DC 14.8V / DC 28.5 10. No Load current: <0.4A 11. Over Load Protection: >150W 12. Over Heat Protection: >60 Degree Centigrade 13. Fuse: 1*15A 14. Cooling Fan: Yes 15. USB Port: 5V/2.1A 16. Product Packing: Blister Card/Gift Box 17. Product Size: 125*70*46mm 18. Product N.W/G.W: 0.36kg/0.38kg 19. Carton Packing: 50PCS/CTN 20. Carton Weight: 20kg 21. Carton Size: 51*38.8*39cm
New to power inverters or unsure which size fits? The Meind knowledge centre covers how DC to AC conversion works, sizing, cabling and installation, and the estimated watts table lists typical appliance loads.
