1000W 12v to 240v Power Inverter with Outside Fuses Universal/Brazil Socket
Modified Sine Wave
At A Glance
- 1000W Modified Sine Wave Power Inverter DC to AC
- Warranty: 1 Year
- Brand: NA
- Continuous Output: 500W
- DC 12V/24V to AC 110V/220V
- 50Hz/60Hz
- Peak Power 1000W
- Insufficient Power
OEM and customised builds available, even for small batches. Warranty and certification details are confirmed per order.
Product Description
About This Model
Peak 1000W 12v to 240v Inverter Modified Sine Wave with Universal/Brazil Socket
It has the advantages of being compact and lightweight. Inverter cigarette lighter plug or battery cable can easily connect to a vehicle’s battery. AC converter can supply 220v or 110V AC directly from the car inverters output socket. For more customize info, please contact us.
6 protections of economy 1000W Power Inverters with Modified Sine Wave:
1. Over Load Protection: When the connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.

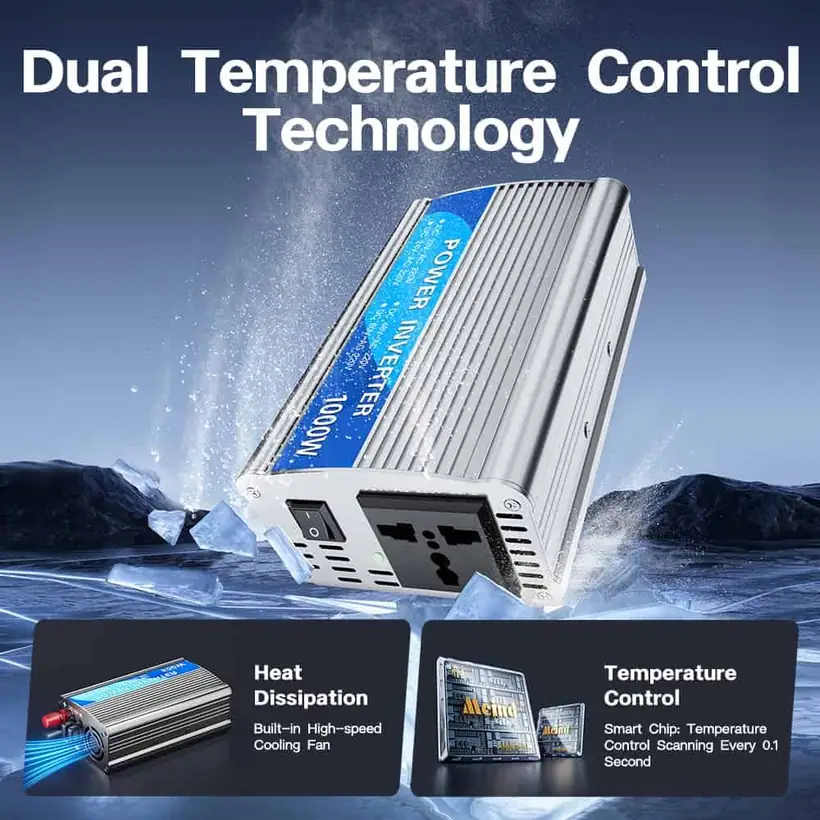

2. Over Heat Protection: As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.
3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high noting that there may be damage to the machine.
4. Low-Voltage Protection: When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.
5. Reverse Protection: When the car inverter link reverses to the battery, the inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.
6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.
| Model | M1000B (500W, External Fuses) |
|---|---|
| Input Voltage: | DC12V(10-14.8V) / DC24V(18-28V) |
| Output Voltage: | AC220V / AC110V / AC120V / AC240V ±8% |
| Continuous Power output: | 500W |
| Surge Power Capacity: | 1000W |
| Output Waveform: | Modified Sine Wave |
| Frequency: | 50Hz/60Hz ±2Hz |
| Availability Power: | >90.5% |
| Low Voltage Range: | <DC 9.6V / DC 18.5V |
| High Voltage Range: | >DC 14.8V / DC 28.5 |
| No Load current: | <0.4A |
| Over Load Protection: | >510W |

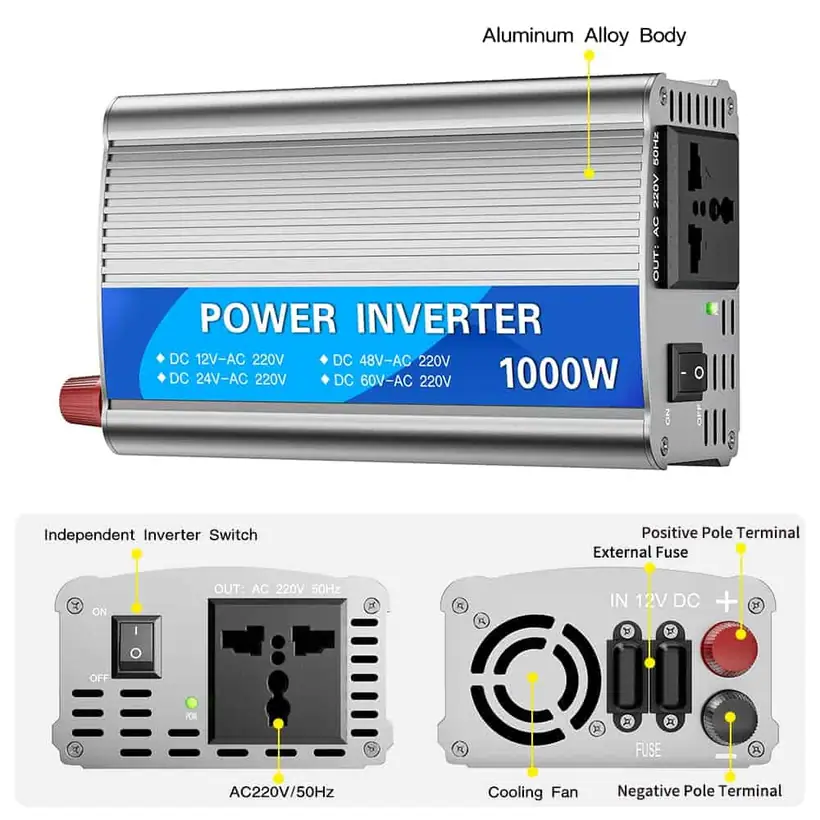

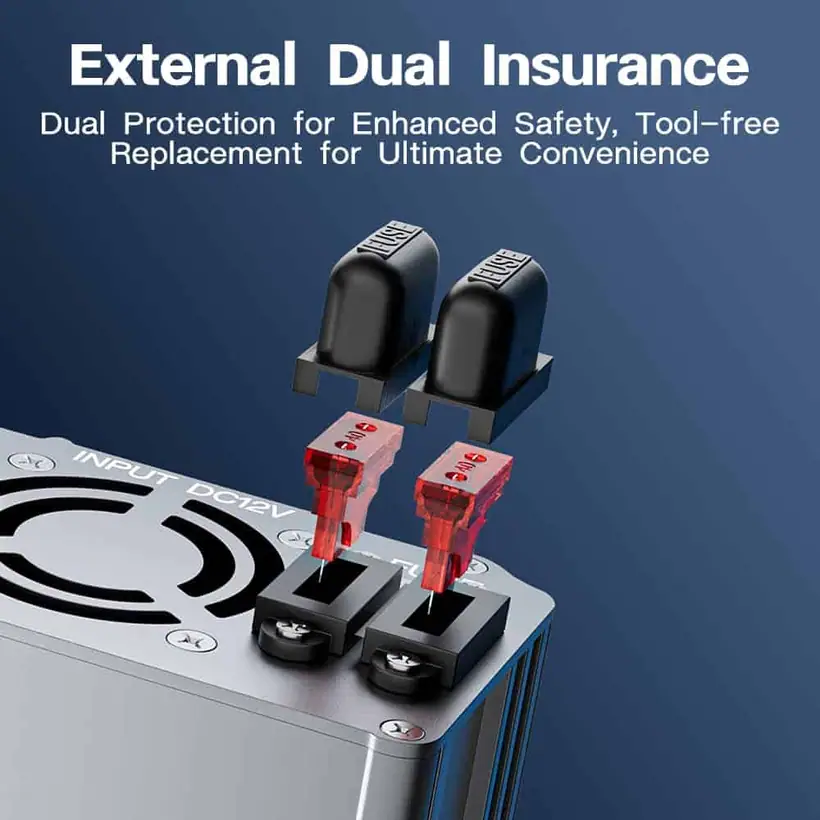

| Fuse: | 2*15A (external) |
| Cooling Fan: | Yes |
| USB Port: | NA |
| Product Packing: | Golor Box |

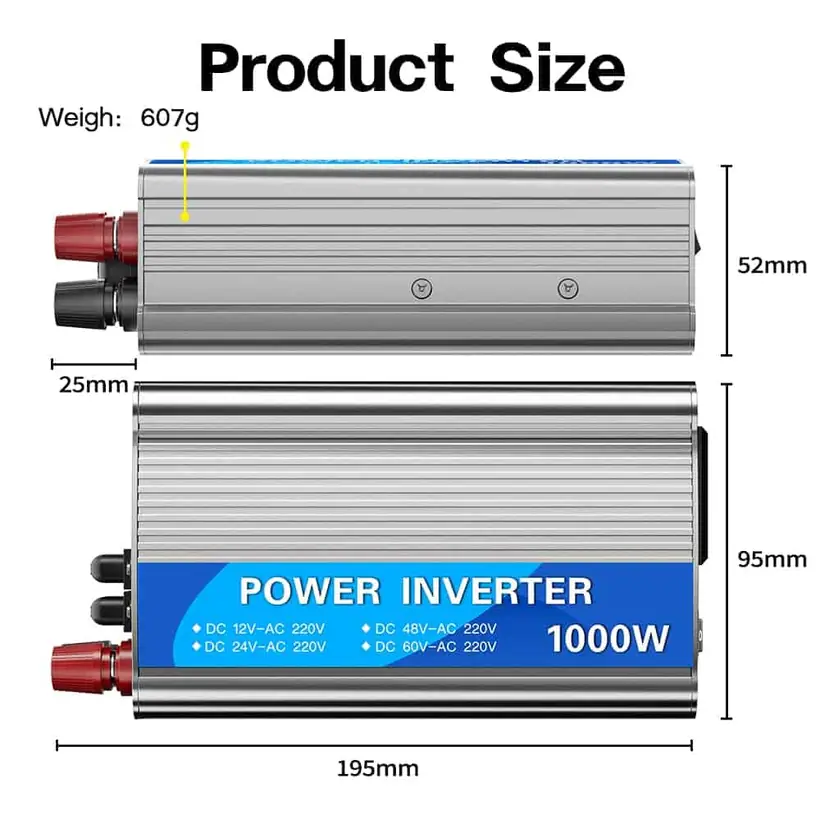

| Product Size: | 190*95*55mm |
| Product N.W/G.W: | 0.9kg/1.1kg |
| Carton Packing: | 20PCS/CTN |
| Carton Weight: | 22kg |
| Carton Size: | 51*40*39cm |

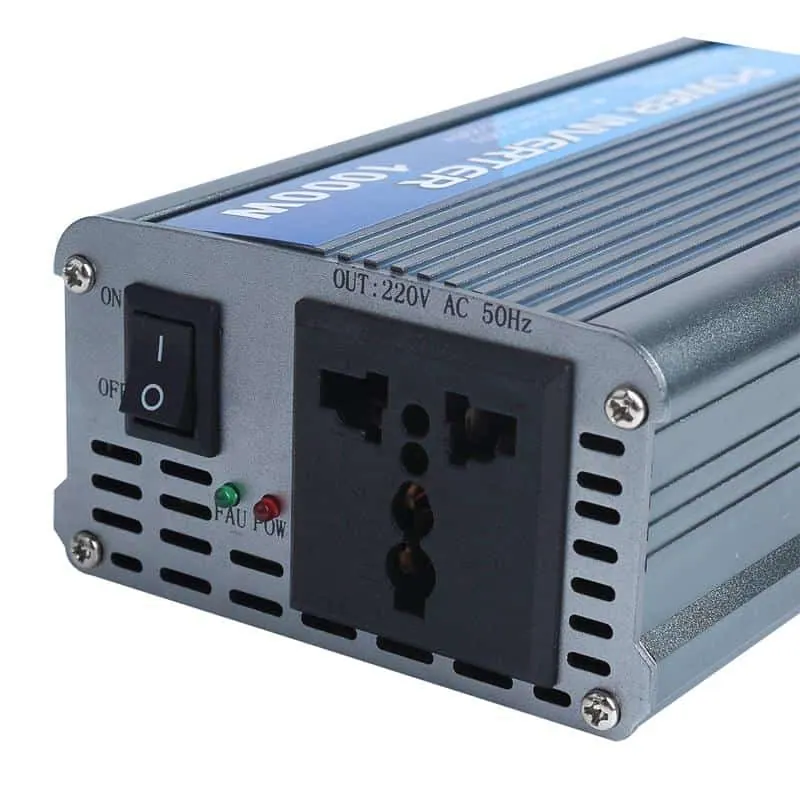

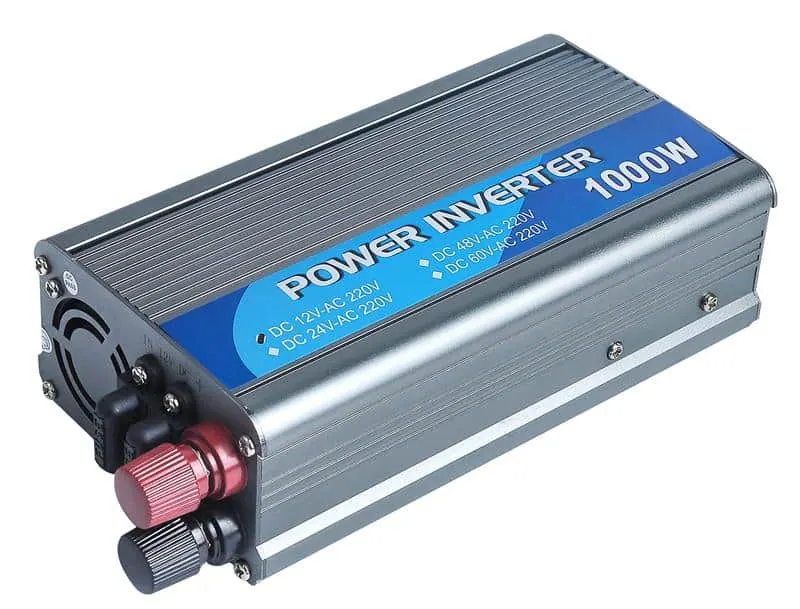

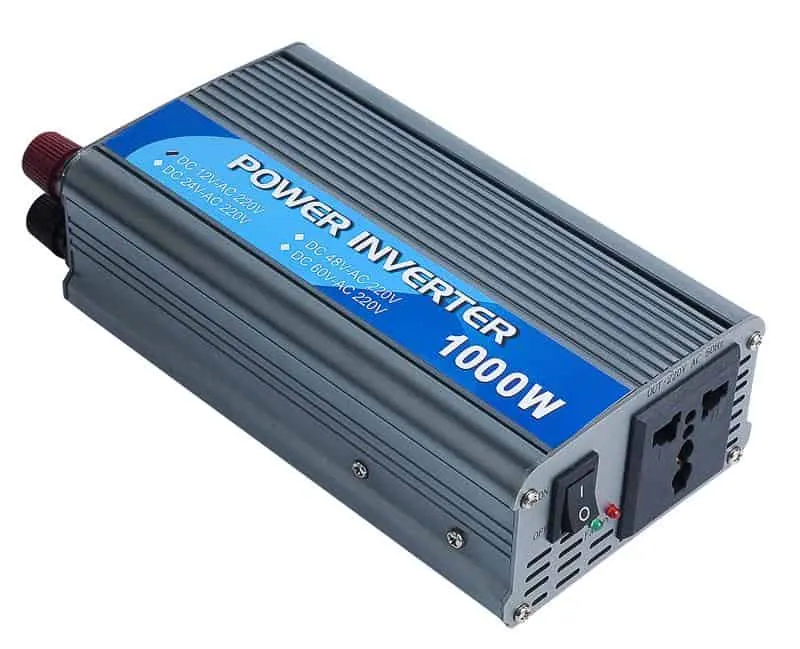

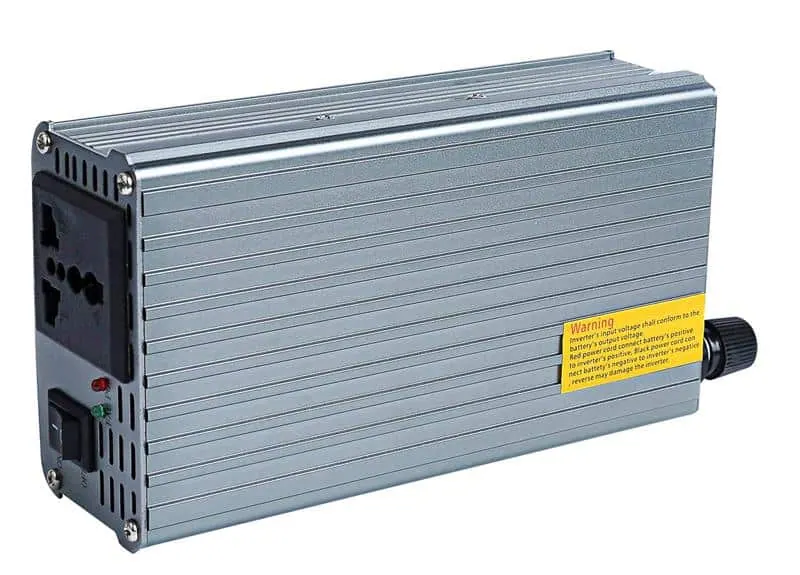

Economy 1000W Power Inverters with Modified Sine Wave pictures:

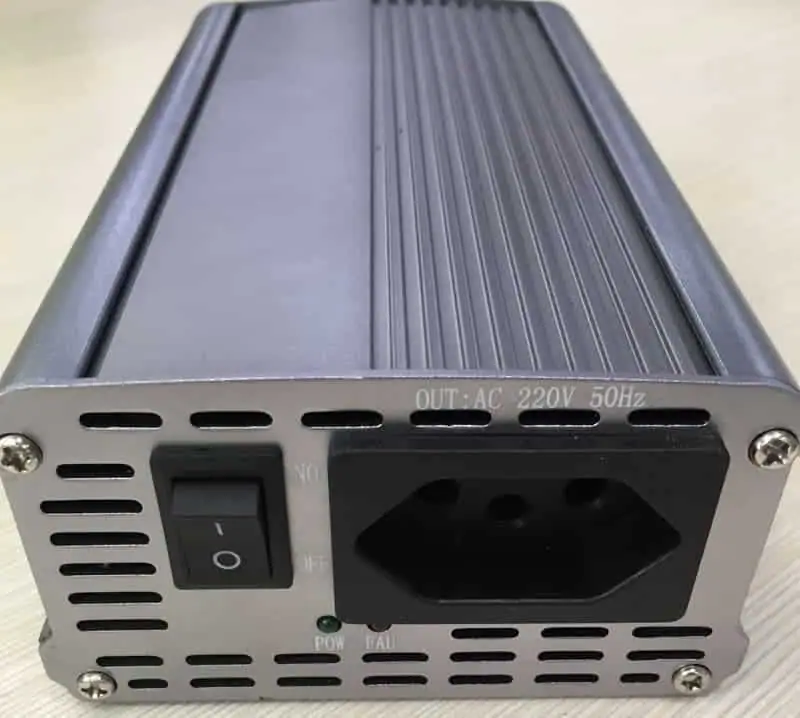

1000B/500W modified sine wave inverter with Brazil socket
Have you ever wondered will a modified sine wave power inverter damage my devices?
Will A Modified Sine Wave Inverter Damage My Electronics?
