Water filtration FRP tanks

Water filtration FRP tanks FRP Pressure Tanks water treatment filters Materials Inner Shell: Seamless Polyethylene Outer Sheel: Reinforced Fiberglass Operating Conditions Max. Pressure: 150 psi Max. Temperature: 49 ℃ Max. Vacuum: 5″ Hg N0..

Range: FRP Tanks
Supplier: Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
Customisation: Micron rating, length and end cap specified to your housing
Photographs on file: 1

Call +86 137 6415 7715 Contact Details

Details

Full Description

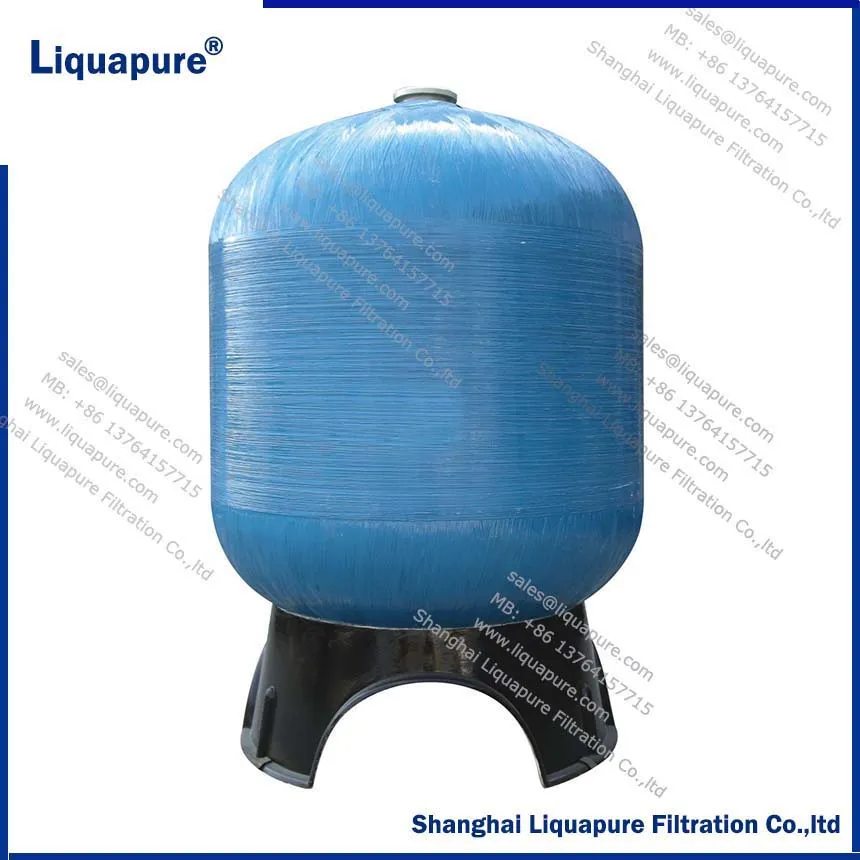

Water filtration FRP tanks

FRP Pressure Tanks

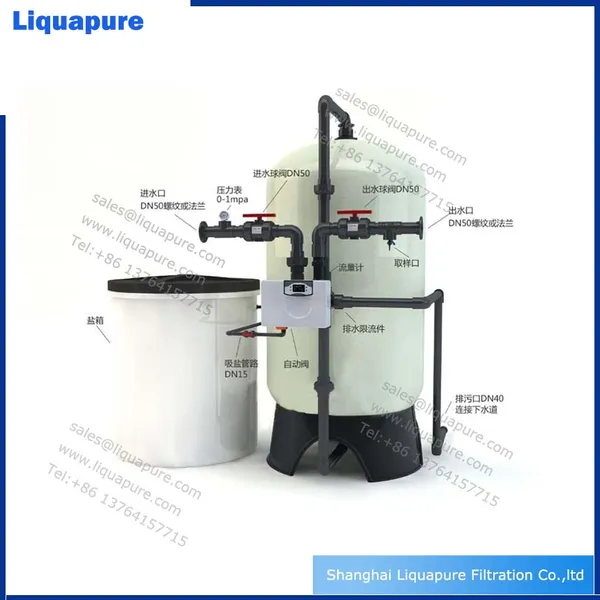

water treatment filters					Materials
						Inner Shell: Seamless Polyethylene
						Outer Sheel: Reinforced Fiberglass
					Operating Conditions
						Max. Pressure: 150 psi
						Max. Temperature: 49 ℃
						Max. Vacuum: 5″ Hg

N0.	Size（inch）	Nominal	Opening		Volume	Dimensions
N0.	Size（inch）	Size	Top	Bottom	Liter	A(mm)	B(mm)	C(mm)	D(mm)
1	6*13	150*330	2.5”	/	4.6	337	φ165		φ155
2	6*17	150*450	2.5”	/	6.6	435	φ165		φ155
3	6*35	150*890	2.5”	/	13.7	918	φ165		φ155
4	7*17	180*450	2.5”	/	8.6	438	φ197		φ182
5	7*35	180*890	2.5”	/	20.1	895	φ197		φ182
6	7*44	180*1100	2.5”	/	25.6	1125	φ197		φ182
7	8*17	200*450	2.5”	/	10.9	435	φ216		φ210
8	8*35	200*890	2.5”	/	25	890	φ216		φ210
9	8*44	200*1100	2.5”	/	32.1	1115	φ216		φ210
10	9*35	230*890	2.5”	/	32.1	900	φ240		φ232
11	9*42	230*1100	2.5”	/	38.4	1075	φ240		φ232
12	9*48	230*1200	2.5”	/	44.4	1225	φ240		φ232
13	10*35	250*890	2.5”	/	39.4	890	φ269		φ260
14	10*44	250*1100	2.5”	/	51.2	1130	φ269		φ260
15	10*54	250*1400	2.5”	/	63.3	1385	φ269		φ260
16	12*48	300*1200	2.5”	/	89	1230	φ318		φ310
17	12*52	300*1400	2.5”	/	97	1330	φ318		φ310
18	13*54	330*1400	2.5”	/	105.3	1380	φ343		φ335
19	14*65	350*1600	2.5”	/	148.5	1655	φ369		φ362
20	14*65	350*1600	4”-8UN	/	148.5	1655	φ369		φ362
21	16*65	400*1600	2.5”	/	192.1	1650	φ422		φ412
22	16*65	400*1600	4”-8UN	/	192.1	1650	φ422		φ412
23	16*65	400*1900	4”-8UN	4”-8UN	225	1910	φ422		φ412
24	18*65	450*1650	4”-8UN	/	268	1670	φ451		φ460
25	18*65	450*1650	4”-8UN	4”-8UN	268	1970		330	φ460
26	2069	500*1750	4”-8UN	/	300	1745	φ525		φ513
27	2069	500*1900	4”-8UN	4”-8UN	310	1865		200	φ513
28	2162	530*1600	4”-8UN	4”-8UN	341	1890		330	φ540
29	2472	600*2100	4”-8UN	4”-8UN	490	2090		240	φ613
30	3072	750*2100	4”-8UN	4”-8UN	735	2110		270	φ763
31	3672	900*2100	4”-8UN	4”-8UN	1031	2085		240	φ918
32	4065	1000*1900	4”-8UN	4”-8UN	1281	1960		260	φ1000
33	4272	1100*2100	6”-FLG	6”-FLG	1461	2300		305	φ1065
34	4872	1200*2300	6”-FLG	6”-FLG	1685	2250		300	φ1210
35	6079	1500*2400	6”-FLG	6”-FLG	3000	2440		275	φ1500
36	6386	1600*2450	6”-FLG	6”-FLG	3326	2475		285	φ1610

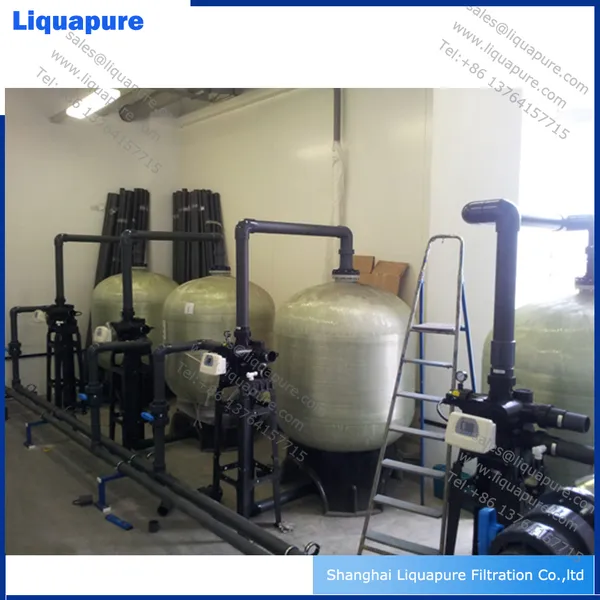

4872 FRP tanks

FAQ

Questions About This Product

Will this fit my existing housing

Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.

Which micron ratings and lengths are available

Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.

What is the production capacity

Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.

Which industries is this used in

Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.

How do I get a quotation

Call +86 137 6415 7715 with the specification and the quantity you need.
