Pre-RO FRP tanks

Pre-RO FRP tanks FRP Pressure Tanks RO water filtration Materials Inner Shell: Seamless Polyethylene Outer Sheel: Reinforced Fiberglass Operating Conditions Max. Pressure: 150 psi Max. Temperature: 49 ℃ Max. Vacuum: 5″ Hg N0. Size（inch）.

Range: FRP Tanks
Supplier: Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
Customisation: Micron rating, length and end cap specified to your housing
Photographs on file: 1

Call +86 137 6415 7715 Contact Details

Details

Full Description

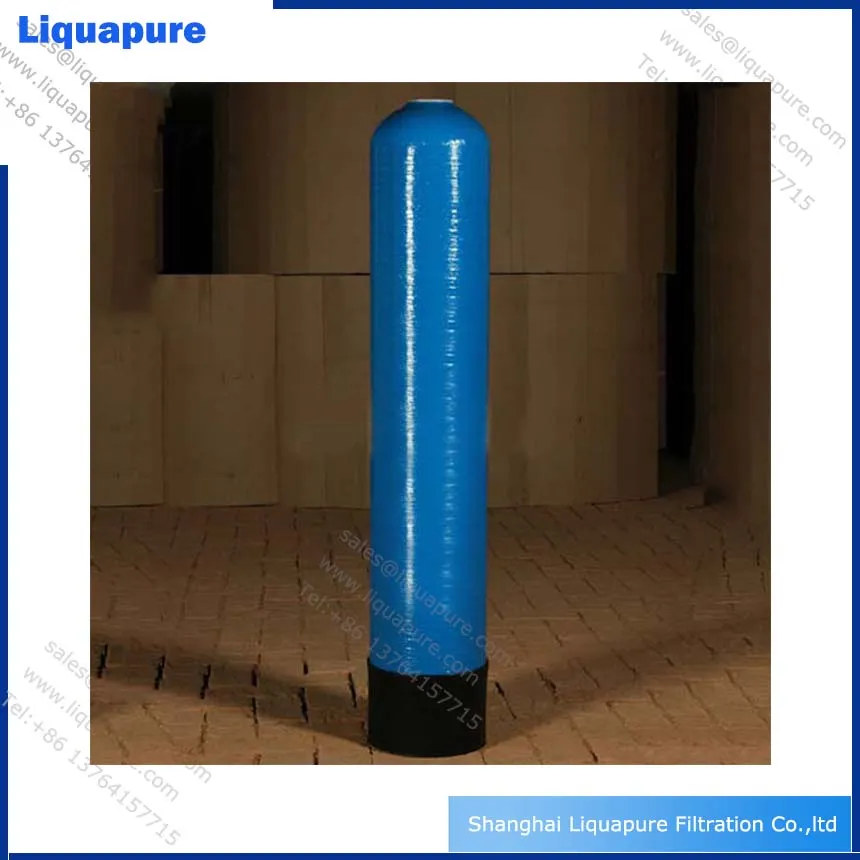

Pre-RO FRP tanks

FRP Pressure Tanks

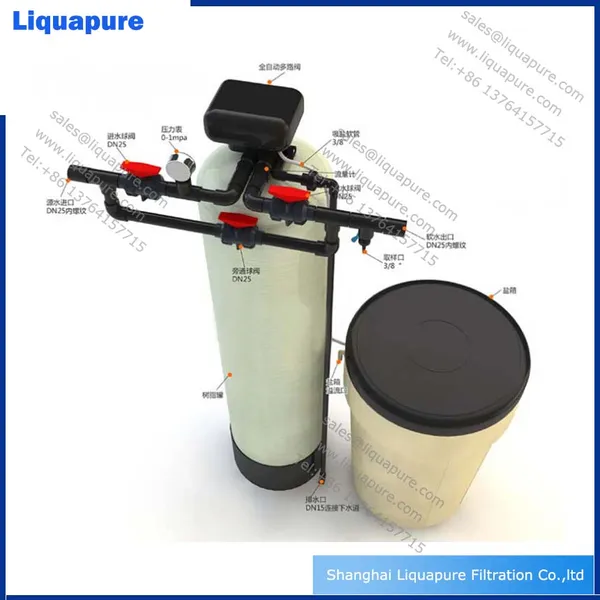

RO water filtration					Materials
						Inner Shell: Seamless Polyethylene
						Outer Sheel: Reinforced Fiberglass
					Operating Conditions
						Max. Pressure: 150 psi
						Max. Temperature: 49 ℃
						Max. Vacuum: 5″ Hg

N0.	Size（inch）	Nominal	Opening		Volume	Dimensions
N0.	Size（inch）	Size	Top	Bottom	Liter	A(mm)	B(mm)	C(mm)	D(mm)
1	6*13	150*330	2.5”	/	4.6	337	φ165		φ155
2	6*17	150*450	2.5”	/	6.6	435	φ165		φ155
3	6*35	150*890	2.5”	/	13.7	918	φ165		φ155
4	7*17	180*450	2.5”	/	8.6	438	φ197		φ182
5	7*35	180*890	2.5”	/	20.1	895	φ197		φ182
6	7*44	180*1100	2.5”	/	25.6	1125	φ197		φ182
7	8*17	200*450	2.5”	/	10.9	435	φ216		φ210
8	8*35	200*890	2.5”	/	25	890	φ216		φ210
9	8*44	200*1100	2.5”	/	32.1	1115	φ216		φ210
10	9*35	230*890	2.5”	/	32.1	900	φ240		φ232
11	9*42	230*1100	2.5”	/	38.4	1075	φ240		φ232
12	9*48	230*1200	2.5”	/	44.4	1225	φ240		φ232
13	10*35	250*890	2.5”	/	39.4	890	φ269		φ260
14	10*44	250*1100	2.5”	/	51.2	1130	φ269		φ260
15	10*54	250*1400	2.5”	/	63.3	1385	φ269		φ260
16	12*48	300*1200	2.5”	/	89	1230	φ318		φ310
17	12*52	300*1400	2.5”	/	97	1330	φ318		φ310
18	13*54	330*1400	2.5”	/	105.3	1380	φ343		φ335
19	14*65	350*1600	2.5”	/	148.5	1655	φ369		φ362
20	14*65	350*1600	4”-8UN	/	148.5	1655	φ369		φ362
21	16*65	400*1600	2.5”	/	192.1	1650	φ422		φ412
22	16*65	400*1600	4”-8UN	/	192.1	1650	φ422		φ412
23	16*65	400*1900	4”-8UN	4”-8UN	225	1910	φ422		φ412
24	18*65	450*1650	4”-8UN	/	268	1670	φ451		φ460
25	18*65	450*1650	4”-8UN	4”-8UN	268	1970		330	φ460
26	2069	500*1750	4”-8UN	/	300	1745	φ525		φ513
27	2069	500*1900	4”-8UN	4”-8UN	310	1865		200	φ513
28	2162	530*1600	4”-8UN	4”-8UN	341	1890		330	φ540
29	2472	600*2100	4”-8UN	4”-8UN	490	2090		240	φ613
30	3072	750*2100	4”-8UN	4”-8UN	735	2110		270	φ763
31	3672	900*2100	4”-8UN	4”-8UN	1031	2085		240	φ918
32	4065	1000*1900	4”-8UN	4”-8UN	1281	1960		260	φ1000
33	4272	1100*2100	6”-FLG	6”-FLG	1461	2300		305	φ1065
34	4872	1200*2300	6”-FLG	6”-FLG	1685	2250		300	φ1210
35	6079	1500*2400	6”-FLG	6”-FLG	3000	2440		275	φ1500
36	6386	1600*2450	6”-FLG	6”-FLG	3326	2475		285	φ1610

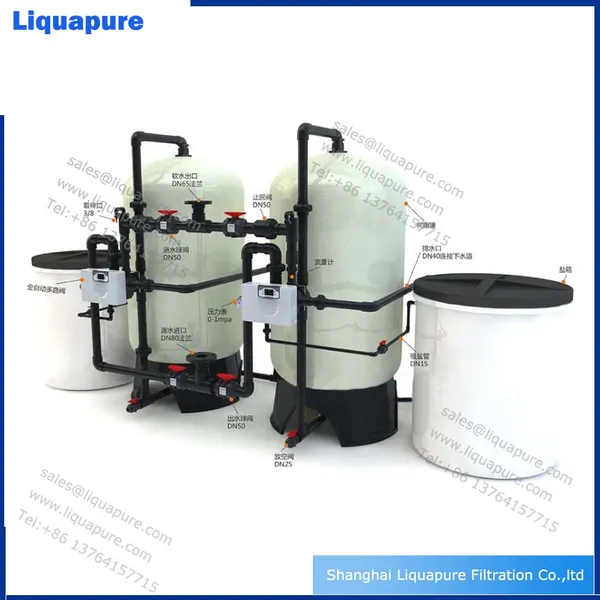

FRP tanks water treatment
