PFB Hydrophobic PTFE Filter Cartridges
PFB Hydrophobic PTFE Filter Cartridges PFB Hydrophobic PTFE filter cartridge is absolute rated filter are gas and air filtration and some liquid solvents. It is resistance to strong alkali, acids, aggressive gases and solvents. Filter.
- Range
- Filter Cartridges
- Supplier
- Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
- Customisation
- Micron rating, length and end cap specified to your housing
- Photographs on file
- 1
Details
Full Description

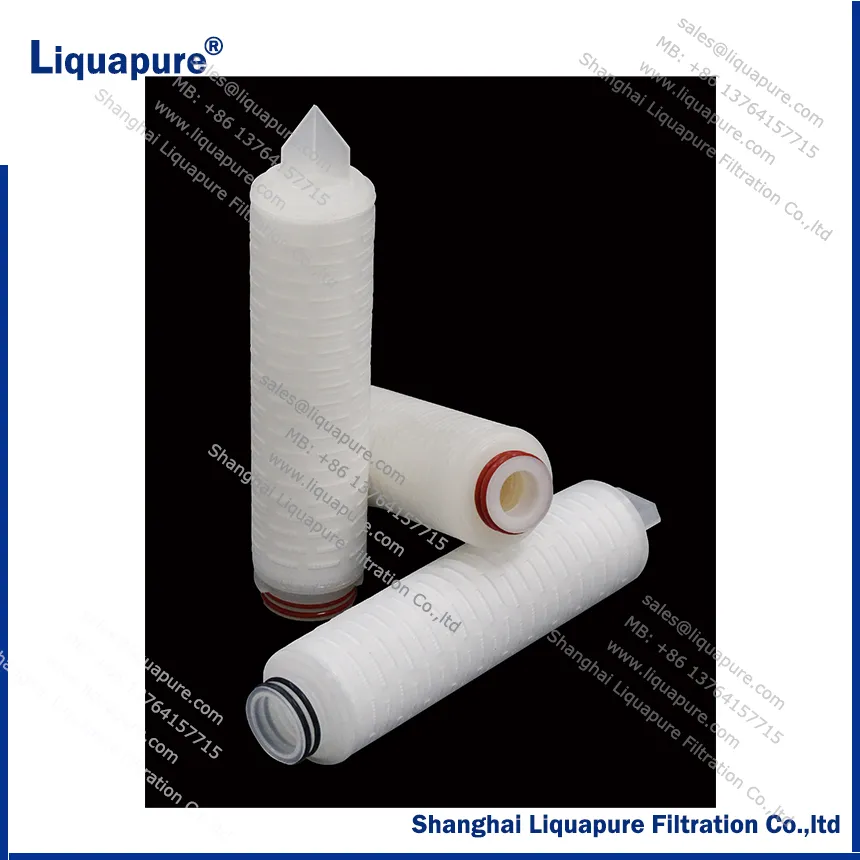

PFB Hydrophobic PTFE Filter Cartridges
PFB Hydrophobic PTFE filter cartridge is absolute rated filter are gas and air filtration and some liquid solvents. It is resistance to strong alkali, acids, aggressive gases and solvents.
Filter cartridges PTFE
Applications
Compressed air, CO₂ sterile
Tank vent, fermentation air
Aggressive acids, bases, solvents
Dimensions
Outer Diameter: 68mm
Length: 5”~40”
Materials of Construction
Media: Hydrophobic PTFE
Core: PP, Stainless Steel
Cage/Caps: PP
Operating Parameters
Max. Temperature: 80 ℃
Max. Differential Pressure: 4 bar@21℃
Recommend Change-out：2.4 bar
Ordering Information e.g.: PFB-0.1-10-SS304-2-E
| Code | Micron | Length | Core | Adapter | O-ring |
| PFB | 0.05
0.1 0.2 0.45 1 |
5”, 10”
20”,30” 40” |
PP
SS304
|
0=DOE
2=226/flat 3=222/flat 7=226/fin 8=222/fin |
B=Buna
E=EPDM S=Silicone V=Viton T=PTFE Encapsulated |
FAQ
Questions About This Product
Will this fit my existing housing
Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.
Which micron ratings and lengths are available
Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.
What is the production capacity
Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.
Which industries is this used in
Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.
How do I get a quotation
Call +86 137 6415 7715 with the specification and the quantity you need.
Related Products
More From Membrane pleated Filter cartridges
Request a Quote
Ask About PFB Hydrophobic PTFE Filter Cartridges
Tell us the micron rating, the length, the end cap and the quantity.
