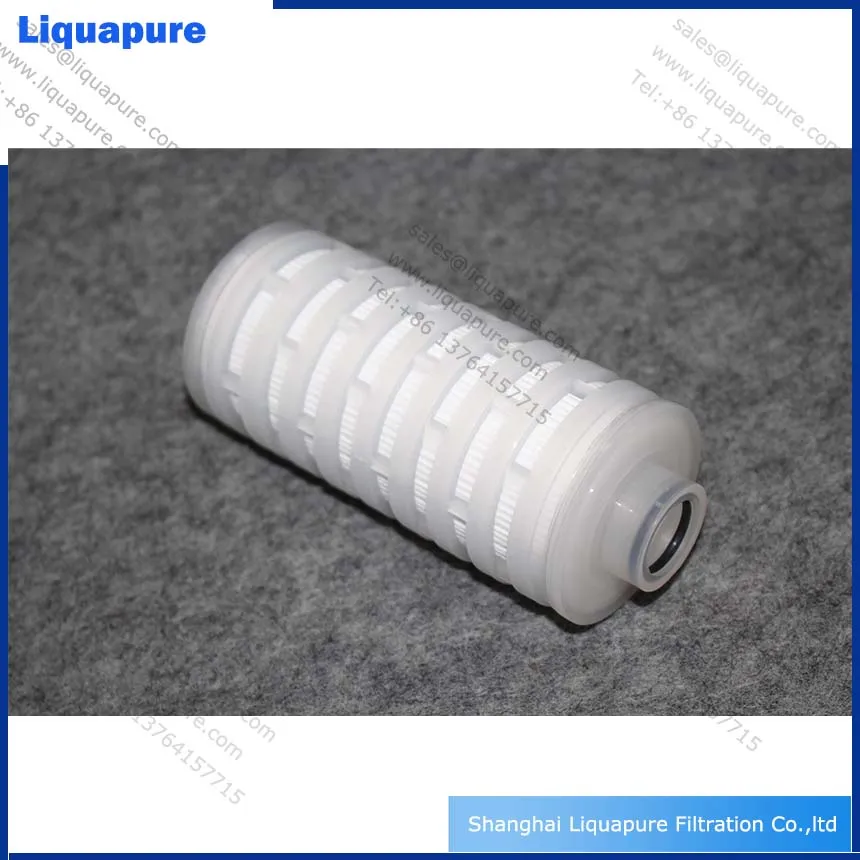

Laboratory Pleated Filter Cartridges

Laboratory Pleated Filter Cartridges PTS series pleated filter cartridge is with OD55mm and it’s suitable for laboratory and other applications where small flow rate is needed. Various media are available for requirements. 5inch filter.

Range: Filter Cartridges
Type: Membrane pleated Filter cartridges
Supplier: Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
Customisation: Micron rating, length and end cap specified to your housing
Photographs on file: 1

Call +86 137 6415 7715 Contact Details

Details

Full Description

Laboratory Pleated Filter Cartridges

PTS series pleated filter cartridge is with OD55mm and it’s suitable for laboratory and other applications where small flow rate is needed. Various media are available for requirements.

5inch filter cartridges

Applications

Air and gas filtration
Laboratory
Optical resin gum
Chemicals and solvents

Dimensions

Outer Diameter: 55mm
Length: 70mm, 125mm

Materials of Construction

Media: PP, PTFE, PVDF, PES, N66
Core: PP
Cage/Caps: PP

Operating Parameters

Max. Temperature: 80 ℃
Max. Differential Pressure: 4 bar@21℃
Recommend Change-out：2.4 bar

Ordering Information e.g.: PDL-0.22-10-PP-7-E

___________________________________________________________________________________________________________________________________

Code

Micron

Media

Adapter

O-ring

PTS

0.05

0.1

0.2

0.45

1 PP

PES

PVDF

PTFE

N66

214

215 B=Buna

E=EPDM

S=Silicone

V=Viton

T=PTFE Encapsulated

FAQ

Questions About This Product

Will this fit my existing housing

Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.

Which micron ratings and lengths are available

Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.

What is the production capacity

Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.

Which industries is this used in

Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.

How do I get a quotation

Call +86 137 6415 7715 with the specification and the quantity you need.
