Max-Iron High Flow Cartridge Filter
Max-Iron High Flow Cartridge Filter Application: Oil and Gas Petrochemicals Other high temperature and high pressure application Products Features Easy installation and quick change-out Multiple pleated layers construction , filtration.
- Supplier
- Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
- Customisation
- Micron rating, length and end cap specified to your housing
- Photographs on file
- 1
Details
Full Description

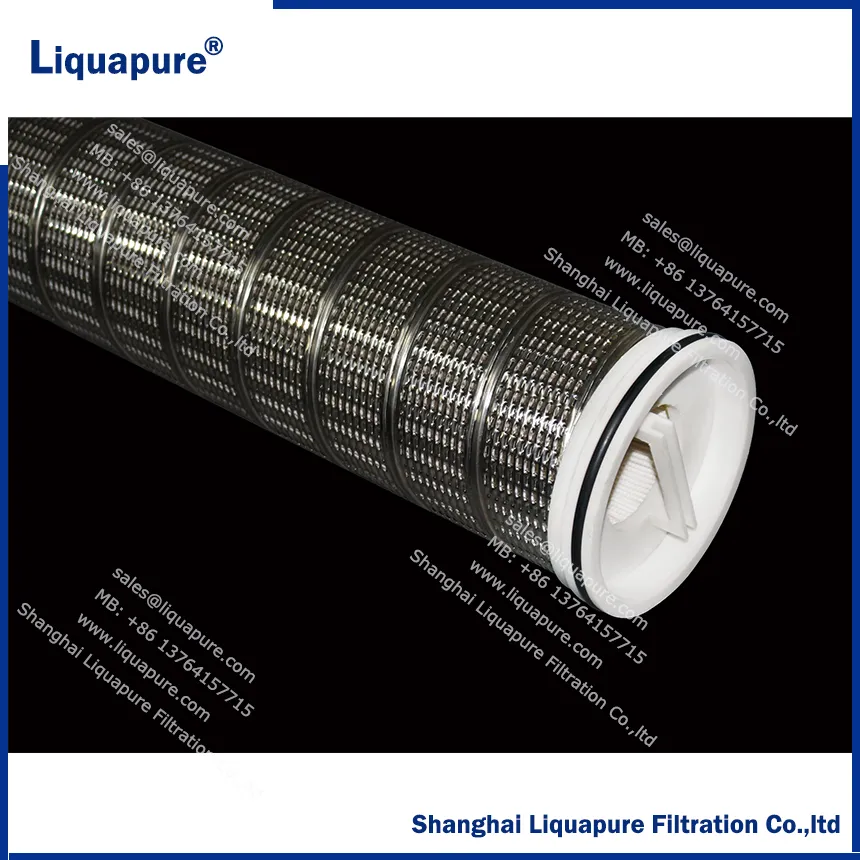

Max-Iron High Flow Cartridge Filter
- Application:
- Oil and Gas
- Petrochemicals
- Other high temperature and high pressure application
Products Features
- Easy installation and quick change-out
- Multiple pleated layers construction , filtration direction in-out
- Fewer element in need ,cost saving
- Outer metal cage makes high pressure application possible
- High performance depth media for high dirt holding
Specification
Material and Operation Conditions:
| Type | Filter Media | End Caps | Outer Cage | Max. Temperature | Max. Pressure Drop | Recommend Differential Pressure for Change-out |
| High Pressure Application | Polypropylene | Polypropylene injected glass fiber | SS316L or SS304 | 80℃ | 4.5 Bar @ 21℃ | 2.1Bar |
| High Temperature Application | Glass Fiber | Nylon | 130℃ | 4.5 Bar @ 21℃ | 2.1Bar |
Size:
| Length | 60/40/20 inch |
| Outside Diameter | 6inch(152mm) |
| Filtration Area | 8㎡ @ 60 inch 5.3㎡ @ 40inch |
Flow Rate:
| Flow Rate | Max. Flow Rate | Recommended Flow Rate |
| 60inch | 113m³/hr | 50m³/hr |
| 40inch | 75m³/hr | 33m³/hr |
| 20inch | 38m³/hr | 17m³/hr |
Ordering Information:
| Model | Length | Pleated Material | End Caps | Micron Rating | Outer Cage | O-ring |
| High Flow Max-Iron | 60inch
40inch 20inch |
PP = Polypropylene
GF = Glass Fiber |
PP=Polypropylene NY=Nylon | 1μm | 316 = SS 316L 304 = SS 304 | sillicone
EPDM Viton Buna N |
| 3μm | ||||||
| 5μm | ||||||
| 10μm | ||||||
| 20μm | ||||||
| 50μm | ||||||
| 1μm Absolute | ||||||
| 3μm Absolute | ||||||
| 5μm Absolute | ||||||
| 10μm Absolute | ||||||
| 20μm Absolute |
Housing Options:
High flow filter housing
FRP high flow filter cartridges
FAQ
Questions About This Product
Will this fit my existing housing
Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.
Which micron ratings and lengths are available
Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.
What is the production capacity
Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.
Which industries is this used in
Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.
How do I get a quotation
Call +86 137 6415 7715 with the specification and the quantity you need.
