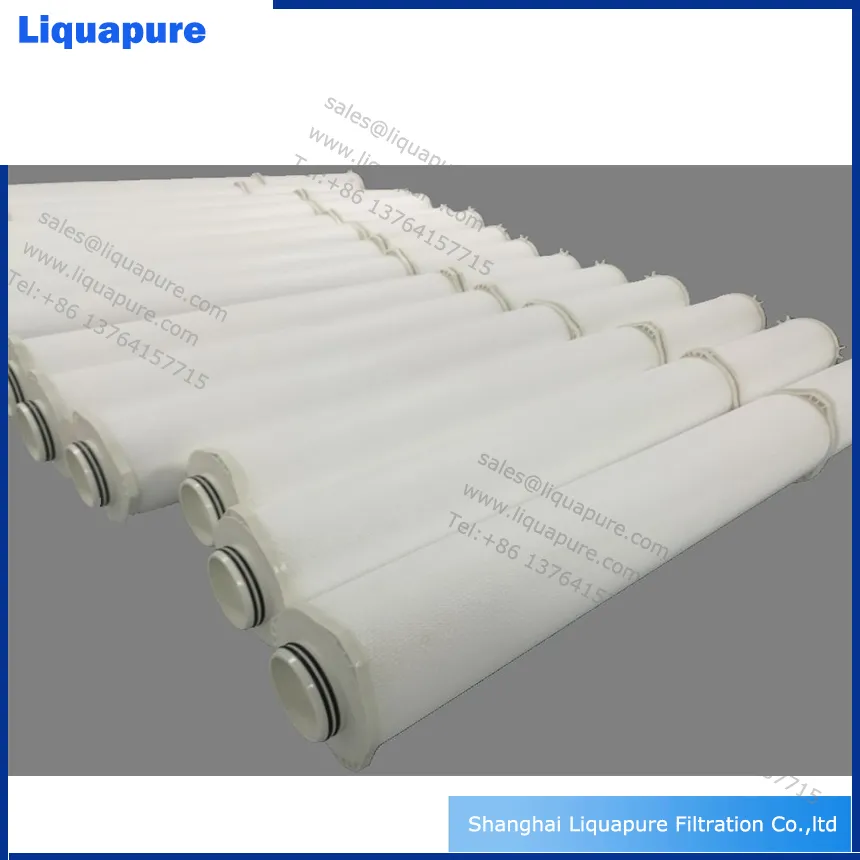

Alternative Pentair High Flow Filter Cartridges

Alternative Pentair High Flow F ilter Cartridges HFPR series high flow cartridge filters with 6.75” diameter and length up to 60”. Large diameter and multi-layers media structure enhance the flow area, dirt holding capacity. It saves the.

Range: High Flow Filter Cartridges
Type: Pentair equivalent
Supplier: Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
Customisation: Micron rating, length and end cap specified to your housing
Photographs on file: 1

Call +86 137 6415 7715 Contact Details

Details

Full Description

Alternative Pentair High Flow Filter Cartridges

HFPR series high flow cartridge filters with 6.75” diameter and length up to 60”. Large diameter and multi-layers media structure enhance the flow area, dirt holding capacity. It saves the cost of investment, operation, maintains, and labor cost.

filter

Features

High dirt holding capacity, long service life
Large filtration area, high flow rate
Less footprint, easy change-out

Applications

Pre-RO
Desalination
Chemicals
Beverage and Food
Cooling water

Dimensions

Outer Diameter: 6.75” (172mm)
Length: 40”, 60”,

Materials of Construction

Core/Cage: Polypropylene
Media: Polypropylene
O-rings: EPDM, Buna, Silicone, Viton

Operating Parameters

Max. Temperature: 80℃
Max. Differential Pressure: 3.5 bar @ 21℃
Recommend change-out：2.4 bar
Max. Flow Rate: 40”@75 m³/h, 60”@113 m³/h
Recommend Flow Rate: 40”@40m³/h, 60”@55 m³/h

Ordering Information e.g.: HFPR-5-40-E-S

_________________________________________________________________________________________________________________________

Code

Micron

Length

O-rings

HFPR

1

5

10

20

50 40”

60”

B=Buna

E=EPDM

S=Silicone

V=Viton

FAQ

Questions About This Product

Will this fit my existing housing

Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.

Which micron ratings and lengths are available

Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.

What is the production capacity

Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.

Which industries is this used in

Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.

How do I get a quotation

Call +86 137 6415 7715 with the specification and the quantity you need.
