Stainless Steel Filter Cartridges SF Series Stainless steel filter cartridge is ideal for high temperature up to 260℃ and high differential pressure up to 4 bar. SFC is cylindrical wrap type for cost effective purpose, and SFP series is.
- Range
- Filter Cartridges
- Supplier
- Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
- Customisation
- Micron rating, length and end cap specified to your housing
- Photographs on file
- 1
Details
Full Description

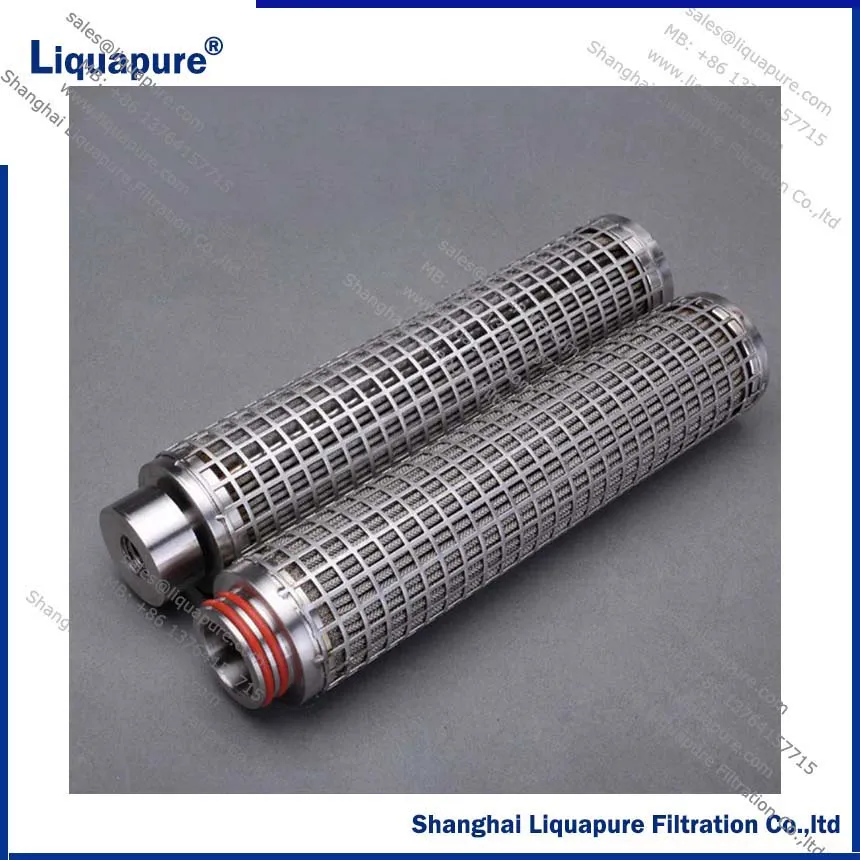

Stainless Steel Filter Cartridges
SF Series Stainless steel filter cartridge is ideal for high temperature up to 260℃ and high differential pressure up to 4 bar. SFC is cylindrical wrap type for cost effective purpose, and SFP series is pleated type for high flow rate and service life. The stainless-steel filter cartridges are widely used in applications where polymer-based filters are limited by compatibility, temperature and viscosity.
SS filter
Features
- Absolute rated
- Graded density metal fiber
- Compatible with most solvents
- High temperature and pressure
- Ideal for aggressive solvents, viscous
Dimensions
- Length: 5”-40”
- Diameter: 65mm, 70mm
Operating Parameters
- Max. Temperature: 260 ℃
- Max. Differential Pressure: 4 bar@21℃
Ordering Information e.g.: SFP-3-S6-2-E
| Code | Micron | Length | Material | Adapter | O-ring |
| SFC
SFP |
3
5 7 10 … 100 |
5”
10” 20” 30” 40” |
S4=SS304
S6=SS316 |
0=DOE
2=226/flat 3=222/flat 7=226/fin 8=222/fin N=NPT |
E=EPDM
S=Silicone V=Viton T=PTFE Encapsulated |
FAQ
Questions About This Product
Will this fit my existing housing
Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.
Which micron ratings and lengths are available
Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.
What is the production capacity
Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.
Which industries is this used in
Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.
How do I get a quotation
Call +86 137 6415 7715 with the specification and the quantity you need.
Related Products
More From Metal Filter Cartridges
Request a Quote
Ask About
Tell us the micron rating, the length, the end cap and the quantity.
