Solutions
Standard Power Source (SPS)
Kongter offers a whole series of standard power source for power meter test. With different models, it covers both AC and DC with optional current of 50A and 100A..
Kongter offers a whole series of standard power source for power meter test. With different models, it covers both AC and DC with optional current of 50A and 100A. Accuracy classes include 0.1 and 0.05 per different requirement. All products are strictly designed, built and inspected with highest standards to meet customers’ requirement of different countries.
Request A Quote
SPS-31 DC Standard Source
Signal: DC
Accuracy: Class 0.05
DC voltage output: 0-1100V
DC current output: 0-30A

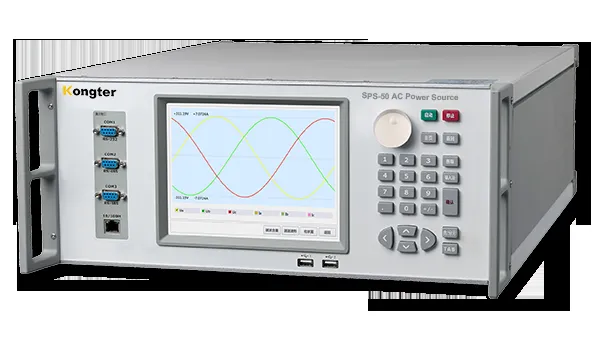

SPS-50 AC Power Source (50A)
Signal: AC, 3 phase
Accuracy: Class 0.05 or Class 0.1
AC voltage output: 0-792V
AC current output: 0-60A

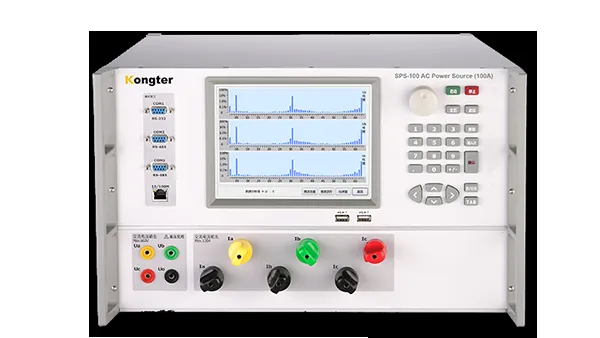

SPS-100 AC Power Source (100A)
Signal: AC, 3 phase
Accuracy: Class 0.05 or Class 0.1
AC voltage output: 0-792V
AC current output: 0-120A

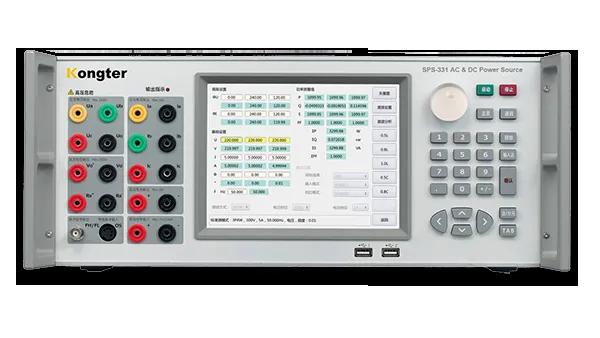

SPS-331 AC & DC Power Source
Signal: AC (3 phase) & DC
Accuracy: Class 0.05 or Class 0.1
AC voltage output: 0-792V
AC current output: 0-36A
DC voltage output: 0-1100V
DC current output:0-30A

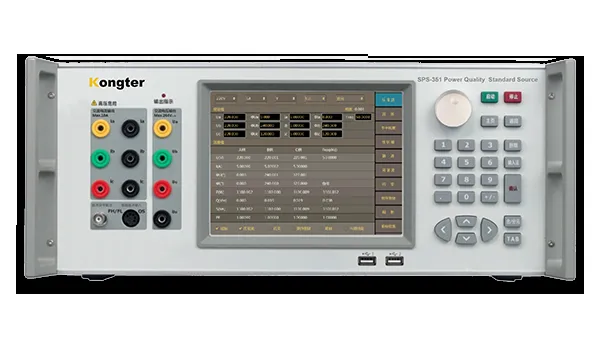

SPS-351 Power Quality Standard Source
Signal: AC (3 phase)
Accuracy: Class 0.05
AC voltage output: 0-456V
AC current output: 0-12A
Harmonics order: 2nd~63rd
Request a Quote
