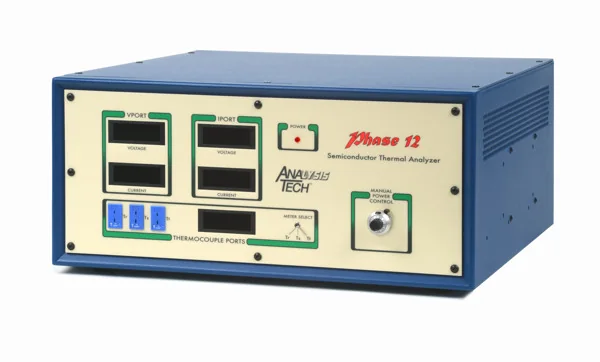

Phase 12 Thermal Analyzer

Overview

Key Features

• Tests all devices: diodes, LEDs, bipolar, MOSFET, IGBT, functional IC, thyristors, test dies
• Full 3-terminal and 2-terminal test modes for MOSFETs, IGBTs and bipolars
• Automated high speed data collection, reduction and analysis for transient and steady state data
• Transient RC models generated directly from measured junction temperature heating and cooling
• Compatible with all 750E Mil Stds and JEDEC 51 series methods
• Rjc measurement with the JEDEC 51-14 transient method
• Transient data plots for all test parameters in all test modes
• Simple automated instrument calibration procedures
• Multiple text and graphics file formats for convenient exporting
• Continuous intelligent monitoring for errors and data validity
• Kelvin four wire connections to eliminate test cable resistance effects
• Automatic power control by current, wattage or ΔTj
• Standard and custom test fixturing available

Applications

• Steady state thermal resistance mode with multi-junction temperature sensing for ICs and multi-die devices
• User selectable thermal equilibrium criteria
• Batch mode for determining power level and air flow effects
