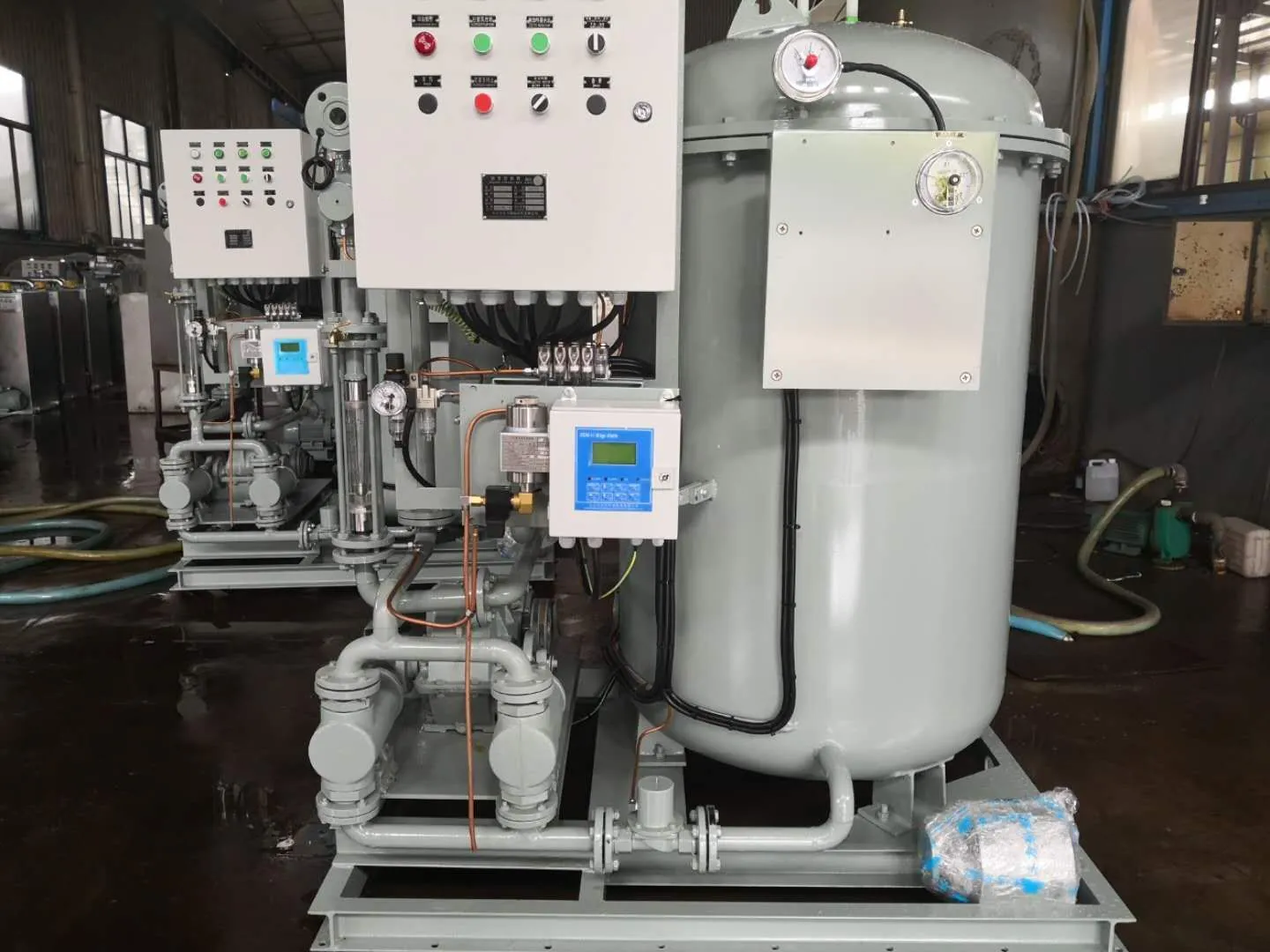

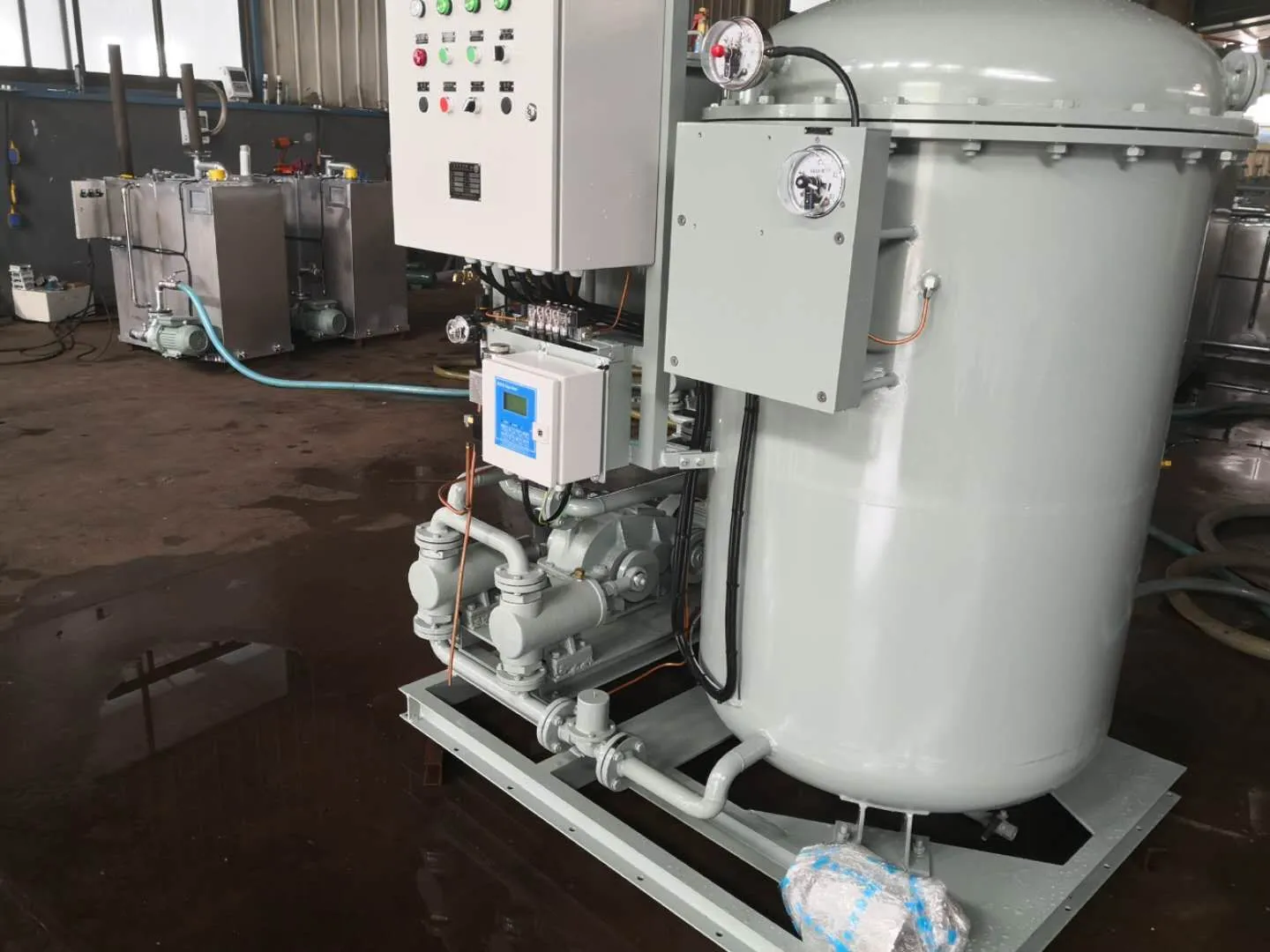

Marine oil water separator for ship/vessel
Good Price Marine oil water separator for large ship/vessel, can be customized as your requested Capacity
| Capacity | Customized(like 2.5m3) |
|---|---|
| Package | Standard Wooden Box, easy for forklift to move |
| Accessories | All necessary accessories like Control Panel |
| Certificate | CCS, BV, LR, DNV...etc |
Application
Marine oil water separator for ship using marine oil water separator on board ship, for big/large ships!! with Capacity of 0.25m³/0.5m³/1m³/1.5m³/2.0m³/2.5m³/3m³/4m³/5m³/h The device can be using to treat the bilge oil sewage of ship engine room to meet the requirements of IMO mepc.107 (49). The device adopts the principle of one-stage inclined plate gravity and coalescence separation – two-stage fiber filter – three-stage ultrafiltration membrane osmotic separation, so that the oily bilge water can meet the discharge standard of IMO mepc.107 (49). Marine oil water separator will be testing before leaving factory to ensure the performance. Working Capacity is available for choosing and cutomizing. We will give advice to help the machine to connect with your ship perfectly!!! What’s more, the machine is providing necessary spare parts and electric control panel. Every equipment is packing by solid wooden case to avoid damage during sea/air transportation. Type Technical Specifications YWC 0.25 0.50 1.00 1.50 2.00 2.50 3.00 4.00 5.00 Rated capacity (m³/h) 0.25 0.50 1.00 1.50 2.00 2.50 3.00 4.00 5.00 Oil content of the discharged water >15ppm Power of the electric heater (kw) 3 3 3 6
Tell us vessel type, chain or opening size, voltage or hydraulic preference, and the class society. Star Marine will confirm the model, shop-test the unit, and pack it for sea or air freight.
Warranty and documents
One year warranty after the cargo arrives at the vessel, with installation guidance and spare-parts support. Where a product card lists a longer deck-machinery warranty, that period applies to that line. Product certificates under ABS, BV, CCS, DNV, GL, LR or RINA can be arranged; BV and CCS are the most commonly requested.
