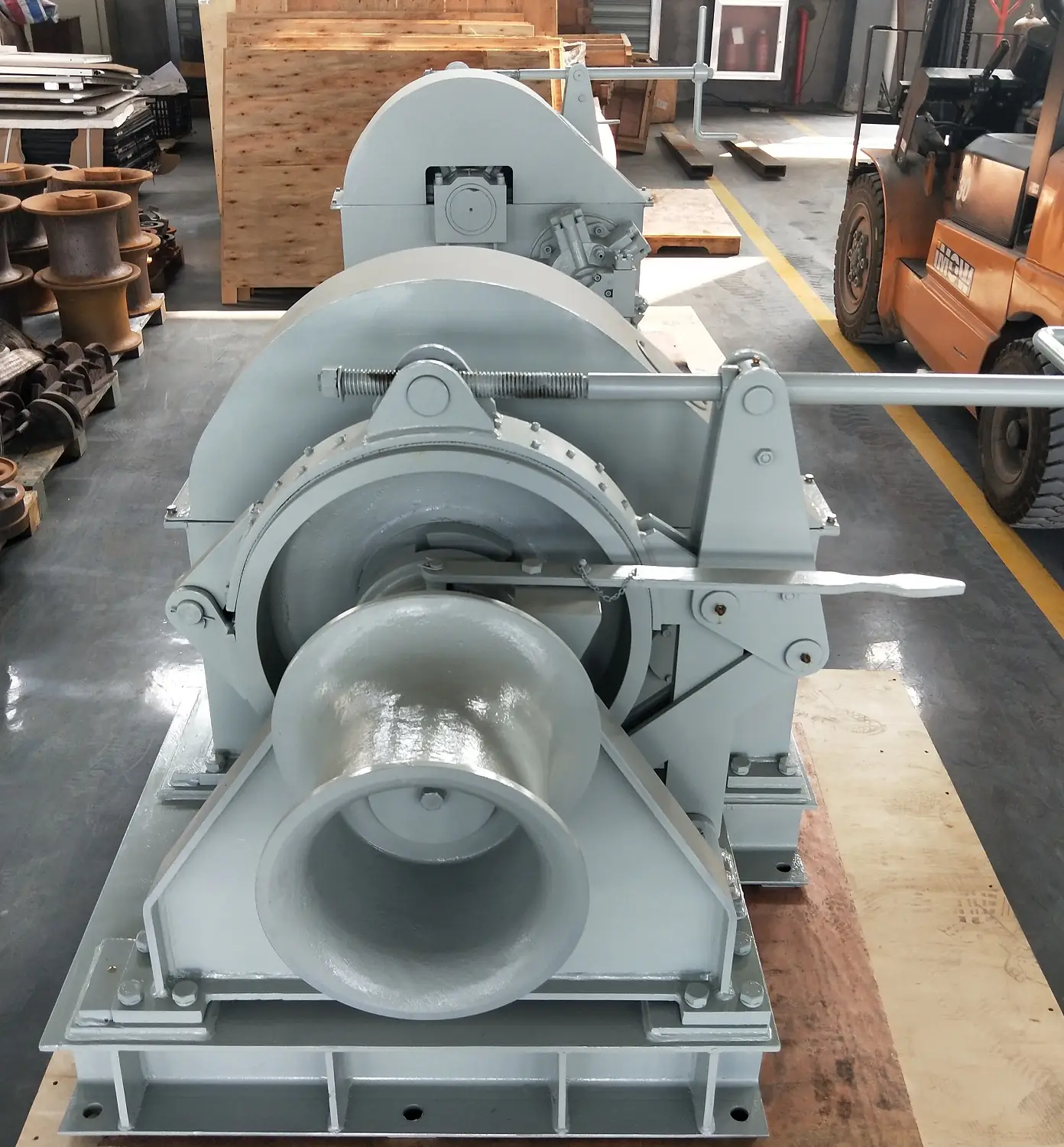

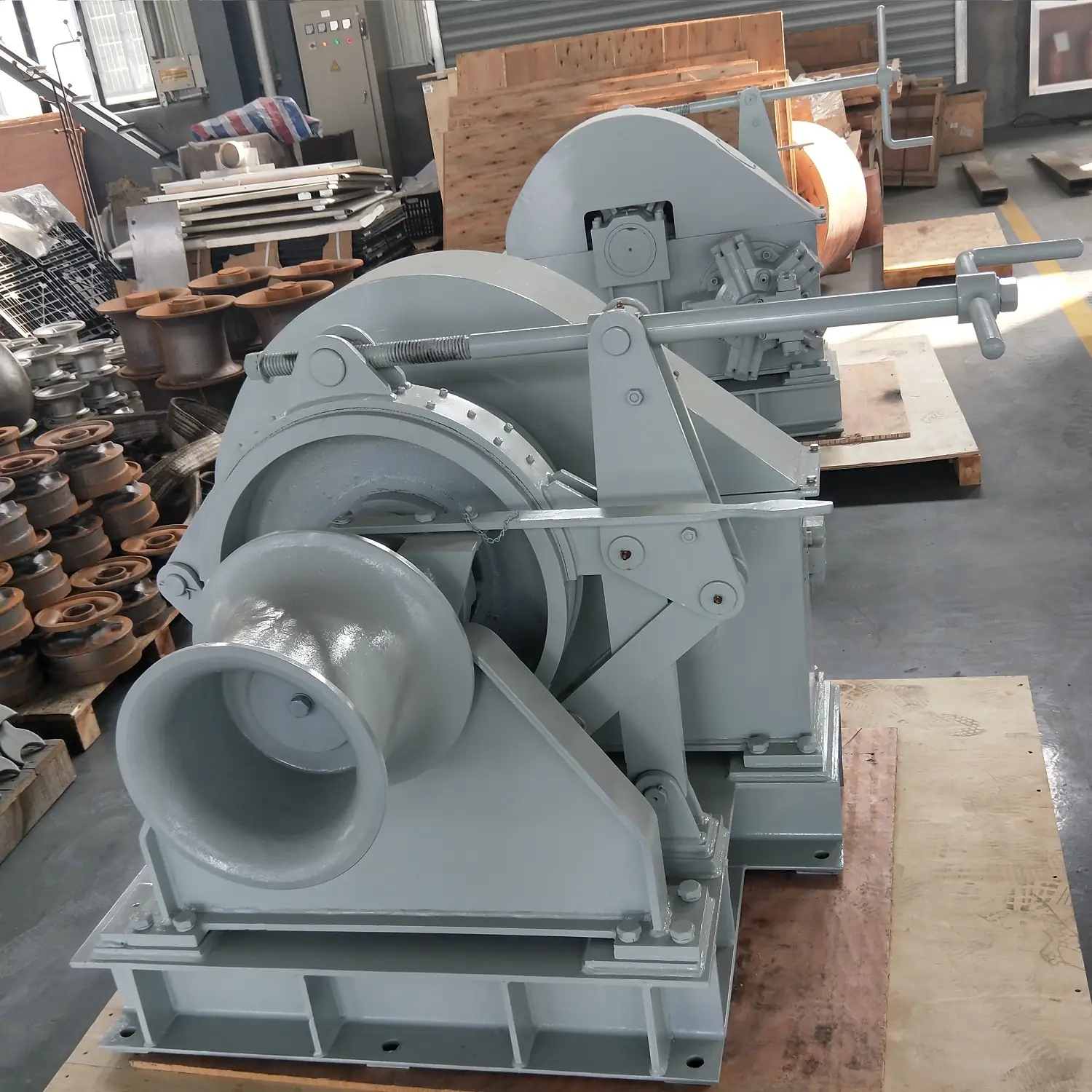

30mm Marine Deck Hydraulic Electric Single/Double Gypsy Drum Ship Anchor Windlass Winch

Application

Marine Carbon Steel Electric/Hydraulic Hydraulic Anchor Windlass Marine Electric Winch Hydraulic Marine Winch for 12.5mm~60mm diameter AM-2 anchor chain for boat&vessel&ship What’s more, We can customize the windlass, design based on the type&Weight of your boat&vessel&ship, to help your vessel work perfectly!!!! Meanwhile, All Equipment will do testing before leaving factory(FAT). Our anchor windlass can be customizing like hydraulic type, electric type 220V/380V, 50HZ/60HZ. And we can deliver windlass to all over the world. Sample Drawing of 28mm Hydraulic Marine Winch: Working Specifications: Chain Dia (mm, U2 Chain) Rated load(KN) Overload(KN) Holding load(KN) Speed(m/min) Electric Power-Double Motor(KW) Hydraulic Power(KW) 12.5 6.6 9.9 42 ≥9 2.4/1.5 4 14 8.3 12.5 52 ≥9 2.4/1.5 4 16 10.9 16.4 67 ≥9 3.3/2/2 5.5 17.5 13.0 19.5 81 ≥9 4.3/1.7 5.5 19 15.3 23 95 ≥9 4.3/1.7 5.5 20.5 17.9 26.9 110 ≥9 4.3/1.7 7.5 22 20.6 30.9 126 ≥9 6/2.5 7.5 24 24.5 36.8 145 ≥9 8.5/3.5 11 26 28.7 43.1 175 ≥9 8.5/3.5 11 28 33.3 50.0 202 ≥9 11/11/7.5 15 30 38.3 57.5 231 ≥9 11/11/7.5 15 32 43.5 65.3 262 ≥9 11/11/7.5 15 34 49.1 75.7 295 ≥9 11/11/7.5 18.5 36 55.1 82.7 329 ≥9 16/16/11 18.5 38 61.4 92.1 365 ≥

Tell us vessel type, chain or opening size, voltage or hydraulic preference, and the class society. Star Marine will confirm the model, shop-test the unit, and pack it for sea or air freight.

Warranty and documents

One year warranty after the cargo arrives at the vessel, with installation guidance and spare-parts support. Where a product card lists a longer deck-machinery warranty, that period applies to that line. Product certificates under ABS, BV, CCS, DNV, GL, LR or RINA can be arranged; BV and CCS are the most commonly requested.
