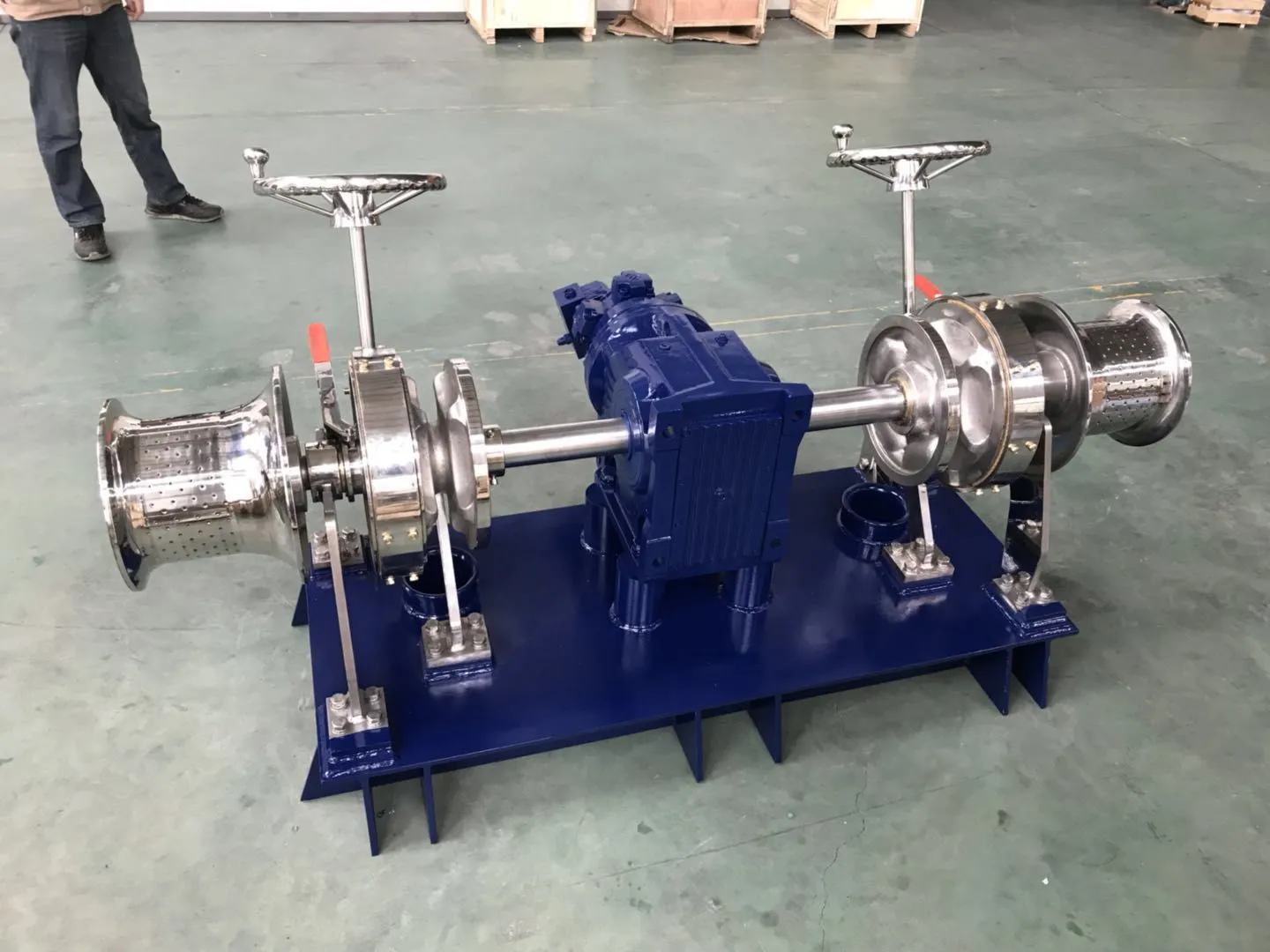

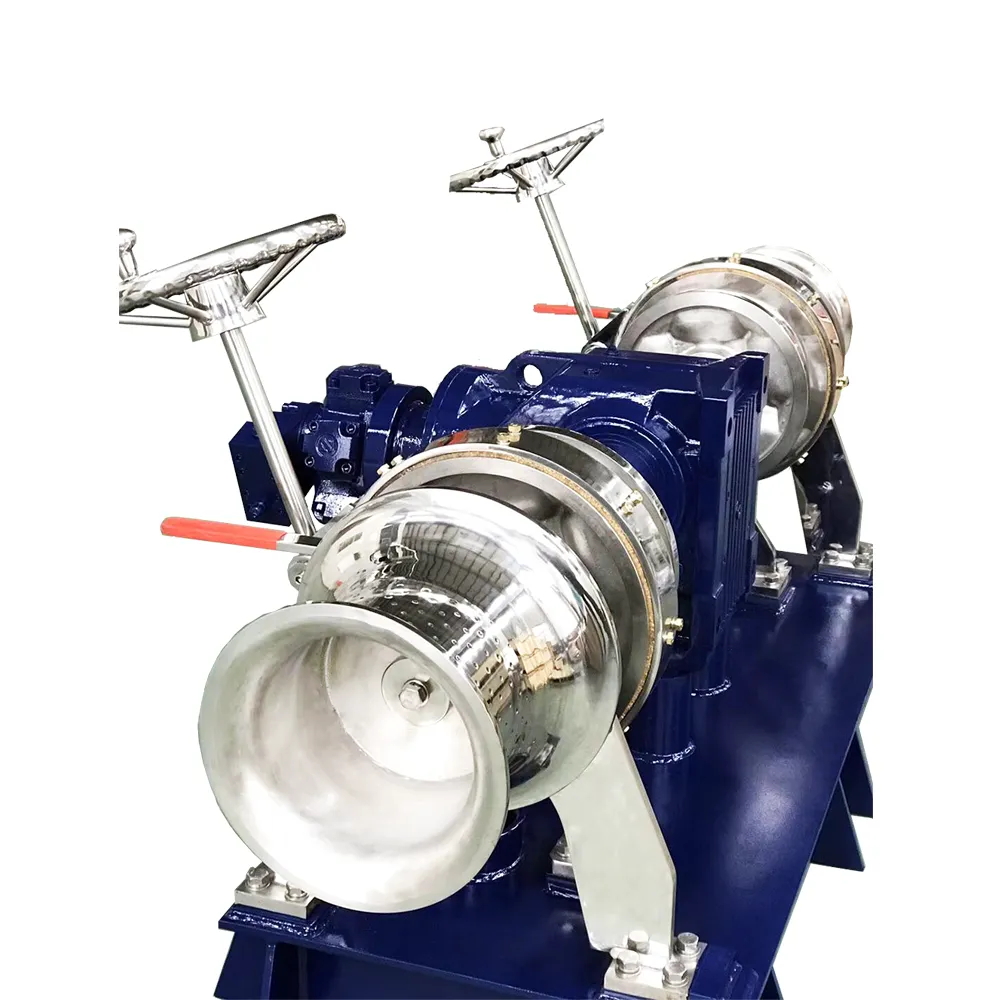

Double Drum Marine Horizontal Hydraulic Stainless Steel Boat Winch/Windlass for Ship

Application

marine anchor windlass stainless steel anchor winch for boat 1.It is using for 12.5mm~60mm diameter AM-2 anchor chain for boat&vessel&ship 2.In addition, material Carefully hand polishing by our workers to make it perfect. 3.What’s more, We can customize the stainless steel boat winch, design basing on the type&Weight of your boat&vessel&ship. 4.Electric motor using double motor type. Once the stainless steel electric anchor windlass over loading leading to the broken of one motor, the other motor can continue to work, thus ensuring the safety of the boat/ship. 5.Wrapping drum can remove or install according to the requirement of the user. 6.Working Specifcation: Chain Dia (mm, U2 Chain) Rated load(KN) Overload(KN) Holding load(KN) Speed(m/min) Electric Power-Double Motor(KW) Hydraulic Power(KW) 12.5 6.6 9.9 42 ≥9 2.4/1.5 4 14 8.3 12.5 52 ≥9 2.4/1.5 4 16 10.9 16.4 67 ≥9 3.3/2/2 5.5 17.5 13.0 19.5 81 ≥9 4.3/1.7 5.5 19 15.3 23 95 ≥9 4.3/1.7 5.5 20.5 17.9 26.9 110 ≥9 4.3/1.7 7.5 22 20.6 30.9 126 ≥9 6/2.5 7.5 24 24.5 36.8 145 ≥9 8.5/3.5 11 26 28.7 43.1 175 ≥9 8.5/3.5 11 28 33.3 50.0 202 ≥9 11/11/7.5 15 30 38.3 57.5 231 ≥9 11/11/7.5 15 32 43.5 65.3 262 ≥9 11/11/7.5 15 34 49.1 75.7 295 ≥

Tell us vessel type, chain or opening size, voltage or hydraulic preference, and the class society. Star Marine will confirm the model, shop-test the unit, and pack it for sea or air freight.

Warranty and documents

One year warranty after the cargo arrives at the vessel, with installation guidance and spare-parts support. Where a product card lists a longer deck-machinery warranty, that period applies to that line. Product certificates under ABS, BV, CCS, DNV, GL, LR or RINA can be arranged; BV and CCS are the most commonly requested.
