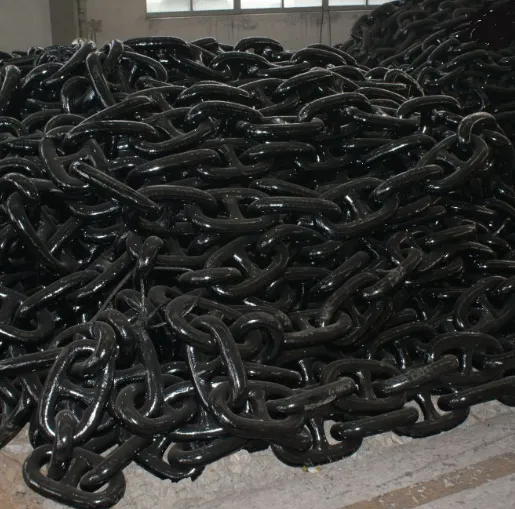

Galvanized/Black Anchor Chain Marine Stud-Link AM/U2 AM/U3 anchor chain for ship

Application

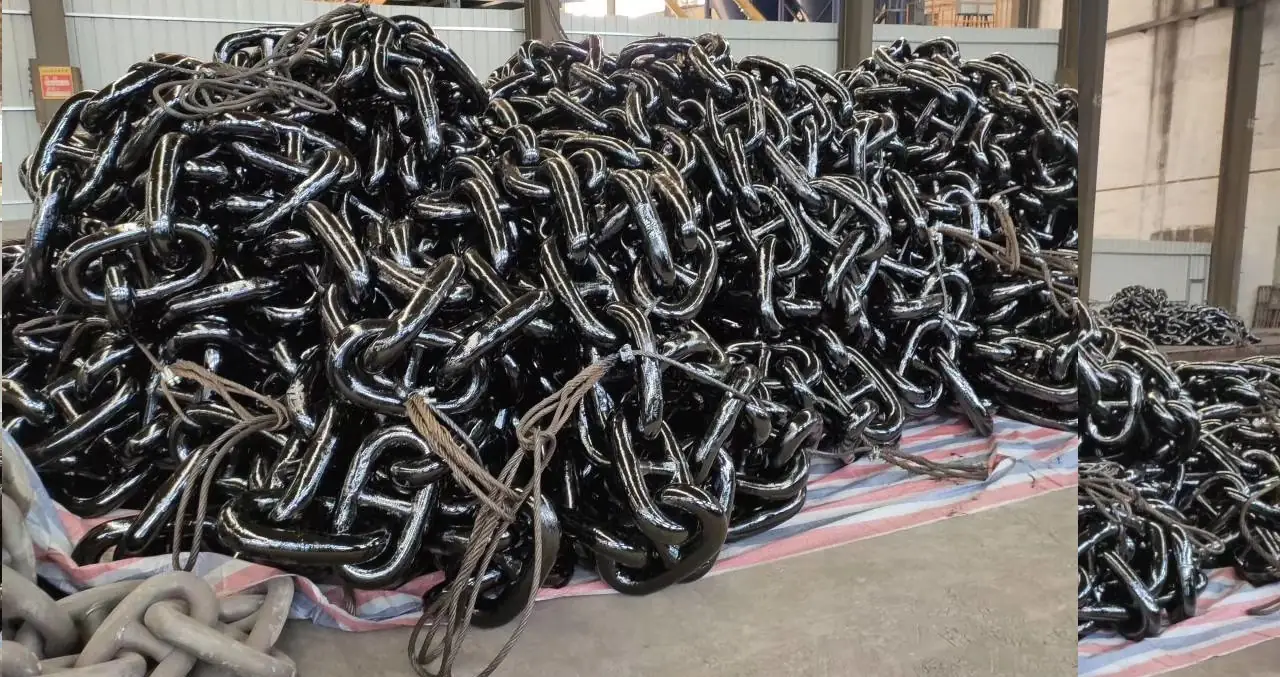

u2 anchor chain galvanized stud link anchor chain U3 marine anchor chain, from dia 12.5mm to 80mm, with CCS, BV, LR, DNV, RINA certificate. All chains will be testing before leaving factory to ensure the Tension Capacity; All chians will pack with Ton bag, easy to transport by forklift. 1.Package Photo: Chain links in chains include Common Link (C), EnlargedLink (EL), Open End Link (E), Swivel (SW), D Type End Shackle (ES), Connection Link (KS) or Connection Shackle (JS), etc. The size of each link is representing by the diameter of the round steel of the link Ordinary chain links are the majority of the chain links in the anchor chain, while are the standard chain links that characterize the size and strength of the anchor chain. The size of the anchor chain is expressing in Chain Diameter (mm), where Chain Diameter (d) is the diameter of the ordinary link in the corresponding chain. The size ratio of a regular chain link is: diameter d, width 3.6d, and length 6d. Enlarged chain links mainly play a transitional role in the size of the chain, with a size increase of 10% compared to the corresponding ordinary chain links in the chain. The end link is an enlarged open link in the cha

Tell us vessel type, chain or opening size, voltage or hydraulic preference, and the class society. Star Marine will confirm the model, shop-test the unit, and pack it for sea or air freight.

Warranty and documents

One year warranty after the cargo arrives at the vessel, with installation guidance and spare-parts support. Where a product card lists a longer deck-machinery warranty, that period applies to that line. Product certificates under ABS, BV, CCS, DNV, GL, LR or RINA can be arranged; BV and CCS are the most commonly requested.
