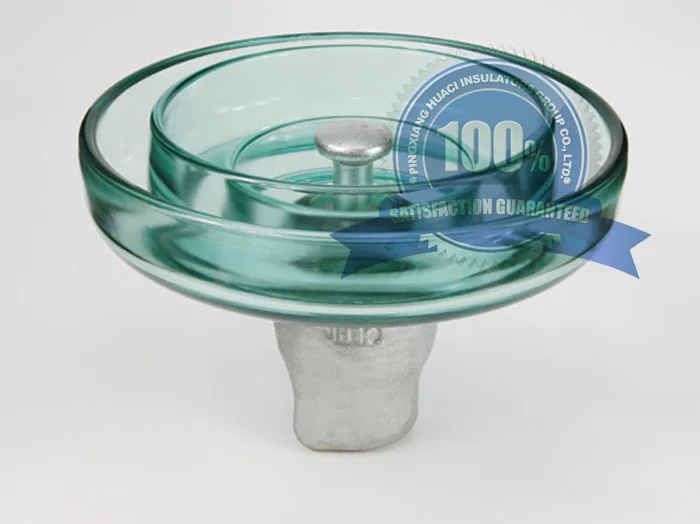

Glass Fog Profile Suspension Insulators LXHP-240 / U240BP
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Diameter (D) | 320mm |
|---|---|
| Spacing (H) | 170mm |
| Creepage Distance | 550mm |
| Coupling Size | 24mm |
| Mechanical Failing Load | 240kN |
|---|---|
| Tension Proof | 120kN |
| Dry Power-frequency Withstand Voltage | 90kV |
|---|---|
| Wet Power-frequency Withstand Voltage | 55kV |
| Dry Lightning Impulse Withstand Voltage | 140kV |
| Puncture Withstand Voltage | 130kV |
| Test Voltage RMS to Ground | 10kV |
|---|---|
| Maximum RIV at 1000 kHz | 50μV |
| Net Weight, Approximate | 9.6kg |
|---|
