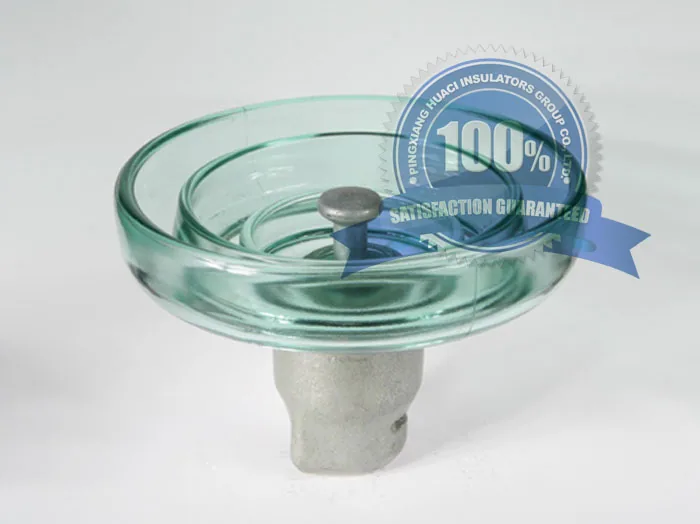

Glass Fog Profile Suspension Insulators LXHP-160 / U160BP / U160BLP
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Diameter (D) | 280mm & 320mm |
|---|---|
| Spacing (H) | 155mm & 170mm |
| Creepage Distance | 450mm & 550mm |
| Coupling Size | 20mm |
| Mechanical Failing Load | 160kN |
|---|---|
| Tension Proof | 80kN |
| Dry Power-frequency Withstand Voltage | 82 & 90kV |
|---|---|
| Wet Power-frequency Withstand Voltage | 50 & 55kV |
| Dry Lightning Impulse Withstand Voltage | 125 & 140kV |
| Puncture Withstand Voltage | 130kV |
| Test Voltage RMS to Ground | 10kV |
|---|---|
| Maximum RIV at 1000 kHz | 50μV |
| Net Weight, Approximate | 6.7 & 8.2kg |
|---|
Standards
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
Quality Systems
ISO 9001:2015 Quality Management, ISO 14001:2015 Environment Management and ISO 45001:2018 Occupational Health And Safety Management System certificates.
Export Record
Huaci products are exported to more than 40 countries and have performed well in a variety of global environments.
Related Products
All Fog Profile →
Glass Fog Profile Suspension Insulators LXHP-120 / U120BP
Glass Fog Profile Suspension Insulators LXHP-210 / U210BP
Glass Fog Profile Suspension Insulators LXHP-240 / U240BP
Glass Fog Profile Suspension Insulators LXHP-300 / U300BP
Glass Fog Profile Suspension Insulators LXHP-100 / U100BP / U100BLP
Glass Fog Profile Suspension Insulators LXHP-70 / U70BP/ U70BLP
FAQ
About Glass Fog Profile Suspension Insulators LXHP-160 / U160BP / U160BLP
What is the mechanical failing load of Glass Fog Profile Suspension Insulators LXHP-160 / U160BP / U160BLP?
The published mechanical failing load of Glass Fog Profile Suspension Insulators LXHP-160 / U160BP / U160BLP is 160kN.
What does Glass Fog Profile Suspension Insulators LXHP-160 / U160BP / U160BLP weigh?
The published net weight is 6.7 & 8.2kg each.
What coupling size does Glass Fog Profile Suspension Insulators LXHP-160 / U160BP / U160BLP use?
The published coupling size is 20mm.
Which design standards does Huaci comply with?
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
What system voltages are covered?
Huaci specialises in insulator manufacture up to 500 kV AC and 400 kV DC system voltages.
Is OEM or customised production available?
Yes. Huaci engineers are able to provide OEM service to meet the varying needs from customers and assist the customers to develop their market better.
Which quality certificates does the factory hold?
Quality Management System Certificate ISO 9001:2015, Environment Management System Certificate ISO 14001:2015 and the Occupational Health And Safety Management System Certificate ISO 45001:2018.
Request A Quotation For Glass Fog Profile Suspension Insulators LXHP-160 / U160BP / U160BLP
Send the quantity and destination port and Huaci will reply with pricing, packing details and lead time.
