Automatic Honeycomb Paper Machine
SD-APH600 · Wenzhou Snda Machinery Co., Ltd. Ask Vicent Chan for layout, voltage and delivery photos.
CE 2006ISO9001:2000 2005
SD-APH600

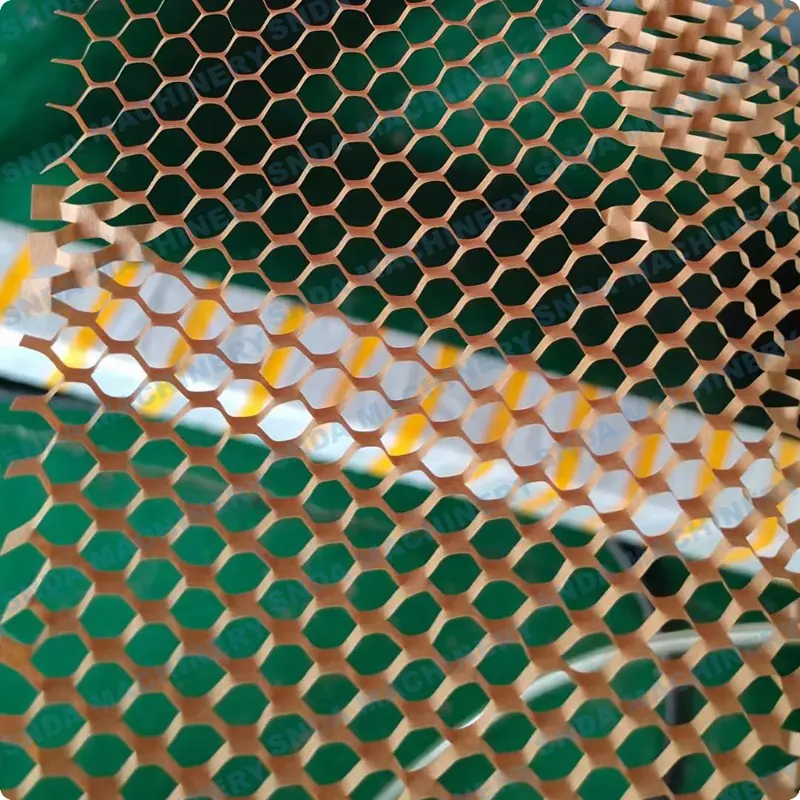

Full automatic honeycomb forming line with automatic finished-roll change. Suitable for die cutting honeycomb, wrapping, shock-absorbing, kraft and fish-net paper from 70g to 100g.
Specifications published on the source page
| Machine model | SD-APH600 |
|---|---|
| Max material width | 508mm (508mm/20inch and 380mm/15inch width most) |
| Machine working speed | 0-200m/min adjustable |
| Unwinding diameter | 0-1200mm |
| Rewinding diameter | 0-300mm |
| Unwinding stand weight | 1 Ton |
| Machine size | 3500*1640*1800mm(LWH) |
| Machine weight | 1800KG |
| Power supply | 380V 3 Phase |
