Hall of carbon fibre winding machines
Winding equipment

MS209A dual-head turret winder

A compact winder for carbon fibre tow from 3K to 60K. It lays three layers by precision cross-winding onto 76.2 mm paper tubes, changes over automatically on its turret and counts length on each of its two heads — useful on pilot lines and in plants short of floor space.

Speed2–15 m/min
Tow range3–60K (others on request)
Traverse / package diameter≤ 250 mm each
Package weight≤ 12 kg
Tube76.2 mm ID × 280 mm long, pneumatic expansion shaft
Tension & ratioElectronically set
Power, weight, dimensionsNot published — confirmed per order
Request a quoteOfficial product page

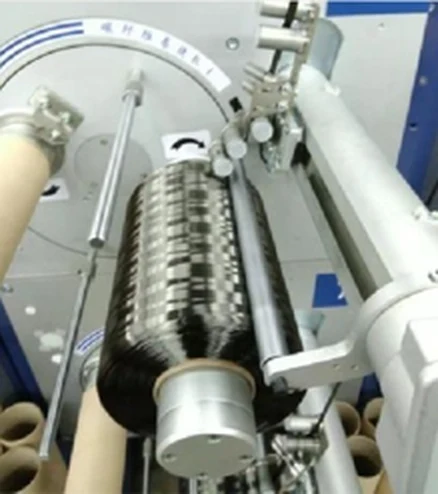

Close-up of a winding head and yarn guide

Why buyers choose it

  • Automatic changeover removes manual doffing, where tow is most often crushed or soiled
  • Each head starts and stops on its own, so one can be serviced while the other runs
  • Alarms flag yarn breaks and faults per head
  • Hook cutter and yarn-hanging parts are simple to replace
  • Can be upgraded with automatic paper-tube cutting

Compared with the KS1009 (0–400 m/min, up to 300 kg packages, single layer), the MS209A is the choice when package precision matters more than throughput.
