Voltage Relay
Intermediate, current, voltage, time, latching, level control, thermal and solid state relays, plus AFDD protection.
| Category | Industrial Relays |
| Type | Voltage Relay |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Applications
Function Features

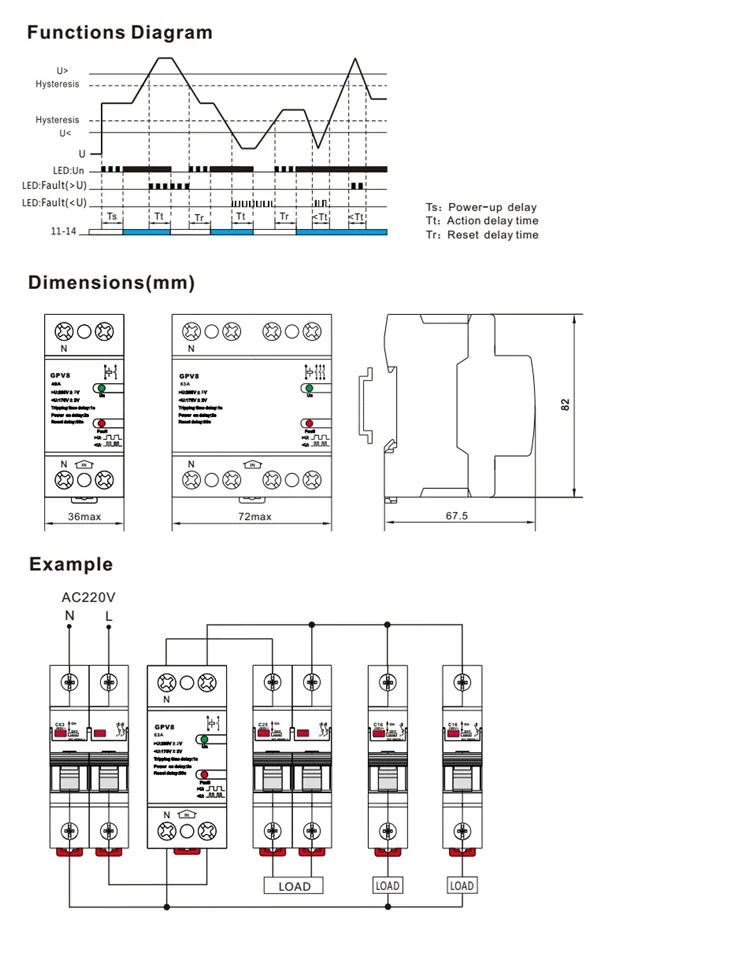

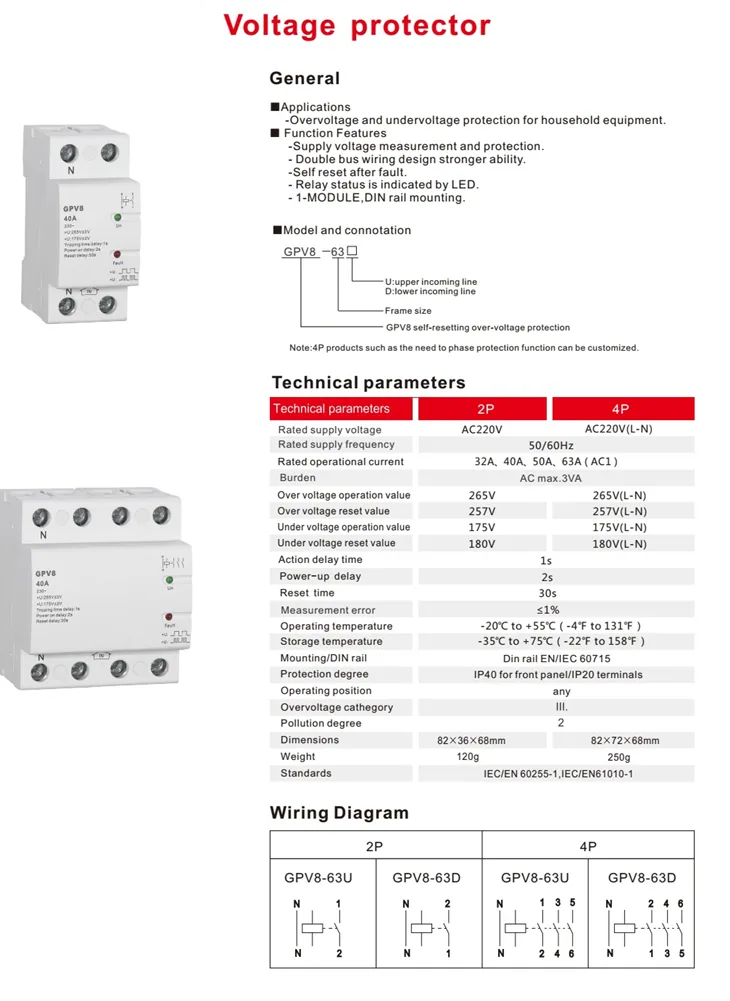

Technical Data
Electrical features
| Model NO | GPV8 2P & 4P |
|---|---|
| Function | Automatic Over Under Voltage Protection |
| Voltage Range | AC220V |
| Burden | AC max. 3VA |
| Over voltage operation value | 265V |
| Over voltage reset value | 257V |
| Under voltage operation value | 175V |
| Under voltage reset value | 180V |
| Action delay time | 1s |
| Power- up delay | 2s |
| Reset time | 30s |
| Measurement error | ≤1% |
| Rated Frequency | 50/60HZ |
| Rated Current | 32A 40A 50A 63A |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 60255-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
