Intermediate Relay
Intermediate, current, voltage, time, latching, level control, thermal and solid state relays, plus AFDD protection.
| Category | Industrial Relays |
| Type | Intermediate Relay |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Applications
strengthen or multiplying contacts of the existing device.
Function Features

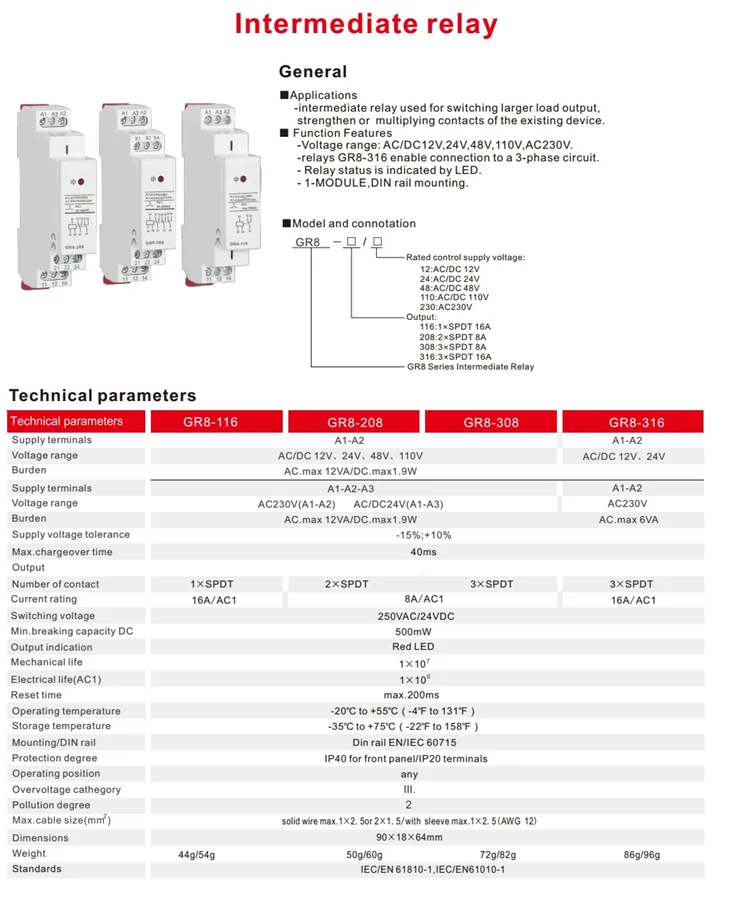

Technical Data
Electrical features
| Product Name | Intermediate Relay Auxiliary Relay |
|---|---|
| Model NO GR8-116 | 1 SPDT |
| Model NO GR8-208 | 2 SPDT |
| Model NO GR8-308 | 3 SPDT |
| Model NO GR8-316 | 3 SPDT |
| Function | Switching larger load output |
| Voltage Range | AC/DC 12V 24V 48V 110V, AC230V |
| Supply Terminals | A1-A2-A3 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 8A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
