Time Relay
Intermediate, current, voltage, time, latching, level control, thermal and solid state relays, plus AFDD protection.
| Category | Industrial Relays |
| Type | Time Relay |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |

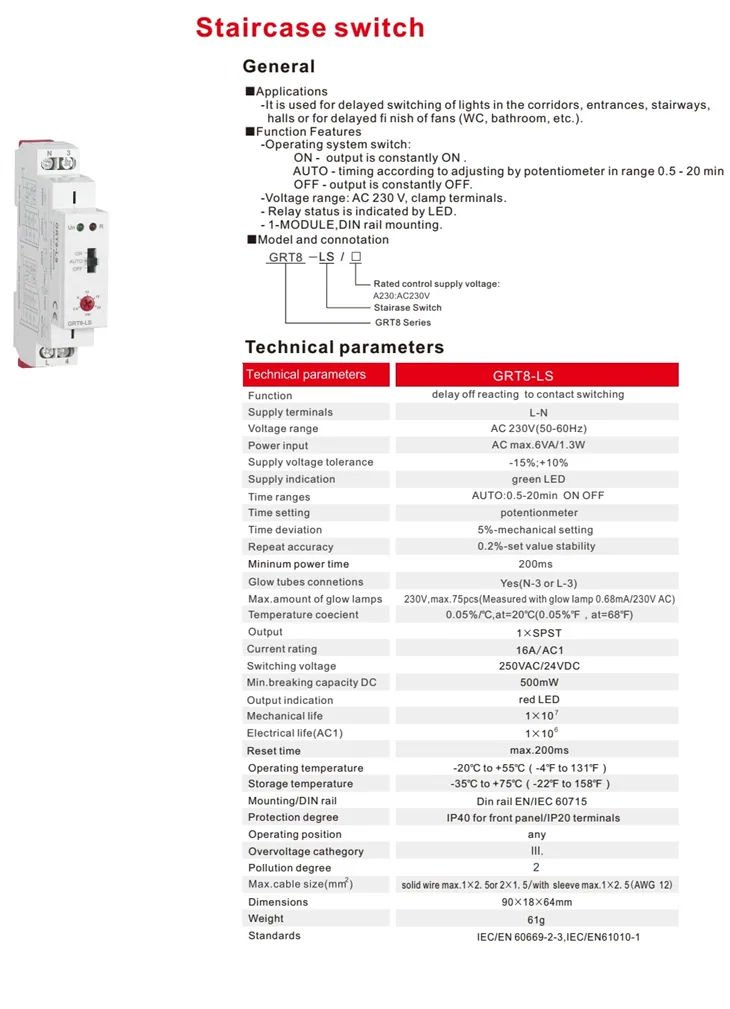

Applications
halls or for delayed fi nish of fans (WC, bathroom, etc.).
Function Features
ON - output is constantly ON .
AUTO - timing according to adjusting by potentiometer in range 0.5 - 20 min
OFF - output is constantly OFF.
Technical Data
Electrical features
| Model NO | GRI8 |
|---|---|
| Function | Current Monitoring Relay |
| Voltage Range | AC/DC24V-240V OR DC24V |
| Output | 1 SPDT |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 10A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
