Voltage Relay
Intermediate, current, voltage, time, latching, level control, thermal and solid state relays, plus AFDD protection.
| Category | Industrial Relays |
| Type | Voltage Relay |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Applications
Function Features
Technical Date
Electrical features

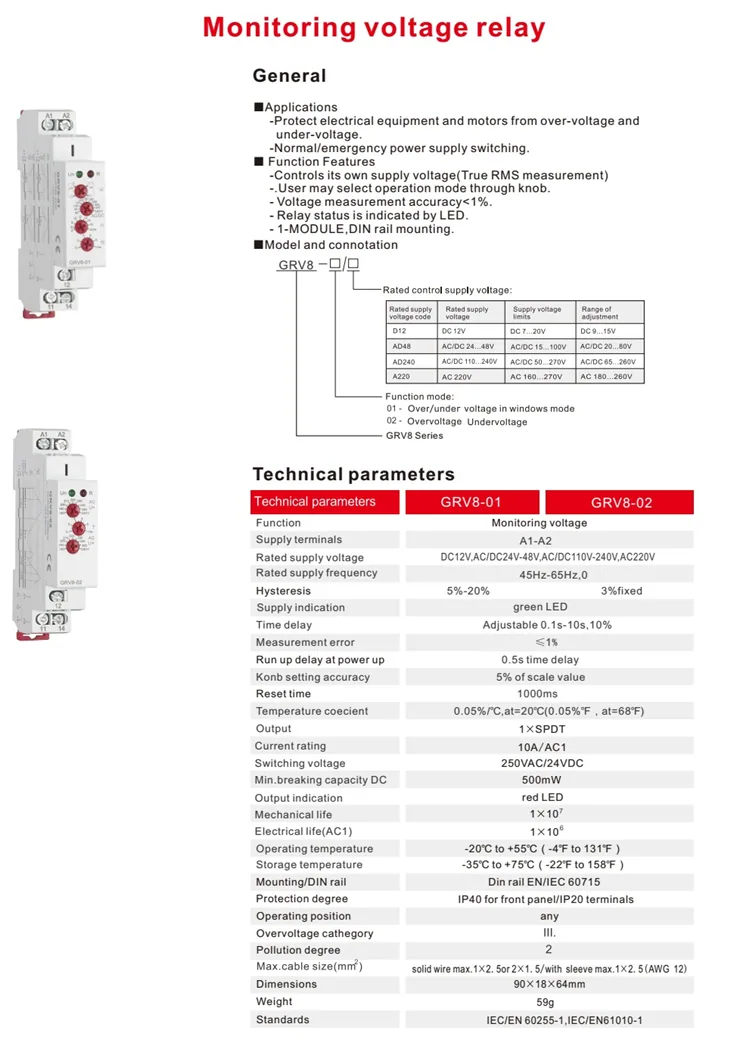

| Product Name | Single Phase Monitoring Voltage Relay |
|---|---|
| GRV8-01 | Function: Overvoltage or Undervoltage |
| GRV8-02 | Function: Overvoltage & Undervoltage |
| Voltage Range | AC/DC12-240V DC12V AC/DC24-48V AC220V |
| Supply Terminals | A1-A2 |
| Output | 1SPDT |
| Current Rating | 10A/AC1 |
| Voltage Range | 50/60HZ |
| Time Delay | Adjustable 0.1s-10s (10%) |
| Reset Time | 1000ms |
| Standard | EN 60255-1,IEC60947-5-1 |
| Protection Degree | IP40 for Front Panel, IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Certifications | CE CB |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
