Modified Sine Inverter
Pure sine wave and modified sine inverters and solar DC surge protection.
| Category | Solar and Inverters |
| Type | Modified Sine Inverter |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Modified sine wave power inverter From 300W-3000W

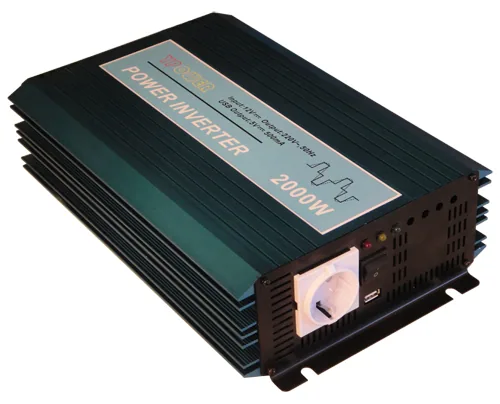

Product Name: 2000W Modified sine wave power inverter
Model: YP-2000M
Color: Black / Blue
Minimum order: 10 Pieses
Delivery Lead Time: 15 Days
Delivery FOB port: Nongbo Port
Payment Condition: T/T
Detail Specifications
Continue Power: 2000 W
Max. Output Surge:4000 W
DC Input Voltage: 12V or 24V or 36v or 48V
AC Output Voltage: 100V / 110V / 115V / 120V / 200V/ 220V / 230V / 240V to be selected
Diamensions(mm): 360 x 217 x 88
Weight (kg) : 4.0 kgs
| ‧ Output Receptacles: |
|---|
| ‧ Features : |
|---|
Digital microprocessor design
Short circuit alarm and protection
Overload alarm and protection
Reverse polarity protection
Intelligent over temperature alarm and shutdown
High and low battery voltage alarm and shutdown
Intelligent disperses heat system
High surge capacity for starting demanding loads
Stable output voltage and frequency
Low no load current draw
Advanced SMT technology
Modified Sine Wave output
| ‧ Scope of Application : |
|---|
Computers, medical instruments, cash registers, TVs, DVD players, audio equipment, fax machines, limousines, buses, RVs, air-pumps, various types of light duty motors, etc.
| ‧ YP-2000M Specifications: |
|---|
| Model | YP-2000M12 | YP-2000M24 | |||
|---|---|---|---|---|---|
| Output | Continuous output | 2000W | |||
| Surge Power | 4000W | ||||
| Voltage | 100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V to be selected | ||||
| Regulation | Vrms ± 8% | ||||
| Frequency | 50 Hz or 60Hz ± 1% | ||||
| Wave Form | Modified Sine Wave | ||||
| Input | Voltage | 12V | 24V | ||
| Low Battery | 10.5V ± 0.3V Alarm 10V ± 0.3V Shutdown | 21V ± 0.4V Alarm 20V ± 0.4V Shutdown | |||
| High Battery | Over 15V alarm sounds and shutdown | Over 30V alarm sounds and shutdown | |||
| No load current(A) | 1.5 amp | ||||
| Efficiency | Over 90% | ||||
| Protection | High temperature | ＜ 40 ℃ Restart ＞ 65 ℃ shutdown | ＜ 40 ℃ Restart | ＞ 65 ℃ shutdown | |
| ＜ 40 ℃ Restart | |||||
| ＞ 65 ℃ shutdown | |||||
| Short-circuit | Yes | ||||
| Overload | Yes | ||||
| Cooling Fan | ＞ 45 ℃ cooling fan turns on ＜ 40 ℃ cooling fan turns off | ||||
| Indicator | Audio Sound | bi (high temperature) bi—(Battery over voltage shutdown) bi-bi—(low battery shutdown) bi-bi-bi—(overload) | |||
| Visual | Normally : Green LED Over Temperature : Yellow LED Exceptionally : Red LED | ||||
| Mechanical | Dimensions (mm) | 360 (D) x 217 (W) x 88 (H) | |||
| Weight | 4.0 kgs | ||||
Model
Output
Continuous output
Surge Power
Voltage
100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V to be selected
Regulation
Vrms ± 8%
Frequency
50 Hz or 60Hz ± 1%
Wave Form
Modified Sine Wave
Input
Voltage
Low Battery
10V ± 0.3V Shutdown
21V ± 0.4V Alarm
20V ± 0.4V Shutdown
High Battery
Over 15V alarm sounds and shutdown
Over 30V alarm sounds and shutdown
No load current(A)
Efficiency
Over 90%
Protection
High temperature
| ＜ 40 ℃ Restart |
|---|
| ＞ 65 ℃ shutdown |
＜40℃ Restart
＞65℃ shutdown
Short-circuit
Yes
Overload
Yes
Cooling Fan
＞45℃ cooling fan turns on
＜40℃ cooling fan turns off
Indicator
Audio Sound
bi (high temperature)
bi—(Battery over voltage shutdown)
bi-bi—(low battery shutdown)
bi-bi-bi—(overload)
Visual
Normally : Green LED Over Temperature : Yellow LED Exceptionally : Red LED
Mechanical
Dimensions (mm)
360 (D) x 217 (W) x 88 (H)
Weight
