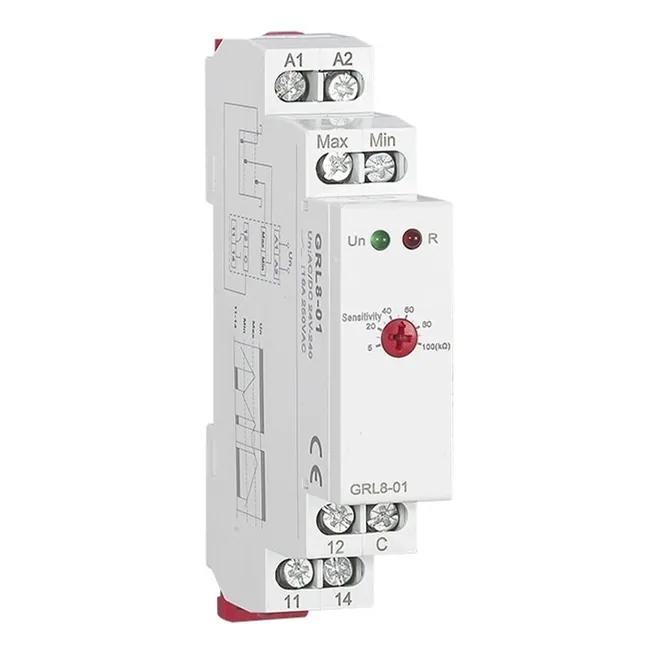

Level Control Relay
Intermediate, current, voltage, time, latching, level control, thermal and solid state relays, plus AFDD protection.
| Category | Industrial Relays |
| Type | Level Control Relay |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Applications
Function Features

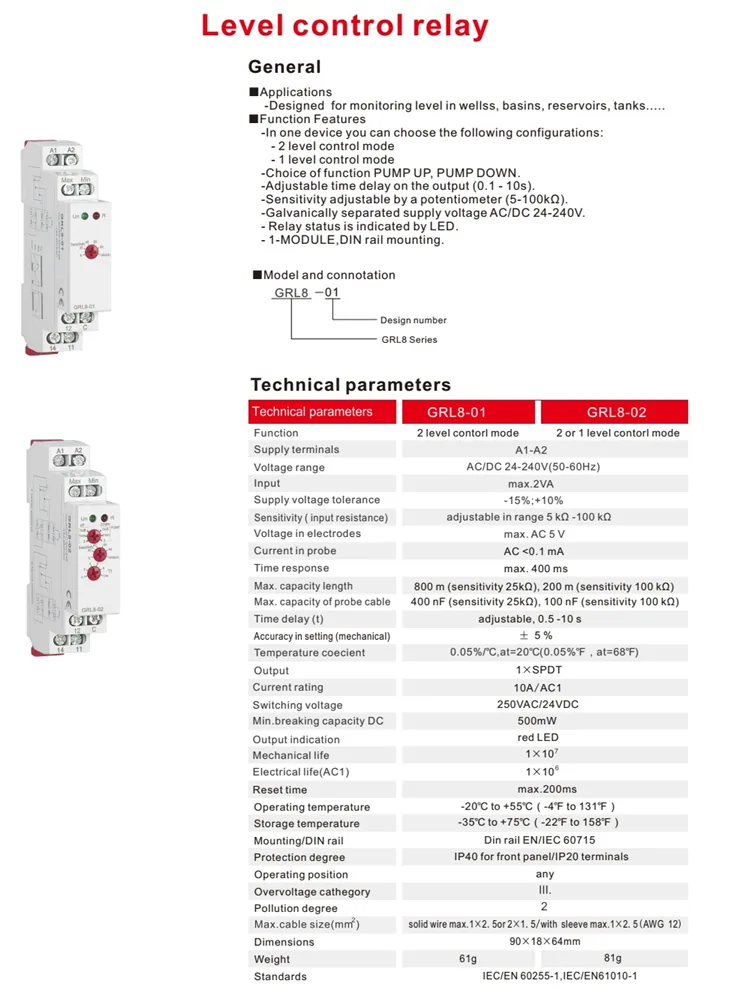

Technical Data
Electrical features
| Product N ame | Level Con trol Relay |
|---|---|
| GR L8-01 | 2 Level Control M ode (Adjust Sensitivity) |
| GRL 8-02 | 2 or 1 Leve l Control Mode (Pump up/down) |
| Functi on | Water Pum p Controller |
| Volta ge Range | AC/DC 24V-240V |
| Out put | 1 S PDT |
| Supply Termin als | A1-A 2 |
| Supply Voltage Toler ance | -15% +10% |
| Time Se tting | Potentio nmeter |
| Supply Indicat ion | Green LED |
| Output In dication | Red LED |
| Rated Fr equency | 50/6 0HZ |
| Rated Curre nt | 16A /AC1 |
| Protection De gree | IP40 fo r front Panel / IP20 for Terminals |
| Weight/ pcs | 0.1KG/ PCS |
| Standar d | EN 6181 2-1,IEC60947-5-1 |
| Certifica tions | CE CB CCC TUV |
| Warran ty/guarantee | 18m onths |
| MO Q | 1P CS |
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
