Time Relay
Intermediate, current, voltage, time, latching, level control, thermal and solid state relays, plus AFDD protection.
| Category | Industrial Relays |
| Type | Time Relay |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Applications
circulating pumps, noon signs, etc.
Function Features
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h
/ 1 hrs - 10 hrs / 0.1 day - 1 day /1 day - 10 days /3 days - 30 days /
10 days - 100 days).

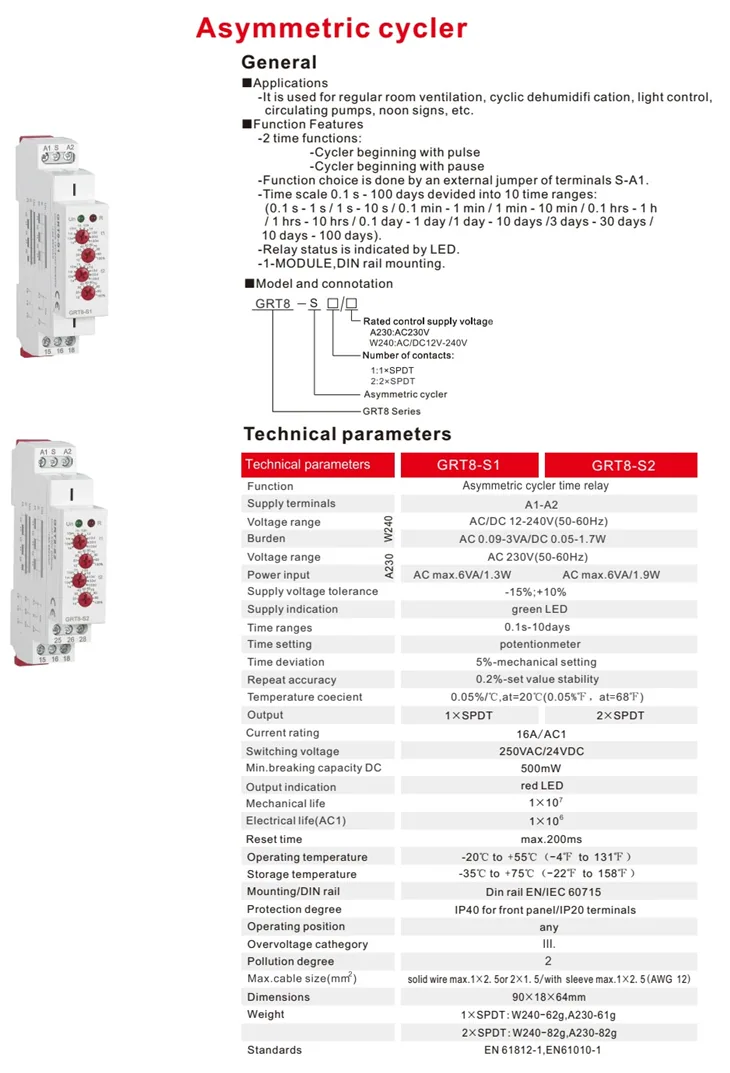

Technical Data
Electrical features
| Model NO | GRT8-S1 OR GRT8-S2 |
|---|---|
| Function | Asymmetric Cycler Timer Relay |
| Voltage Range | AC230V (A230) OR AC/DC12V-240V (W240) |
| Output | 1 SPDT OR 2 SPDT |

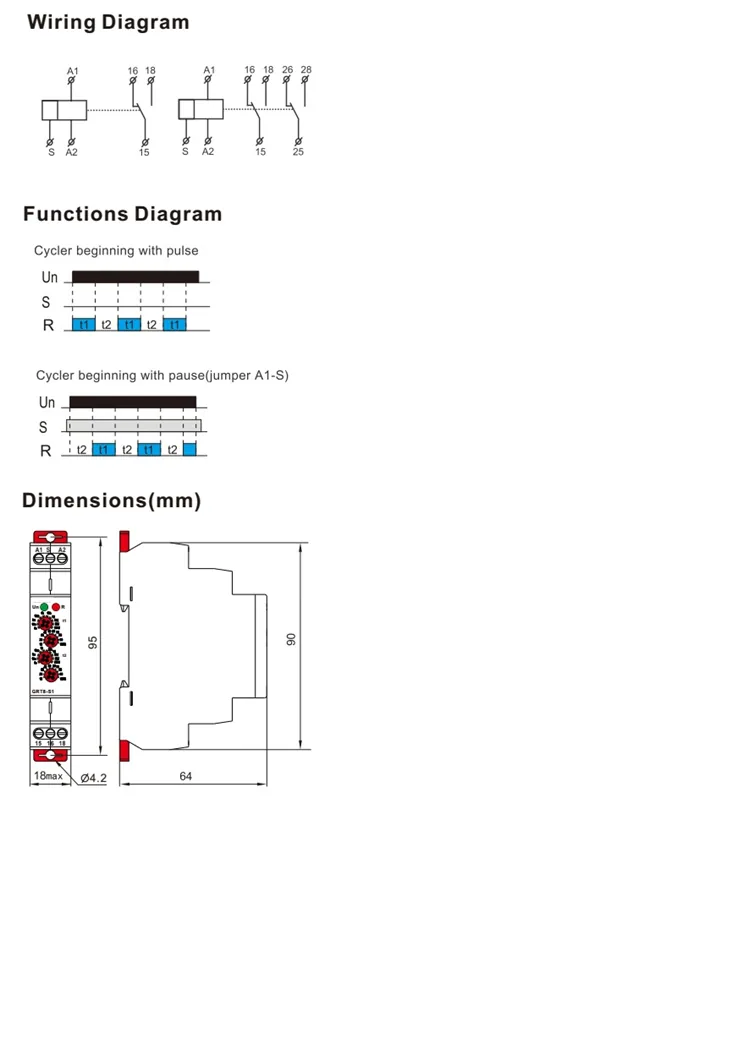

| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
