YSO(Ce) scintillation crystal

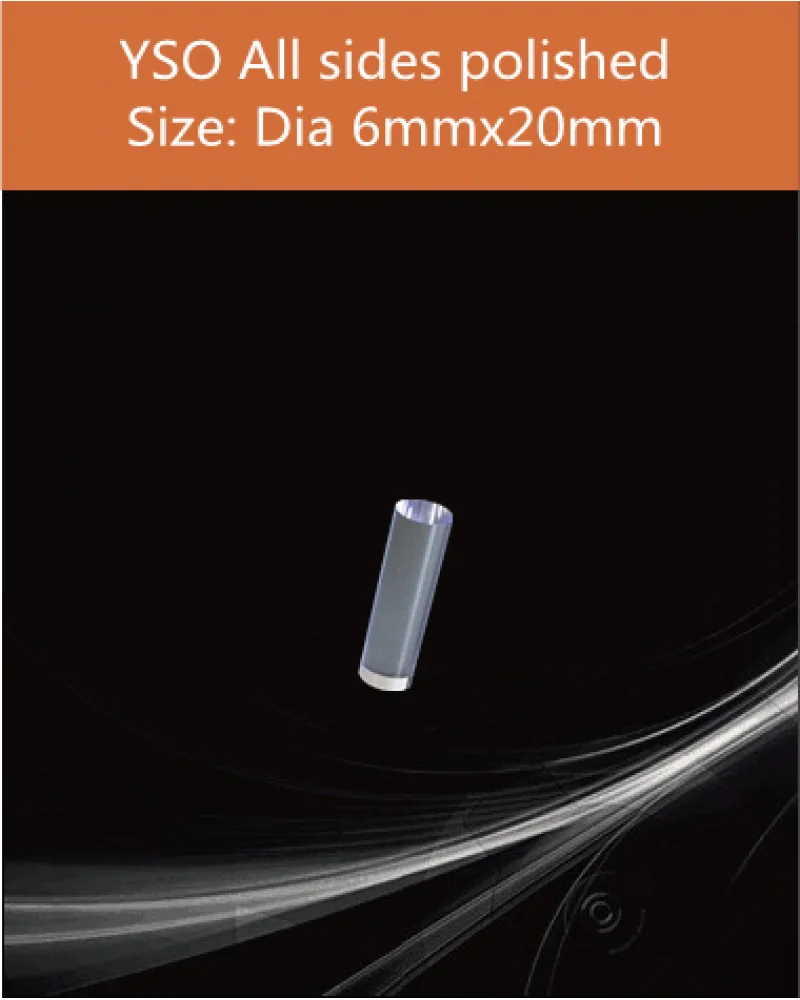

YSO(Ce) dia 6 x 20mm
YSO Ce scintillation crystal, Cerium doped Silicate Yttrium scintillation crystal, YSO Ce scintillator, YSO Ce crystal, dia 6 x 20mm
$120.00
List price published by the factory; confirmed on quotation.
Item Details
| Dimension | dia 6mm x 20 mm (thickness) |
|---|---|
| Polish | all sides polished |
| Tolerance | ±0.02 mm |
| List price | $120.00 |
| Made in | Kunshan, Jiangsu, China |
Specification
- Dimension: dia 6mm x 20 mm (thickness)
- Polish: all sides polished
- Tolerance: ±0.02 mm
Features
- High light output
- Relatively short decay time
- High density and anti-radiation hardness
- Stable chemical and physical properties
Main Applications
- Radiation detection
- Security industry
- Semiconductor
- Photo optic applications
YSO Scintillator Description
Cerium doped Silicate Yttrium scintillation crystal (YSO ce scintillator) belongs to monoclinic rare earth orthosilicate crystal, YSO Scintillation Crystal emits 420 nm light and couples well with PMT under the stimulation of high energy. It also has the advantage of high light yield, short decay time, and high density, non-deliquescence, and all around stable physical and chemical properties.
Customized YSO Scintillation Crystal
Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.
For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
Related YSO(Ce) Items
All 38 in YSO(Ce)
Questions About YSO(Ce) dia 6 x 20mm
Answers based on the information published by EPIC Crystal. Anything not listed here should be confirmed with our sales team.
What is YSO(Ce) dia 6 x 20mm?
YSO(Ce) dia 6 x 20mm is a YSO(Ce) scintillation crystal from Epic Crystal Company Limited, Dimension: dia 6mm x 20 mm (thickness).
What is the listed price and minimum quantity?
The list price published for this item is $120.00. Prices are confirmed on quotation.
Can this be made in another size or finish?
Yes. Cutting, lathing, grinding, polishing and array assembly are in-house, so a different dimension, surface finish, reflector coating or array layout can be quoted from your drawing.
How do I order YSO(Ce) dia 6 x 20mm?
Email [email protected] with the item and quantity, or call +86 512-5013-5884.
Quote YSO(Ce) dia 6 x 20mm
Send the material, the dimensions, the surface finish and the quantity you need. Custom shapes, arrays and reflector coatings are part of what we do.
